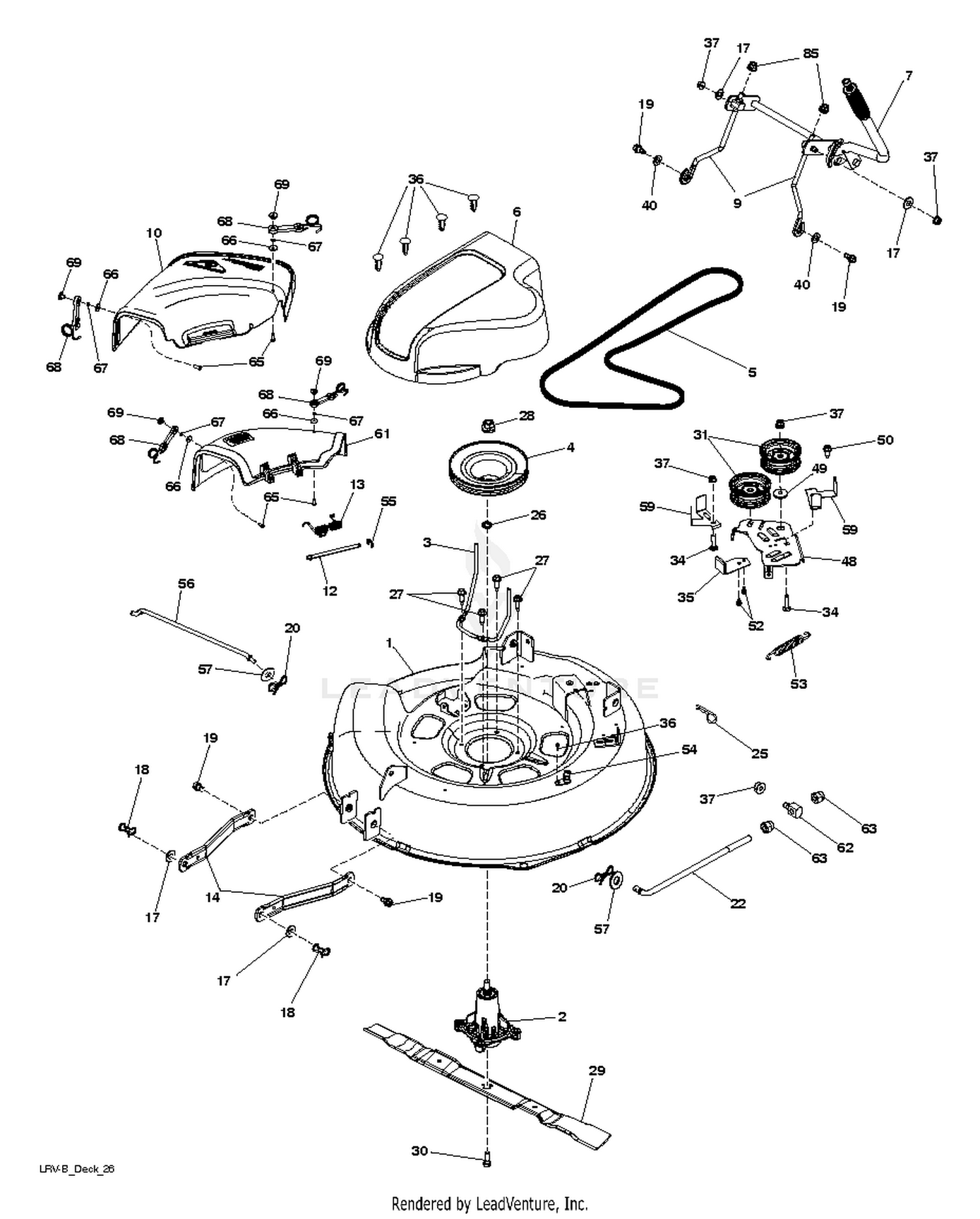

| Ref | Part Number | Description |
|---|
| 1 |
1940385 |
Frame Price: Call Us |
| 1 |
584468302 |
DECK.SVCX1.LRV.30 Price: $149.99 |
| 2 |
1946434 |
Brushes Price: Call Us |
| 2 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192870. Price: $32.99 |
| 3 |
1926618 |
Holder (Insulated) Price: Call Us |
| 3 |
584444502 |
KEEPER.LRV.GEN2.MANDREL.BELT Price: $3.99 |
| 4 |
1926622 |
Springs Price: Call Us |
| 4 |
584444402 |
PULLEY.LRV.GENS.MANDREL Price: $8.99 |
| 5 |
1940477 |
Holder (Ground) Price: Call Us |
| 5 |
584293701 |
V-BELT.MOWER.30.LRVB Price: $27.99 |
| 6 |
1938058 |
Brush Holder Pin Price: Call Us |
| 6 |
532436863 |
COVER.MANDREL.30".LRV.(B) Price: $44.99 |
| 7 |
1960864 |
Lead (Ground) Price: Call Us |
| 7 |
586580901 |
LIFT.SUBASM.DECK Price: $37.99 |
| 8 |
120361 |
Brush Holder Nut Price: Call Us |
| 9 |
453435 |
Lockwasher Price: Call Us |
| 9 |
584440804 |
LINKAGE LRVB GEAR DRIVE X431 Price: $5.99 |
| 10 |
1928015 |
Support Package Price: Call Us |
| 10 |
532439638 |
DEFLECTOR ASSEMBLY Price: $44.99 |
| 11 |
453468 |
Screw Price: Call Us |
| 12 |
1955946 |
Grommet Price: Call Us |
| 12 |
532436647 |
PIN.HINGE Price: $2.99 |
| 13 |
132255 |
Screw Price: Call Us |
| 13 |
532437462 |
SPRING.DOUBLE.TORSION.SPRING Price: $5.99 |
| 14 |
587581702 |
FRONT.DECK.LINK.PNT Price: $3.99 |
| 14 |
9421423 |
Lockwasher Price: Call Us |
| 15 |
1114356 |
Switch Price: Call Us |
| 16 |
1958679 |
Spring Plunger Price: Call Us |
| 17 |
1941113 |
Plunger Price: Call Us |
| 17 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.99 |
| 18 |
1951567 |
Lever Shift Price: Call Us |
| 18 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 19 |
455106 |
Lever Pin Price: Call Us |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
1932197 |
Lever Stud Price: Call Us |
| 20 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 21 |
1965225 |
Drive Housing (Incl. Bushing) Price: Call Us |
| 22 |
1926640 |
Nut Price: Call Us |
| 22 |
584977502 |
LINK.LRVB.30".FRONT.DECK.ADJ Price: $8.99 |
| 23 |
9421424 |
Lockwasher Price: Call Us |
| 24 |
1838568 |
Thrust Collar Price: Call Us |
| 25 |
1928022 |
Retainer Ring Price: Call Us |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 26 |
1928021 |
Collar Stop Price: Call Us |
| 26 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 27 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 27 |
809593 |
Pin Dowl Price: Call Us |
| 28 |
1941157 |
Drive Assembly Price: Call Us |
| 28 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 29 |
1913960 |
Screw Price: Call Us |
| 29 |
532419273 |
BLADE, MULCH.LRV30 Price: $11.99 |
| 30 |
1950417 |
Armature Price: Call Us |
| 30 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 31 |
1914842 |
Washer-Brake Price: Call Us |
| 31 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 32 |
1955951 |
Coil Assembly Price: Call Us |
| 33 |
274738 |
Screw Price: Call Us |
| 34 |
1887021 |
Pole Shoe Price: Call Us |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
1960908 |
Bolt Price: Call Us |
| 35 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 36 |
274875 |
Screw Price: Call Us |
| 36 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 37 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 40 |
819171616 |
Washer 17/32 x 1-1/6 x 13 Gauge (AYP part number) Price: $5.99 |
| 48 |
586843601 |
ADJUSTABLE CLUTCHING ARM This part replaces 586794101. Price: $6.99 |
| 49 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 50 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 52 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 53 |
585049101 |
SPRING.LRVB.CLUTCH.ARM Price: $1.99 |
| 54 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 55 |
532437988 |
E-RING.5/16" Price: $2.99 |
| 56 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $17.99 |
| 57 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 59 |
532436858 |
GUARD.TUV.IDLER.42 Price: $2.99 |
| 61 |
532437947 |
MULCH.COVER.ASSEMBLY.30" Price: $44.99 |
| 62 |
532176205 |
TRUNNION Price: $3.99 |
| 63 |
532175994 |
NUT, LIFT LINK 7/16-20 Price: $3.99 |
| 65 |
871081010 |
SCREW Price: $3.99 |
| 66 |
819061216 |
WASHER Price: $2.99 |
| 67 |
810071000 |
LOCKWASHER Price: $2.99 |
| 68 |
532160793 |
LATCH ASSY Price: $7.99 |
| 69 |
532002029 |
NUT.WELD.#10-24 (2 2) Price: $2.99 |
