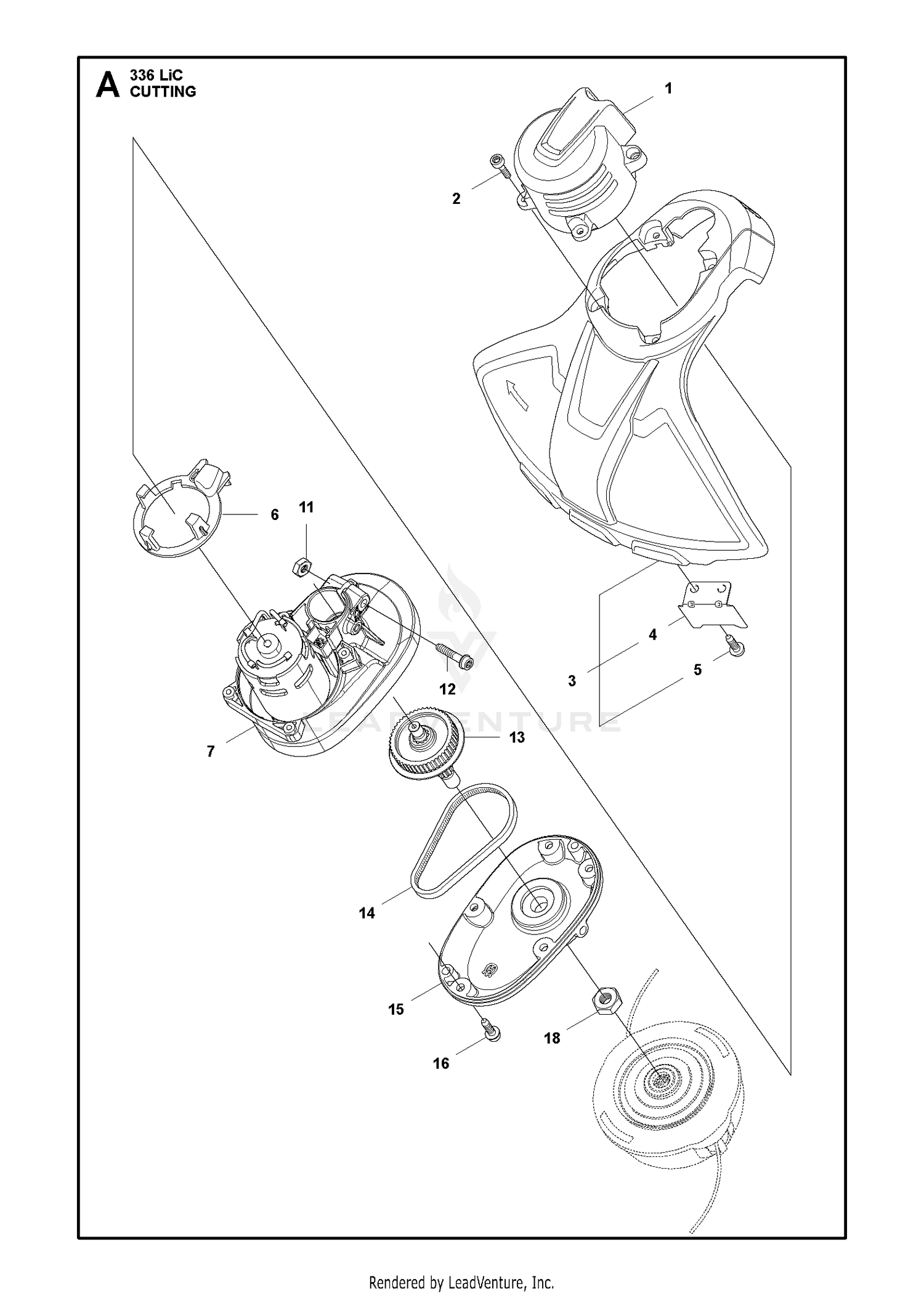

CUTTING EQUIPMENT
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501699010 | TANK UNIT CPL Price: $119.99 |
| 1 | 577426201 | MOTOR COVER Price: $19.99 |
| 2 | 501519702 | SHAFT Price: $4.99 |
| 2 | 580292901 | SCREW ITXSCT PW4.2X18 10.9 ZN This part replaces 579211901. Price: $2.99 |
| 3 | 501528801 | SPRING Price: $3.99 |
| 3 | 577965101 | TRIMMER GUARD Price: $27.99 |
| 4 | 503445801 | THROTTLE ROD Price: $9.99 |
| 4 | 591083001 | BLADE LINE CUTTER This part replaces 574523401. Price: $2.99 |
| 5 | 501518002 | LEVER Price: $7.99 |
| 5 | 503210716 | SCREW Price: $2.99 |
| 6 | 501518102 | THROTTLE CATCH Price: $5.99 |
| 6 | 577727501 | INSULATION WALL Price: $4.99 |
| 7 | 501693901 | MOTOR,KIT Price: $129.99 |
| 7 | 721421226 | SPRING PIN 3X24 Price: $4.99 |
| 8 | 501424101 | SPRING Price: $3.99 |
| 9 | 721421226 | SPRING PIN 3X24 Price: $4.99 |
| 10 | 501431402 | TANK CAP Price: $11.99 |
| 11 | 501278201 | WASHER Price: $3.99 |
| 11 | 731231401 | NUT Price: $1.99 |
| 12 | 503200782 | SCREW IHSCFM Price: $3.99 |
| 12 | 503578901 | TANK LOCK Price: $4.99 |
| 13 | 577989501 | BLADE SHAFT Price: $27.99 |
| 15 | 577426001 | COVER Price: $19.99 |
| 15 | 581756205 | FUEL HOSE This part replaces 581756201. Price: $9.99 |
| 16 | 503216816 | SCREW Price: $2.99 |
| 16 | 591375401 | KIT FUEL FILTER This part replaces 503443201. Price: $8.99 |
| 17 | 501629601 | VALVE Price: $11.99 |
| 18 | 578789301 | NUT Price: $3.99 |
