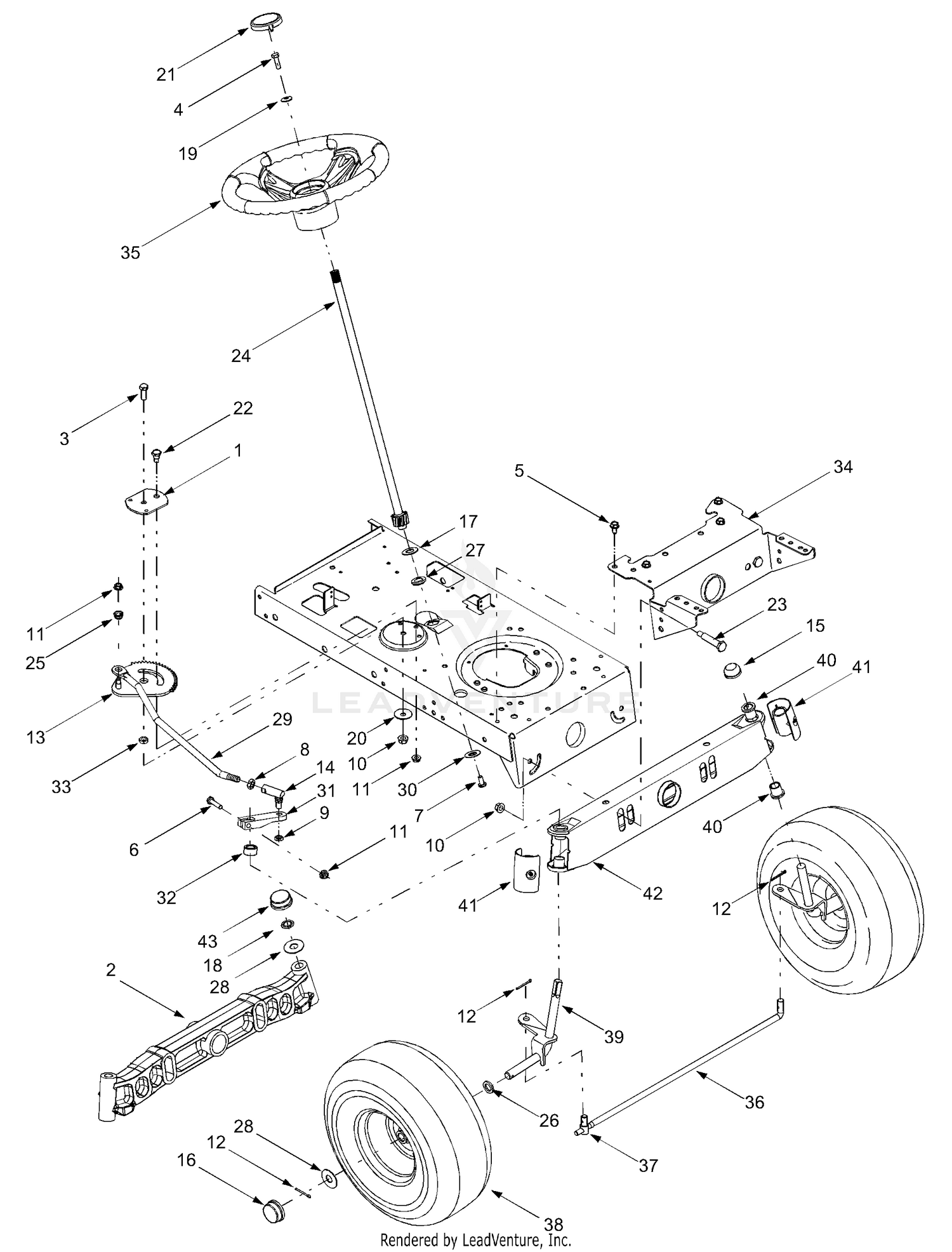

| Ref | Part Number | Description |
|---|
| 1 |
783P08577A |
STABILIZER PLATE This part replaces 17198A. Price: $6.48 |
| 2 |
719-0399B |
CAST PIVOT BAR AXLE Not Available Price: |
| 3 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 4 |
710-0643 |
Hex Cap Screw, 5/16-18 x 1.0 Price: $5.99 |
| 5 |
710-0726 |
Self-tapping Screw, 5/16-12 x .75 Price: $3.82 |
| 6 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 7 |
710-1309 |
Machine Screw, 5/16-18 x .75 Price: $3.86 |
| 8 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 This part replaces 712-0240. Price: $3.90 |
| 9 |
712-0262 |
Jam Nut, 3/8-24 Price: $3.90 |
| 10 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 11 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 12 |
714-0470 |
Cotter Pin, 1/8 x 1.25 Price: $3.90 |
| 13 |
717-1757A |
Stearing Segment Gear Price: $46.77 |
| 14 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 15 |
726-0214 |
Push Cap, .625 Price: $9.11 |
| 16 |
931-0484A |
HUB CAP-BLACK This part replaces 731-0484A. Price: $5.98 |
| 17 |
736-0187 |
Flat Washer, .64 x 1.24 x .060 Price: $4.02 |
| 18 |
712-04016 |
Push Nut This part replaces 726-04028. Price: $6.01 |
| 19 |
736-0242 |
Bell Washer, .34 x .872 x .060 Price: $3.75 |
| 20 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 21 |
731-04681 |
Steering Wheel Cap, Small, Troy-Bilt Price: $12.40 |
| 22 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 23 |
738-0527 |
Shoulder Screw, .498 x 2.045 Price: $7.90 |
| 24 |
738-0919B |
Steering Shaft This part replaces 738-0919. Price: $51.87 |
| 25 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 26 |
736-0162 |
Flat Washer, .64 x 1.0 x .12 Price: $3.86 |
| 27 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656. Price: $4.69 |
| 28 |
736-0285 |
Flat Washer, .635 x 1.589 x .06 Price: $3.89 |
| 29 |
747-1268B |
STEERING DRAG LINK Not Available Price: |
| 30 |
948-0389 |
Cap, 1.25 x .16 This part replaces 748-0389. Price: $4.40 |
| 31 |
948-04014B |
STEERING ARM Not Available This part replaces 748-04014B. Price: |
| 32 |
948-04020 |
Spacer, 1.0 x .645 x .56 This part replaces 748-04020. Price: $6.30 |
| 33 |
950-0535 |
Spacer, .380 ID x .625 OD x .21 This part replaces 750-0535. Price: $3.90 |
| 34 |
783-0041D |
PIVOT BAR BRACKET Not Available Price: |
| 35 |
631-04028 |
Steering Wheel, Three Spoke Price: $64.50 |
| 36 |
747-04057 |
TIE ROD (ADJUSTABLE) Not Available Price: |
| 37 |
911-04059 |
FERRULE 3/8-24X.437 Not Available This part replaces 711-04059. Price: |
| 38 |
634-0105B |
Wheel Assembly (Model D609G) Not Available This part replaces 634-0105A. Price: |
| 40 |
741-0487C |
FLANGE BEARING This part replaces 741-0487A. Price: $6.87 |
| 41 |
731-04058 |
AXLE CAP Not Available Price: |
| 42 |
683-0002B-0637 |
PIVOT BAR ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-0002A. Price: |
