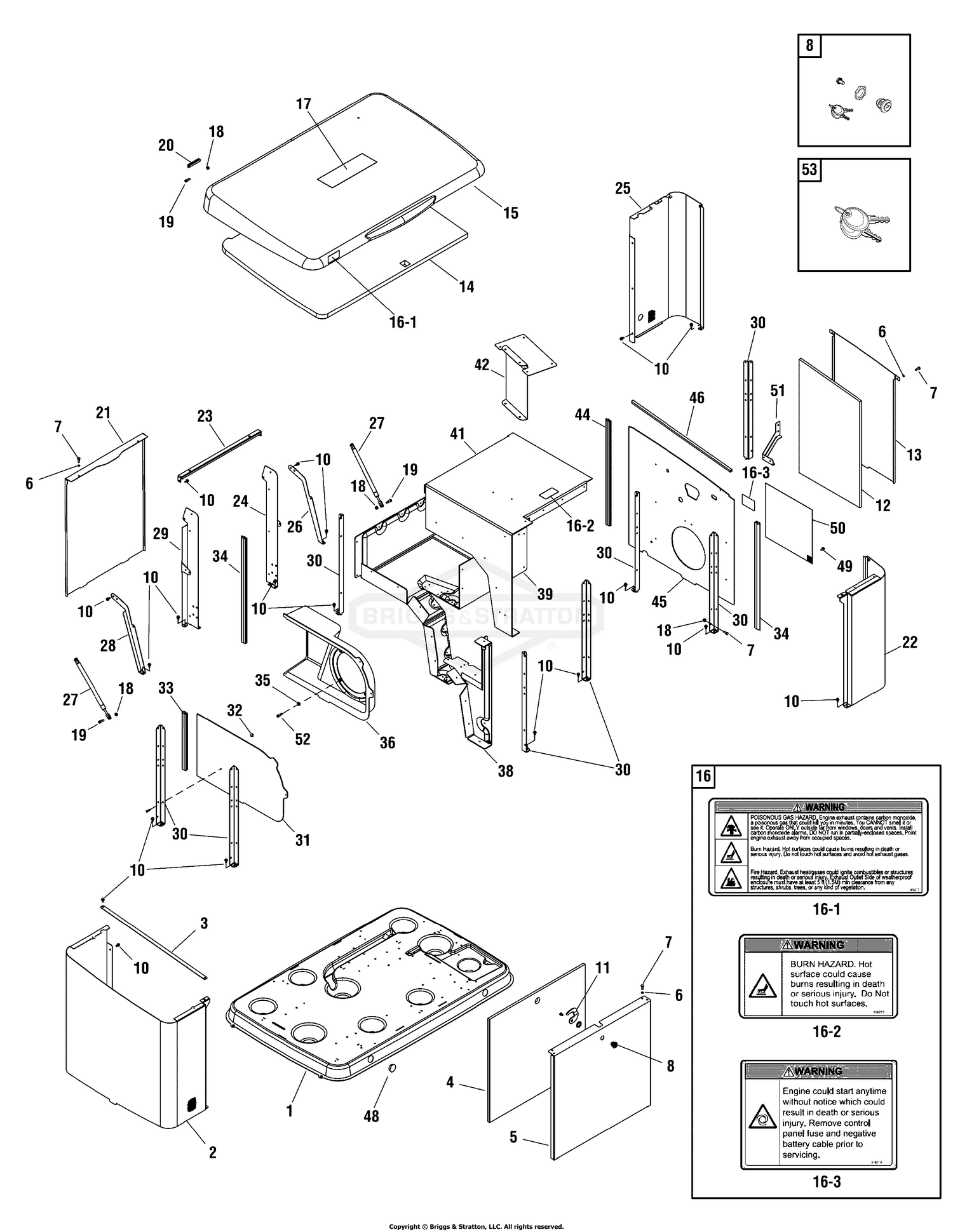

Enclosure Group

Enclosure Group

Parts (45)

RefPart NumberDescription
1 706061 BASE This part replaces B314636GS. Price: $672.32
2 AN314645GS PANEL, End, Left Price: $511.19
3 314638GS SUPPORT, Rail Price: $23.92
4 315447GS INSULATION Price: $136.74
5 318244GS PANEL, Front Price: $362.09
8 314619GS LATCH Price: $14.80
10 704130 SCREW, HEX, 1/4-20X.5 This part replaces B4300GS. Price: $3.28
11 315443GS LATCH, Arm Price: $5.91
12 315453GS INSULATION Price: $116.79
13 AN314694GS PANEL, End, Right Price: $255.59
14 315452GS INSULATION Price: $253.53
15 318233GS ROOF Price: $798.74
16 318449GS DECAL SHEET, Warnings Price: $19.14
17 317921GS DECAL Price: $4.09
19 311644GS SCREW Price: $6.95
20 316954GS TRIM Price: $5.11
21 AN314651GS PANEL, Back Price: $165.06
22 AN314681GS PANEL, Corner Price: $197.01
23 314652GS SUPPORT, Rail Price: $59.25
24 314647GS BRACKET, Roof Support Price: $61.94
25 AN314644GS PANEL, Corner Price: $228.96
26 314646GS BRACE Price: $27.81
27 314649GS SHOCK, Roof Price: $11.61
28 314672GS BRACE Price: $28.63
29 314679GS BRACKET, Roof Support Price: $59.84
30 314625GS SUPPORT Price: $21.86
31 314684GS PANEL, Intake, Alternator Price: $64.94
32 314661GS CLIP Price: $4.60
33 314682GS SEAL Price: $17.18
34 311692GS SEAL Price: $25.26
35 71693GS WASHER, Fender Price: $2.69
36 314626GS DUCT, Alternator Price: $142.43
38 314624GS PANEL, Muffler Price: $74.06
39 314620GS PANEL, Muffler, Bottom Price: $78.62
41 314621GS PANEL, Muffler, Top Price: $88.87
42 706059 DEFLECTOR, Muffler Price: $66.89
44 316951GS SEAL Price: $27.51
45 314683GS PANEL, Intake, Engine Price: $142.43
46 316202GS TRIM Price: $11.61
48 198460GS PLUG Price: $2.83
49 194561GS SCREW Price: $2.79
50 316194GS SCREEN Price: $19.93
51 315444GS SUPPORT Price: $47.38
52 704130 SCREW, HEX, 1/4-20X.5 Price: $3.28
53 314290GS KEY, Latch Price: $11.04
