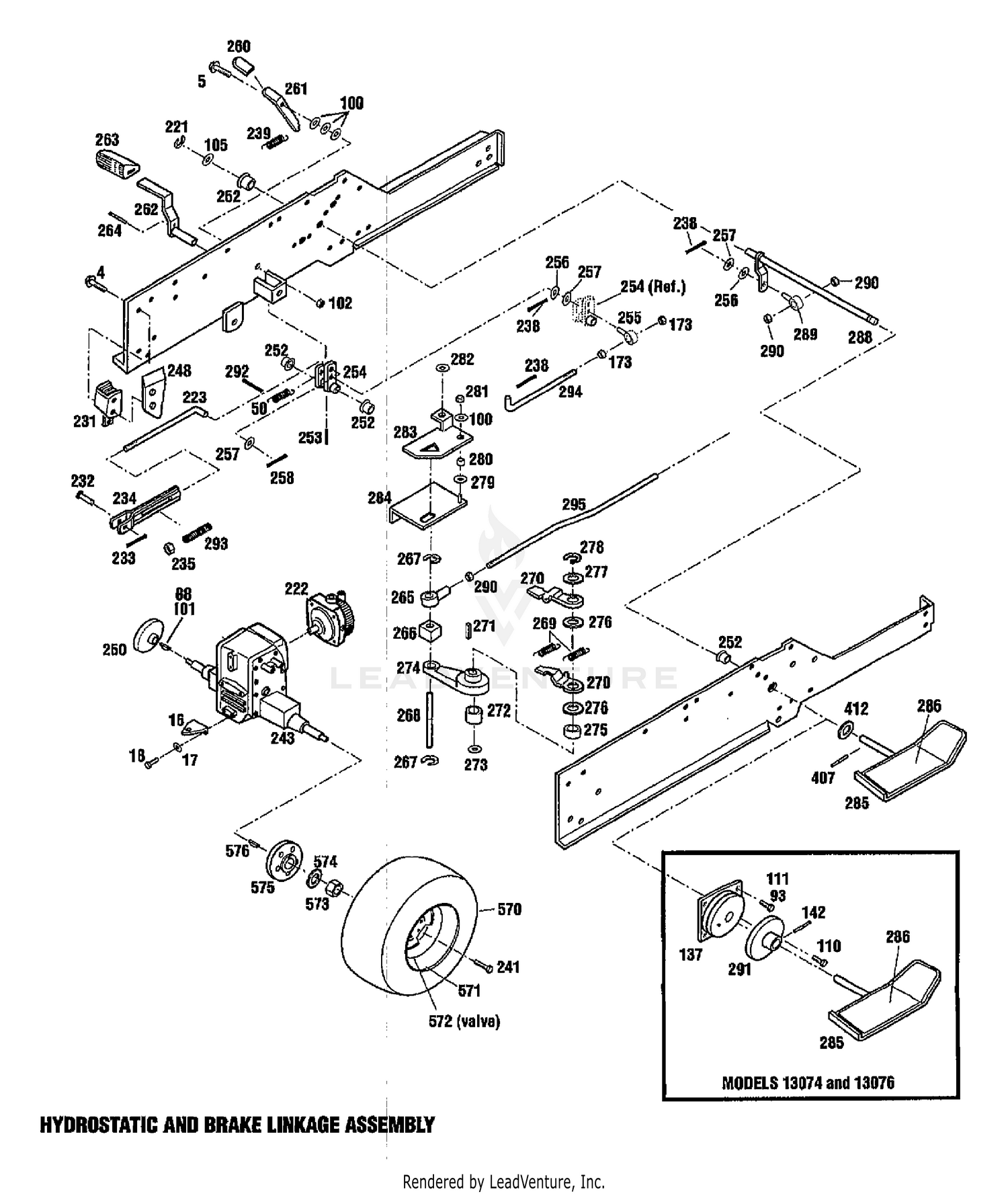

| Ref | Part Number | Description |
|---|
| 4 |
1186345 |
SCREW Not Available Price: |
| 5 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 16 |
1724698001 |
DRAWBAR HITCH Not Available Price: |
| 17 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 18 |
710-3032 |
Hex Cap Screw, 1/2-13 x 1.25 This part replaces 1100055. Price: $5.66 |
| 50 |
1746769 |
SPRING EXTENSION Price: $14.30 |
| 100 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 102 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 105 |
1715301 |
WASHER-1.115X.637X.06 Price: $8.45 |
| 110 |
1738463 |
SCREW Not Available Price: |
| 111 |
1185130 |
SCREW HEX Not Available Price: |
| 137 |
1738462 |
CLUTCH Not Available Price: |
| 142 |
915-0246 |
Pin, Spring, 3/16 x 1.25 Not Available This part replaces 1185232. Price: |
| 173 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 221 |
1118808 |
RETAINING RING Not Available Price: |
| 222 |
1774321P |
HYDRO PUMP Not Available This part replaces 1764708. Price: |
| 223 |
1757504 |
BRAKE ROD Not Available Price: |
| 231 |
1758869 |
ASSY BRAKE-CYLINDER Not Available Price: |
| 232 |
1757599 |
CLEVIS PIN Not Available Price: |
| 233 |
1187385 |
COTTER PIN Not Available Price: |
| 234 |
1768469 |
YOKE ASSEMBLY Not Available Price: |
| 235 |
1757246 |
NUT SPECIA Not Available Price: |
| 238 |
914-0507 |
Cotter Pin, 3/32 x .75 This part replaces 1100346. Price: $3.93 |
| 239 |
1726640 |
SPRING Not Available Price: |
| 241 |
0101085 |
BOLT-HUB Not Available Price: |
| 248 |
1757390001 |
BRKT-TRANS SUPPORT Price: Call Us |
| 252 |
1185802 |
BEARING-FL Not Available Price: |
| 253 |
715-0120 |
Spiral Pin This part replaces 1732147. Price: $9.14 |
| 254 |
1756812 |
ARM Not Available Price: |
| 255 |
1763814 |
SWIVEL Not Available Price: |
| 256 |
936-0117 |
FLAT WASHER This part replaces 1705108. Price: $6.20 |
| 257 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 258 |
714-0474 |
Cotter Pin This part replaces 1100349. Price: $4.08 |
| 260 |
1734553 |
GRIP Not Available Price: |
| 261 |
1771386001 |
LOCK-BRAKE Price: Call Us |
| 262 |
1755510 |
PEDAL BRAK Not Available Price: |
| 263 |
1728694 |
FOOT REST Not Available Price: |
| 264 |
1120209 |
ROLL PIN . Not Available Price: |
| 265 |
1721612 |
ROD END Not Available Price: |
| 266 |
1720699 |
BLOCK Price: Call Us |
| 267 |
1118802 |
RING-RETAI Not Available Price: |
| 268 |
1734563 |
CONTROL PIN Not Available Price: |
| 269 |
1720928 |
EXTENSION SPRING Not Available Price: |
| 270 |
1720523 |
ARM NEUTRALIZER Not Available Price: |
| 271 |
1104435 |
KEY-WOODRUFF 1/8 x 5/8 Not Available Price: |
| 272 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 273 |
912-0384 |
Hex Lock Nut, 1/2-13 This part replaces 1110110. Price: $6.07 |
| 274 |
1722151 |
SPEED CONTROL ARM Not Available Price: |
| 275 |
1720706 |
BEARING Not Available Price: |
| 276 |
1720361 |
THRUST WASHER Not Available Price: |
| 277 |
736-0246 |
FLAT WASHER 1.25 ID x 2.0 OD x .060 Not Available This part replaces 1720529. Price: |
| 278 |
1185732 |
RING-RET Not Available Price: |
| 279 |
1703052 |
WASHER-1.75X.39X.0 Not Available Price: |
| 280 |
1732369 |
SPACER-.62 Not Available Price: |
| 282 |
736-0159 |
Washer This part replaces 1100254. Price: $3.71 |
| 283 |
1729213 |
PLATE Not Available Price: |
| 284 |
1729445 |
PLATE Not Available Price: |
| 285 |
1766085001 |
ASSM-PEDAL HYDRO Not Available Price: |
| 286 |
1766202 |
FOOT PAD PEDAL Not Available Price: |
| 288 |
1770201 |
WELD SHAFT Not Available Price: |
| 289 |
1751848 |
SWIVEL Not Available Price: |
| 290 |
1186246 |
NUT-JAM:SPECIAL Not Available Price: |
| 292 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 294 |
1759491 |
BRAKE ROD CONTROL Not Available Price: |
| 295 |
1747514 |
ROD-SPEED Not Available Price: |
| 407 |
N/A |
UNKNOWN |
| 572 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
| 573 |
1120390 |
NUT-HK 3 Not Available Price: |
| 574 |
1708599 |
SPACER-1.812X.765X Not Available Price: |
| 576 |
1100281 |
KEY-WOODRU Not Available Price: |
