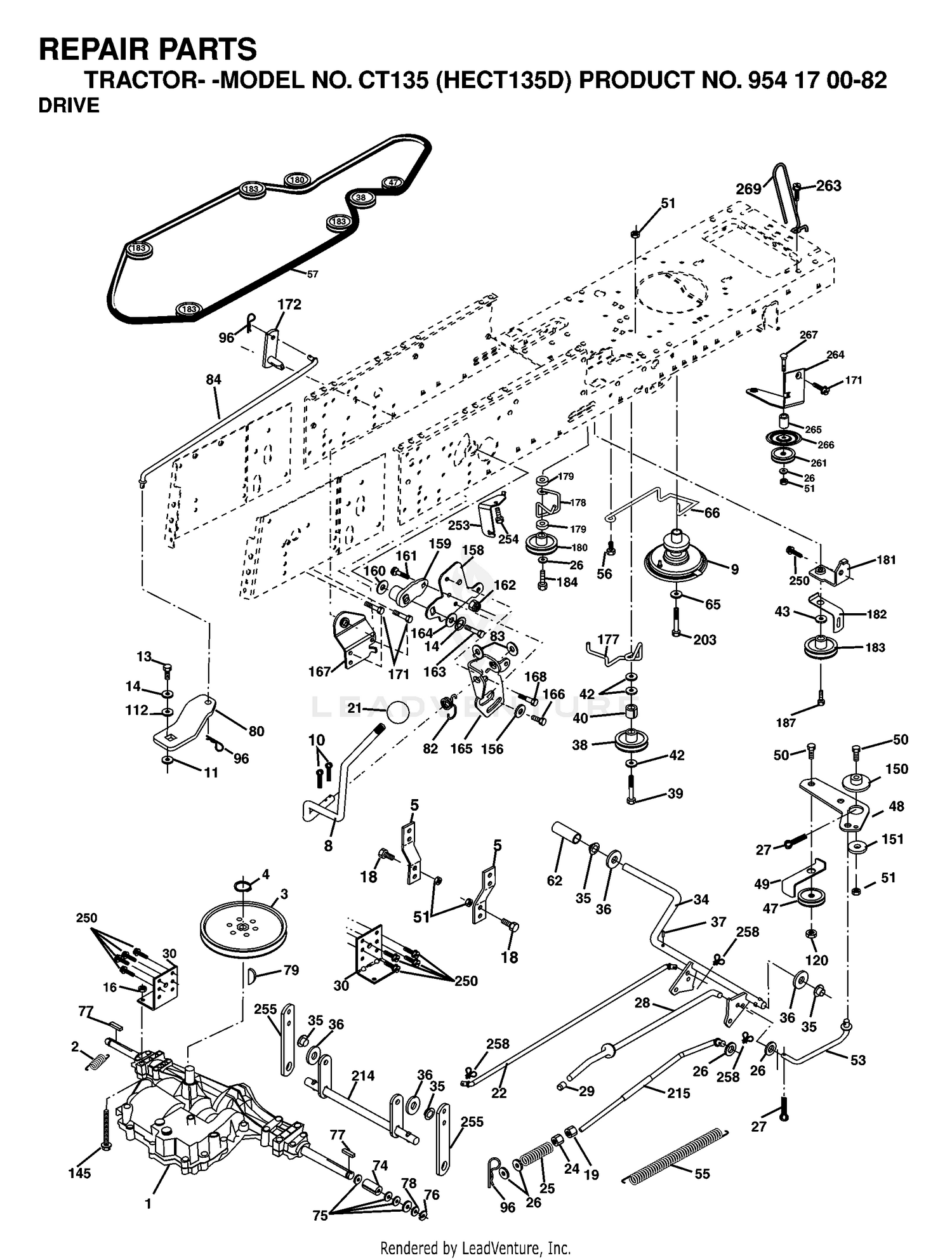

| Ref | Part Number | Description |
|---|
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 3 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 3 |
584450701 |
PULLEY TRANSAXLE.7" This part replaces 532165999. Price: $49.99 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 8 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 136-2913. Price: $3,119.29 |
| 8 |
532165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: $19.99 |
| 9 |
582219701 |
CLUTCH.NORAM.2002 This part replaces 532180354. Price: $299.99 |
| 10 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 12 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 13 |
93-7984 |
GASKET Price: $20.21 |
| 14 |
100-3070 |
LH BRAKE ASM This part replaces 100-3070-03. Price: $802.37 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
33106-080 |
SCREW-HHF Price: $2.80 |
| 16 |
3218-4 |
NUT-JAM Price: $0.49 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 18 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
325-13 |
SCREW-HH Price: $3.57 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
583070201 |
ROD.BRAKE.MAIN.CRD This part replaces 532175607. Price: $22.99 |
| 25 |
100-3069 |
RH BRAKE ASM This part replaces 100-3069-03. Price: $802.37 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
132-6250-03 |
FRAME-FRONT Price: $2,505.29 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE This part replaces 532174973. Price: $3.99 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532165936 |
PULLEY.FLAT Price: $22.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 43 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 57 |
532165631 |
V-BELT.KEV.111" Price: $54.99 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 79 |
532125096 |
KEY STD (1373) DANA Price: $7.99 |
| 80 |
532145090 |
ARM SHIFT Price: $6.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532165621 |
LINK Price: $34.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 145 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 150 |
532165850 |
BUSHING.BELLCRANK.GRD.DR Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 160 |
819292016 |
Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga. Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 167 |
532165588 |
BRACKET.SUPT.SHIFT.CRD Price: $17.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 171 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 172 |
584324101 |
SHAFT.ASM.SHIFT.FRT.CRD This part replaces 532165635. Price: $14.99 |
| 177 |
532165932 |
KEEPER Price: $6.99 |
| 178 |
532165933 |
KEEPER Price: $3.99 |
| 179 |
532120958 |
WASHER Price: $5.99 |
| 180 |
532165630 |
PULLEY.FLAT.IDLER Price: $27.99 |
| 181 |
583099101 |
BRKT.PULLY.V-V-IDL.GRD.CRD This part replaces 532180211. Price: $4.99 |
| 182 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532182682. Price: $5.99 |
| 183 |
532179050 |
NEEDS DESCRIPTION Price: Call Us |
| 184 |
596564005 |
BOLT This part replaces 817490644. Price: $8.99 |
| 187 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 203 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN This part replaces 871170780. Price: $7.99 |
| 214 |
583070401 |
SHAFT.ASM.BRAKE.CRD This part replaces 532175609. Price: $11.99 |
| 215 |
532175651 |
NEEDS DESCRIPTION Price: Call Us |
| 250 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 253 |
532175028 |
Price: Call Us |
| 254 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 255 |
583070301 |
BRACE.SHAFT.BRAKE.MTG.CRD This part replaces 532175608. Price: $2.99 |
| 258 |
532178062 |
CLIP RETAINER Price: $2.99 |
| 261 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 264 |
532181995 |
NEEDS DESCRIPTION Price: Call Us |
| 265 |
532182013 |
SPACER IDLER Price: $14.99 |
| 266 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 267 |
872140626 |
NEEDS DESCRIPTION Price: Call Us |
| 269 |
583122001 |
GUARD.MUFFLER This part replaces 532182402. Price: $5.99 |
