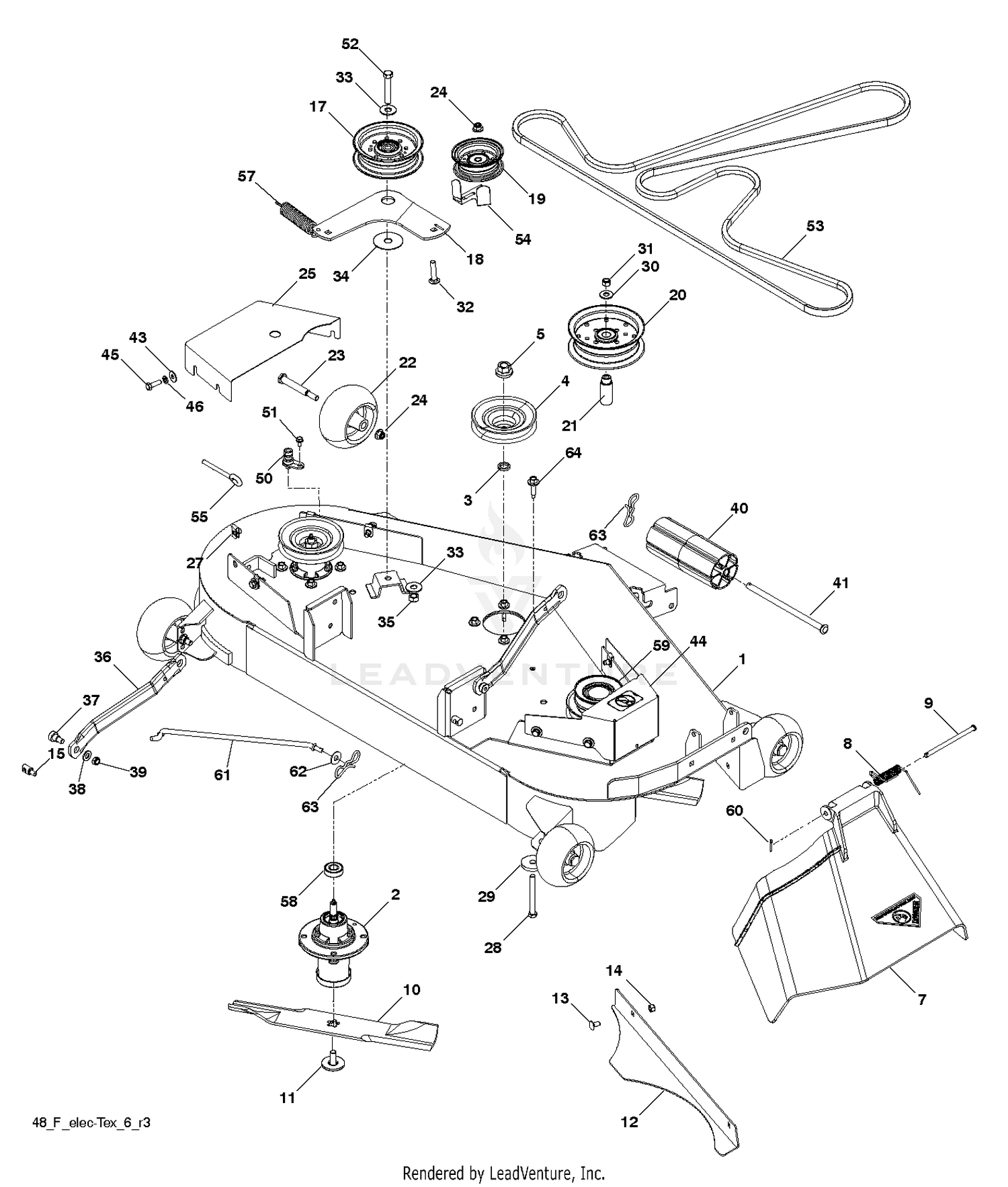

| Ref | Part Number | Description |
|---|
| 1 |
43-3770 |
THROTTLE LINK Price: $7.78 |
| 1 |
594742001 |
Decks Price: $2,099.99 |
| 2 |
3219-1 |
NUT-HEX Price: $0.47 |
| 2 |
539112170 |
MANDREL.DECK.ASSEMBLY Price: $69.99 |
| 3 |
18-1720 |
BALL JOINT Price: $50.30 |
| 3 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 4 |
37-8770 |
BOLT-SHOULDER Price: $1.02 |
| 4 |
532174375 |
PULLEY.DRIVEN.DECK.48' Price: $34.99 |
| 5 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 5 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 6 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 7 |
539110732 |
DISCHARGE CHUTE 48" Price: $44.99 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
596646001 |
Springs This part replaces 539110735. Price: $3.99 |
| 9 |
43-3780 |
SWIVEL-CABLE Price: $25.86 |
| 9 |
595935501 |
Pins This part replaces 539110736. Price: $2.99 |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 10 |
539113425 |
BLADE, 16-1/4" Price: $19.99 |
| 11 |
43-1940 |
DISCONTINUED Price: Call Us |
| 11 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 12 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 12 |
539113427 |
CONFINEMENT PLATE 48" BLK This part replaces 539113426. Price: $32.99 |
| 13 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 13 |
94-9160 |
DISCONTINUED This part replaces 43-1440. Price: Call Us |
| 14 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 14 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 15 |
2412-79 |
CLAMP-HOSE Price: $1.63 |
| 15 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 16 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 17 |
5-3637 |
SPACER Price: $2.23 |
| 17 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 18 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 18 |
574827102 |
ARM, IDLER, BLK This part replaces 574827101. Price: $27.99 |
| 19 |
33014-00 |
NUT-HEX This part replaces 42-9580. Price: $0.25 |
| 19 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 20 |
589766102 |
Pulleys This part replaces 539132728. Price: $27.99 |
| 21 |
42-9100 |
V-BELT, FAN Price: $25.25 |
| 21 |
575224501 |
BUSHING, IDLER Price: $27.99 |
| 22 |
53-9710-03 |
ENGINE MT This part replaces 53-9710. Price: $92.13 |
| 22 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 23 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 23 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 24 |
32128-23 |
NUT-HF Price: $1.51 |
| 24 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 25 |
3256-64 |
WASHER-FLAT Price: $0.63 |
| 26 |
43-5950 |
WASHER-LOCK, SPRING Price: $1.15 |
| 27 |
43-3510 |
ENGINE PULLEY Price: $413.91 |
| 27 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 28 |
43-3210 |
SCREW-HH Price: $4.27 |
| 28 |
539108271 |
HCS 3/8-16 X 3-1/2 GR5 ZD Price: $4.99 |
| 29 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 29 |
75-9900-01 |
SUPPORT-ENGINE, FRONT This part replaces 75-9900. Price: $226.52 |
| 30 |
3257-33 |
KEY-WOODRUFF Price: $1.76 |
| 30 |
596433701 |
GSPW Washers This part replaces 819141614. Price: $2.99 |
| 31 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 31 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 32 |
43-3720 |
COLLAR-BEARING Price: $249.41 |
| 32 |
539990923 |
RHSNB 3/8-16X1-3/4 Price: $2.99 |
| 33 |
251-252 |
BEARING Price: $98.35 |
| 33 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 34 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 34 |
532178515 |
WASHER Price: $5.99 |
| 35 |
32120-69 |
RING-SNAP Price: $2.78 |
| 35 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 36 |
3241-5 |
SCREW-SET Price: $0.61 |
| 36 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 37 |
110-5236 |
HUB-ENGINE This part replaces 27-1960. Price: $30.97 |
| 37 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 38 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 38 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 39 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 39 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 40 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 40 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 41 |
43-3190 |
HEX HD CAPSCREW Price: $1.40 |
| 41 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 42 |
21-1820 |
STUD-RETAINER, BELT Price: $36.84 |
| 43 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 43 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 44 |
32128-37 |
NUT-HF Price: $3.63 |
| 44 |
575967202 |
SHIELD, BELT, RH 48 ORG Price: $34.99 |
| 45 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 45 |
596580801 |
Bolts This part replaces 874780516. Price: $2.99 |
| 46 |
33114-060 |
SCREW-HH This part replaces 42-9510. Price: $0.88 |
| 46 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 47 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 48 |
43-3790 |
BELT GUIDE BRKT Price: $53.55 |
| 49 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 50 |
3217-5 |
NUT-HEX Price: $0.25 |
| 50 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 51 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 51 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 52 |
43-3730-03 |
THROTL CONT BRKT ASM This part replaces 43-3730. Price: $67.00 |
| 52 |
596435201 |
Bolts This part replaces 874780740. Price: $2.99 |
| 53 |
329-7 |
SCREW-HH Price: $0.22 |
| 53 |
574845602 |
BELT, 135" EL Price: $79.99 |
| 54 |
43-3760 |
THROTTLE LEVER Price: $18.91 |
| 54 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 55 |
47-7420 |
HOSE-FUEL Price: $28.62 |
| 55 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 56 |
110-5688 |
HOSE-FUEL This part replaces 43-4230. Price: $34.27 |
| 57 |
596645601 |
Springs This part replaces 539106850. Price: $8.99 |
| 57 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 58 |
532110485 |
BEARING Price: $11.99 |
| 58 |
63-1400 |
ROD-BELT Price: $17.83 |
| 59 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 59 |
575352901 |
RP PULLEY, COLLECTION 48 Price: $54.99 |
| 60 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 60 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 61 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 61 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 62 |
5-0652 |
SPACER Price: $5.35 |
| 63 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 63 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 64 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
