| Ref | Part Number | Description |
|---|
| 501466901 |
501466901 |
SCREW Price: $7.99 |
| 501468401 |
501468401 |
SPRING Price: $6.99 |
| 501468501 |
501468501 |
BALL Price: $6.99 |
| 501468601 |
507430749 |
SHUTTER-CHOKE This part replaces 501468601. Price: $2.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501469601 |
501469502 |
This part replaces 501469601. Price: $5.10 |
| 501469701 |
530035124 |
CHECK VALVE SCREEN This part replaces 501469701. Price: $1.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667001 |
501667001 |
GASKET, METERING SIDE Price: $6.99 |
| 501667201 |
502254701 |
PUMP DIAPHRAGM This part replaces 501667201. Price: $19.99 |
| 501667301 |
501667301 |
METERING DIAPHRAGM Price: $64.99 |
| 501667601 |
501667601 |
Screw Price: $1.18 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 501668401 |
501668401 |
REPAIR KIT DIAPHRAGM SET Price: $17.99 |
| 501799601 |
501799601 |
START LEVER SET Price: $2.14 |
| 501832901 |
501832901 |
BUSHING Price: $2.99 |
| 501875701 |
501875701 |
Throttle Shaft Price: $7.95 |
| 501875801 |
501875801 |
Throttle Flap Price: $2.42 |
| 501876201 |
501876201 |
Throttle Return Spring Price: $3.41 |
| 501876401 |
501876401 |
NEEDLE IDLE Price: $2.41 |
| 501877901 |
501877901 |
LEVER FAST IDLE Price: $1.41 |
| 501878001 |
501878001 |
THROTTLE STOP Price: $0.88 |
| 501878901 |
501878901 |
Choke Shaft Price: $2.51 |
| 501879001 |
501879001 |
SPRING CHOKE Price: $0.53 |
| 503081801 |
503081801 |
Washer Price: $7.50 |
| 503082001 |
503082001 |
NIPPLE Price: $4.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |
| 503177101 |
503177101 |
Needle High Speed Price: $2.12 |
| 503281011 |
503281611 |

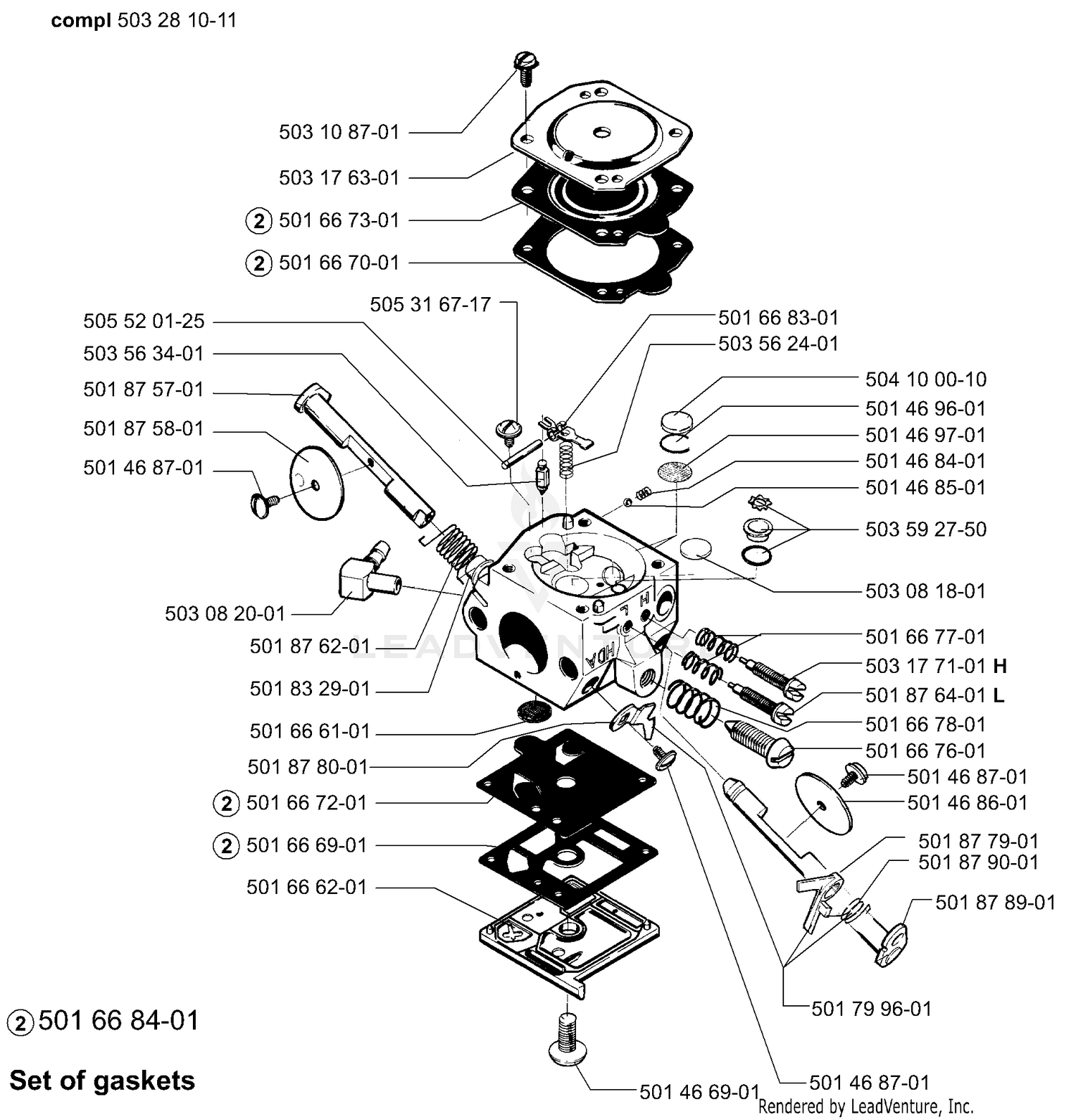

CARB. HDA-144-1 WALBRO This part replaces 503281011. Price: $99.99 |
| 503562401 |
503562401 |
SPRING Price: $6.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503592750 |
503592750 |
REPAIR KIT CARBURETOR Price: $2.99 |
| 504100010 |
530035225 |
CUP PLUG This part replaces 504100010. Price: $2.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
