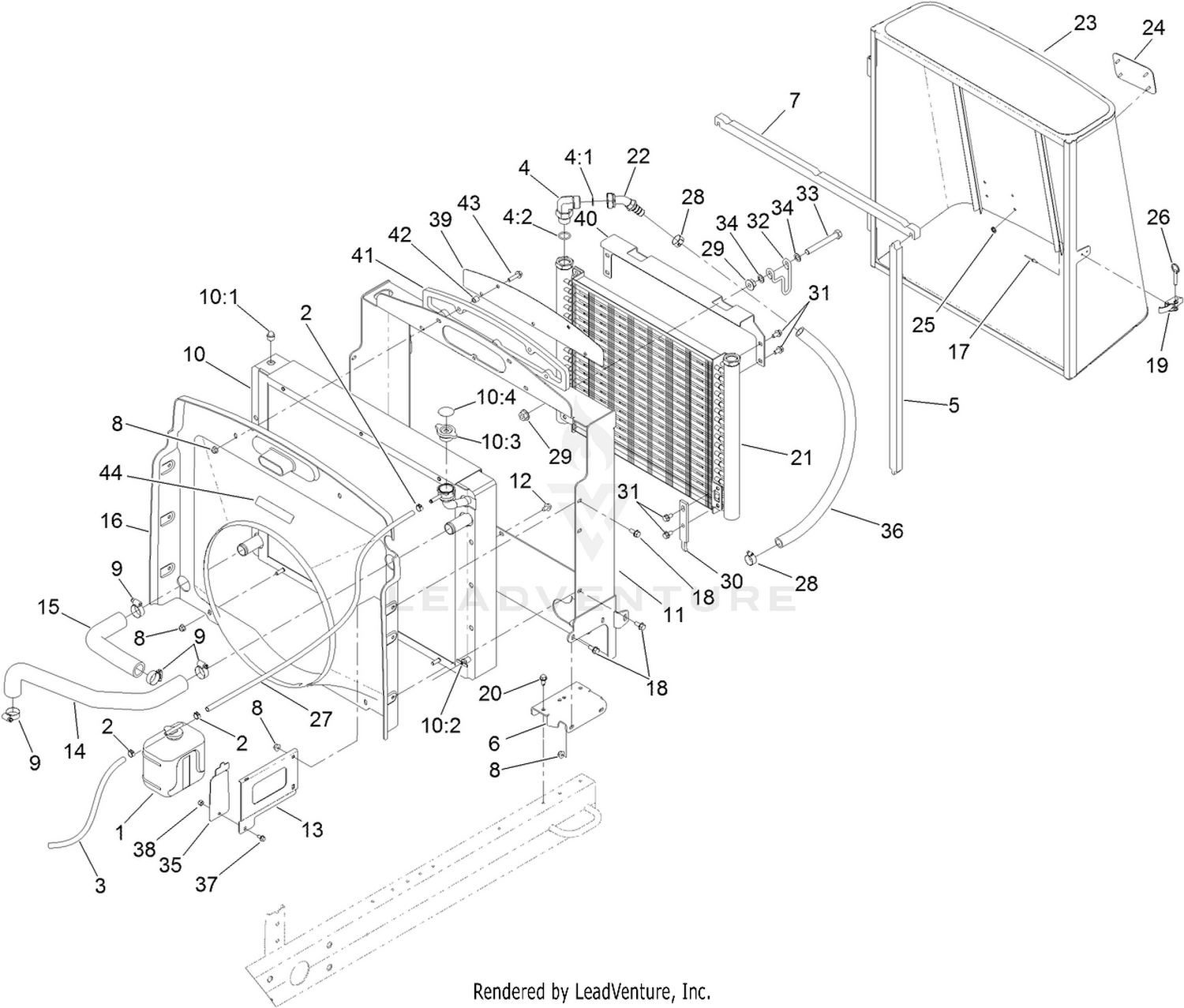

Radiator Assembly
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-0638 | BOTTLE-OVERFLOW Price: $33.20 |
| 2 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 3 | 110-3257 | HOSE-FUEL Price: $17.26 |
| 4 | 340-142 | FITTING-ELBOW-90 Price: $65.90 |
| 5 | 110-5275 | SEAL-FOAM Price: $17.84 |
| 6 | 110-5310-0P | BRACKET - MOUNTING Price: Call Us |
| 7 | 110-5276 | SEAL-FOAM Price: $16.24 |
| 8 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 9 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 10 | 117-8093 | RADIATOR ASM Price: $2,185.13 |
| 11 | 110-5251-03 | FRAME-RADIATOR Price: $733.84 |
| 12 | 3234-30 | SCREW-HHF Price: $0.41 |
| 13 | 108-1666-0P | BRACKET - RESERVOIR Price: $20.32 |
| 14 | 110-8942 | HOSE-FORMED Price: $85.85 |
| 15 | 110-8943 | HOSE-FORMED Price: $75.79 |
| 16 | 110-5311 | SHROUD-FAN Price: $369.24 |
| 17 | 3269-15 | RIVET-POP Price: $0.54 |
| 18 | 3234-5 | SCREW-HHF Price: $0.42 |
| 19 | 115-1554 | LATCH-DRAW Price: $38.46 |
| 20 | 32104-32 | SCREW-HWH Price: $1.99 |
| 21 | 110-0485 | COOLER-OIL Price: $706.30 |
| 22 | 104-7851 | FITTING-HYD, 45 DEG Price: $62.28 |
| 23 | 110-5269-03 | SCREEN Price: $1,472.37 |
| 24 | 93-6028 | PLATE-LOGO Price: $13.70 |
| 25 | 138-6996 | NUT-PUSH Price: $0.34 |
| 26 | 115-1556 | PIN-BALL, DETENT Price: $8.01 |
| 27 | 110-4104 | HOSE-FUEL Price: $8.95 |
| 28 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 29 | 32128-49 | NUT-HHF Price: $1.04 |
| 30 | 104-5460-03 | PLATE-MOUNT, OIL COOLER Price: $19.12 |
| 31 | 3234-14 | SCREW-HHF Price: $0.61 |
| 32 | 104-5429 | CLAMP-FORM, WIRE Price: $11.80 |
| 33 | 325-17 | SCREW-HH Price: $2.90 |
| 34 | 41-8440 | WASHER Price: $1.49 |
| 35 | 108-1665-0P | BRACKET - RESERVIOR Price: $13.72 |
| 36 | 110-8955 | HOSE Price: $36.39 |
| 37 | 3234-13 | SCREW-HHF Price: $0.77 |
| 38 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 39 | 108-1843-0P | SCREEN - AIR INTAKE Price: $35.29 |
| 40 | 104-5428 | BRACKET-OIL COOLER, TOP Price: $50.73 |
| 41 | 110-5324 | SEAL-FOAM Price: $16.15 |
| 42 | 1-603903 | SPACER Price: $4.99 |
| 43 | 3234-36 | SCREW-HHF Price: $0.75 |
