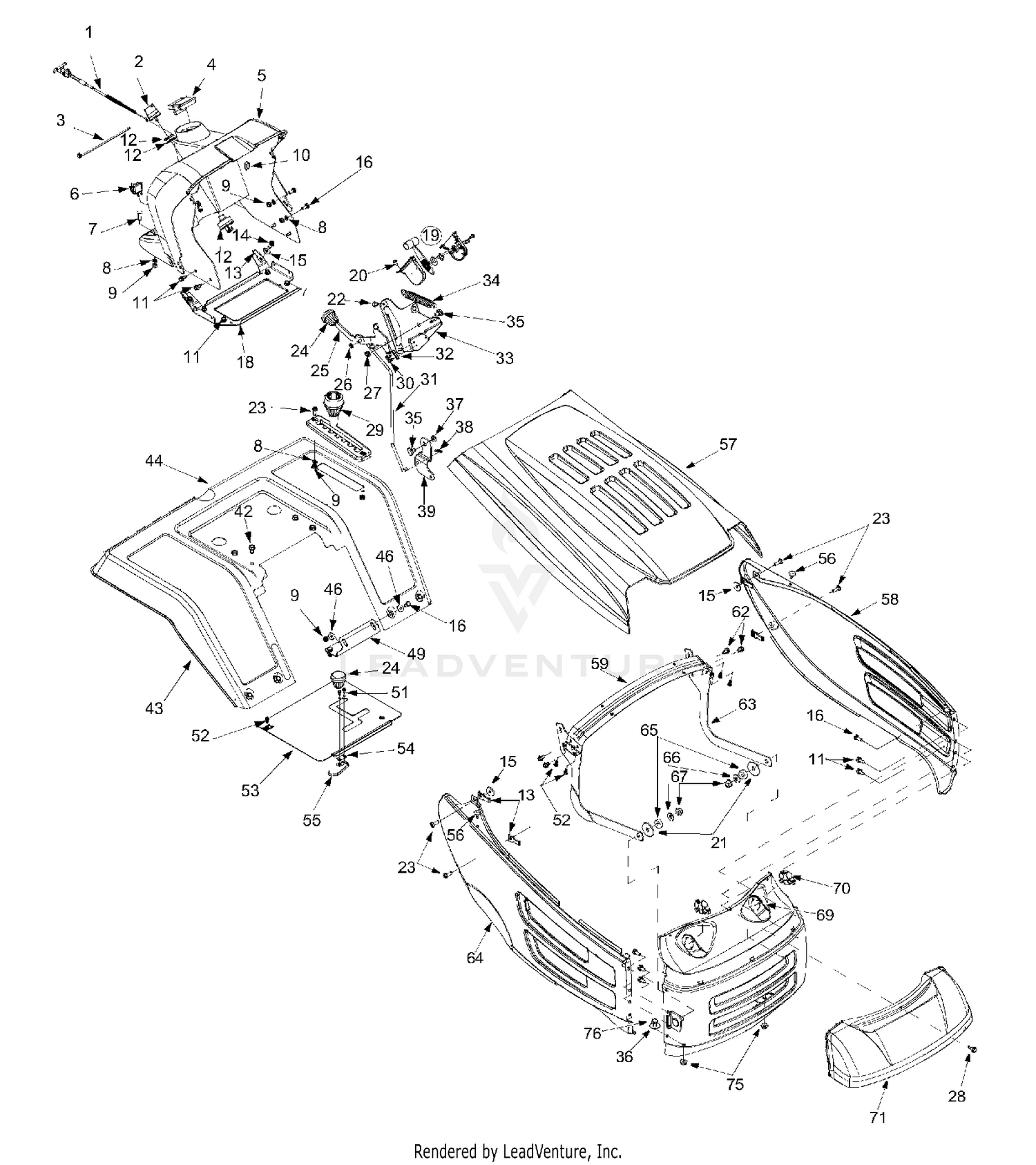

| Ref | Part Number | Description |
|---|
| 1 |
746-0614A |
Choke Cable Price: $22.93 |
| 2 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 3 |
725-0157 |
Cable Tie Price: $3.46 |
| 4 |
925-0925 |
Ammeter Not Available This part replaces 725-0925. Price: |
| 5 |
731-1853 |
DASH PANEL Not Available Price: |
| 6 |
925-0634 |
Light Switch This part replaces 725-0634. Price: $15.62 |
| 7 |
710-0932A |
SCREW 1/4-20 x 1 GR5 This part replaces 710-0932. Price: $3.66 |
| 8 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 9 |
712-3006 |
HEX NUT Price: $4.05 |
| 10 |
17782 |
CLIP-CHOKE RETAINER Not Available Price: |
| 11 |
710-0896 |
Hex Washer Hd. AB-Tapp Scr. Price: $3.86 |
| 12 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 13 |
712-0185 |
SPEED NUT 1/4-20 Not Available Price: |
| 14 |
710-0642 |
Hex Washer Hd. TT-Tapp Scr. Price: $4.05 |
| 15 |
736-0176 |
Flat Washer 1/4" I.D. Price: $3.95 |
| 16 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 18 |
783-0347A-0637 |
MOUNTING BRACKET Not Available This part replaces 783-0347A. Price: |
| 19 |
831-0823A |
Throttle Box Assembly Price: $30.59 |
| 20 |
710-0779A |
Truss Mach. AB-Tap Scr. Price: $3.85 |
| 21 |
736-3039 |
Flat Washer Price: $4.42 |
| 22 |
710-1017 |
Truss Mach. AB-Tap Screw 0.62" Price: $7.26 |
| 23 |
710-0924 |
Pan Hd. Mach. Scr. 1/4-20 x 0.75" Price: $4.02 |
| 24 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 25 |
17500 |
LEVER-PTO Not Available Price: |
| 26 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 27 |
712-3009 |
Hex L-Nut 5/16-18 Thd. Price: $5.99 |
| 28 |
710-0456 |
HEX SCREW #10-16 x 0.500 Not Available Price: |
| 29 |
720-0218 |
Knob Price: $17.27 |
| 30 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 31 |
747-0750A |
DECK CONTROL ROD Not Available Price: |
| 32 |
17962 |
Switch Plate Price: $4.36 |
| 33 |
783-0461A-0637 |
PTO BRACKET Not Available This part replaces 783-0461A. Price: |
| 34 |
732-0626 |
Ext. Spring 5.06" Lg. Price: $11.77 |
| 35 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 36 |
N/A |
UNKNOWN |
| 37 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 38 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 39 |
13887A |
BRACKET-DECK CONTROL Not Available Price: |
| 42 |
710-0726 |
Hex Washer Hd. AB-Tapp Scr. Price: $3.82 |
| 43 |
17426A |
FENDER-RR Not Available Price: |
| 44 |
731-0511 |
Trim Strip 81" Price: $3.29 |
| 46 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 51 |
710-0227 |
Hex Washer Hd. AB-Tap Scr. Price: $3.90 |
| 52 |
710-0351 |
Truss Hd. B-Tapp Scr. Price: $3.90 |
| 53 |
783-0348 |
SHIFT COVER 2-SPD Not Available Price: |
| 54 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0320. Price: $6.01 |
| 55 |
725-1713 |
REVERSE SAFETY SWITCH Not Available Price: |
| 56 |
735-0199A |
Rubber Bumper Price: $6.89 |
| 57 |
983-0478B |
HOOD-8 STYLE Not Available This part replaces 783-0478A. Price: |
| 58 |
783-0475C |
SIDE PANEL (LH) 8STY Not Available This part replaces 783-0475A. Price: |
| 59 |
783-0553A-0637 |
HOOD SUPPORT BRACKET Not Available This part replaces 783-0553A. Price: |
| 62 |
710-0599 |
Hex Washer Hd. TT-Tap Scr. Price: $3.86 |
| 63 |
783-1038C |
Hood Hinge Bracket LH Price: Call Us |
| 64 |
783-0476B |
SIDE PANEL (RH) 8STY Not Available Price: |
| 65 |
735-0126A |
RUBBER WASHER Not Available This part replaces 735-0126. Price: |
| 66 |
736-0105 |
Spring Washer Price: $3.96 |
| 67 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 69 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 70 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 71 |
931-1854A |
Headlight Lens (8-style) This part replaces 731-1854A. Price: $72.82 |
| 75 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
