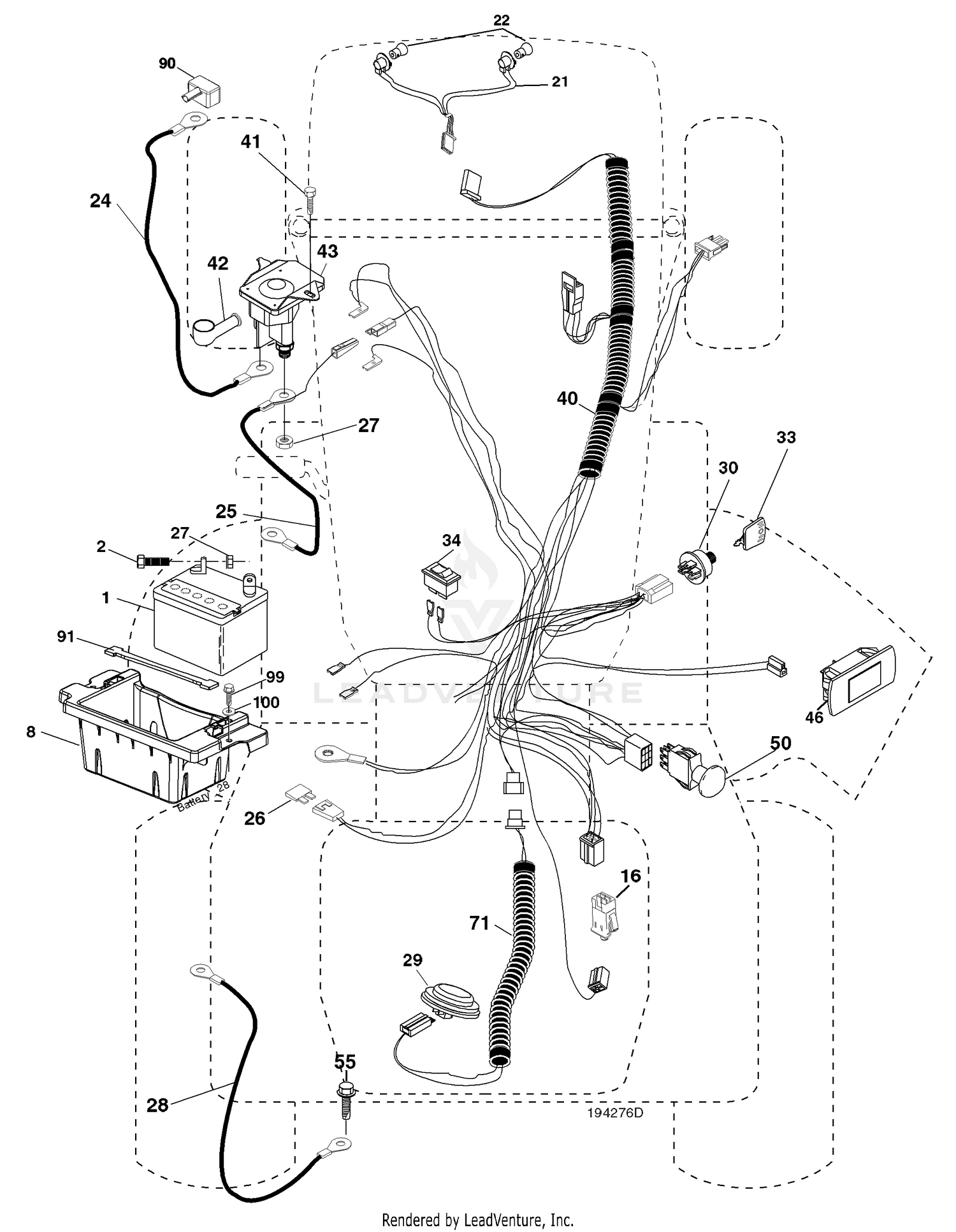

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
237-22 |
O-RING Price: $2.43 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
76-9290 |
BRACKET-DRAIN, CASE Price: $9.53 |
| 4 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 5 |
340-70 |
NUT-LOCK Price: $2.10 |
| 6 |
86-3140 |
HOSE ASM Price: $68.42 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 8 |
98-7076 |
STOP-AXLE Price: $19.04 |
| 9 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 10 |
76-9590 |
HOSE ASM Price: $73.44 |
| 11 |
237-65 |
O-RING Price: $2.50 |
| 12 |
94-8246 |
DISCONTINUED Price: Call Us |
| 13 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 14 |
86-2730 |
DISCONTINUED Price: Call Us |
| 15 |
98-3867 |
WASHER-THRUST Price: $3.21 |
| 16 |
325-36 |
SCREW-HH Price: $7.20 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
74-5700 |
BEARING-NEEDLE, ROLLER Price: $27.84 |
| 18 |
69-8910 |
WASHER Price: $1.70 |
| 19 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 20 |
2412-74 |
R-CLAMP Price: $2.37 |
| 21 |
340-156 |
FITTING-ELBOW 45 Price: $67.70 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
237-81 |
O-RING Price: $2.76 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
99-7502 |
PISTON MOTOR ASM Price: $2,330.63 |
| 24 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
325-6 |
SCREW-HH Price: $1.42 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
237-166 |
O-RING Price: $10.46 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 28 |
95-4393 |
GEAR-DRIVEN Price: $115.85 |
| 29 |
33114-025 |
SCREW-HH Price: $0.70 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 31 |
99-7500 |
DISCONTINUED Price: Call Us |
| 32 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 33 |
325-12 |
SCREW-HH Price: $2.27 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
325-35 |
SCREW-HH Price: $2.37 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
95-4391 |
TIE ROD ASM Price: $758.36 |
| 36 |
110-4750 |
DRIVE AXLE ASM This part replaces 95-7500. Price: $8,909.28 |
| 37 |
86-5910 |
TIRE-6 PLY Price: $114.98 |
| 38 |
120-8909 |
RIM This part replaces 100-2582. Price: $198.53 |
| 39 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 40 |
92-5844 |
DISCONTINUED Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 41 |
74-5500 |
BOLT-WHEEL Price: $10.84 |
| 42 |
237-42 |
O-RING Price: $2.78 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
353-508 |
PLUG-HH Price: $7.96 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 44 |
92-5839 |
JOINT-BALL Price: $207.89 |
| 45 |
92-5833 |
SPACER-JOINT, BALL Price: $20.71 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532198138. Price: $19.99 |
| 46 |
98-3806 |
HYD CYLINDER ASM Price: $818.91 |
| 47 |
237-78 |
O-RING Price: $3.85 |
| 48 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 49 |
98-3806 |
HYD CYLINDER ASM Price: $818.91 |
| 50 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
86-5790 |
LH REAR STEERING TUBE ASM Price: $104.10 |
| 52 |
86-5780 |
RH REAR STEERING TUBE ASM Price: $109.22 |
| 53 |
32128-33 |
NUT-HF Price: $0.25 |
| 54 |
145-8330 |
PIN-AXLE, REAR This part replaces 98-7077. Price: $192.04 |
| 55 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 55 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 56 |
32104-37 |
SCREW-HWH, THREAD CUT Price: $3.26 |
| 57 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 58 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 59 |
80-8660 |
SPACER-COUPLER Price: $49.67 |
| 60 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 61 |
32128-49 |
NUT-HHF Price: $1.04 |
| 63 |
32136-14 |
NUT-HST Price: $3.38 |
| 64 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 65 |
106-6774 |
JOINT-BALL This part replaces 92-5838-01. Price: $79.04 |
| 66 |
92-5836 |
WASHER Price: $5.34 |
| 67 |
94-8247 |
PIVOT - FRONT, WELDED Price: $337.37 |
| 68 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 69 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 70 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 2411-45. Price: $163.79 |
| 71 |
105-7835 |
SEAL This part replaces 71-4760. Price: $2.76 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 72 |
323-9 |
SCREW-HH Price: $1.29 |
| 73 |
95-4391 |
TIE ROD ASM This part replaces 99-7503. Price: $758.36 |
| 74 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 75 |
32136-13 |
NUT-SHH Price: $2.85 |
| 76 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 77 |
237-79 |
O-RING Price: $5.46 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
