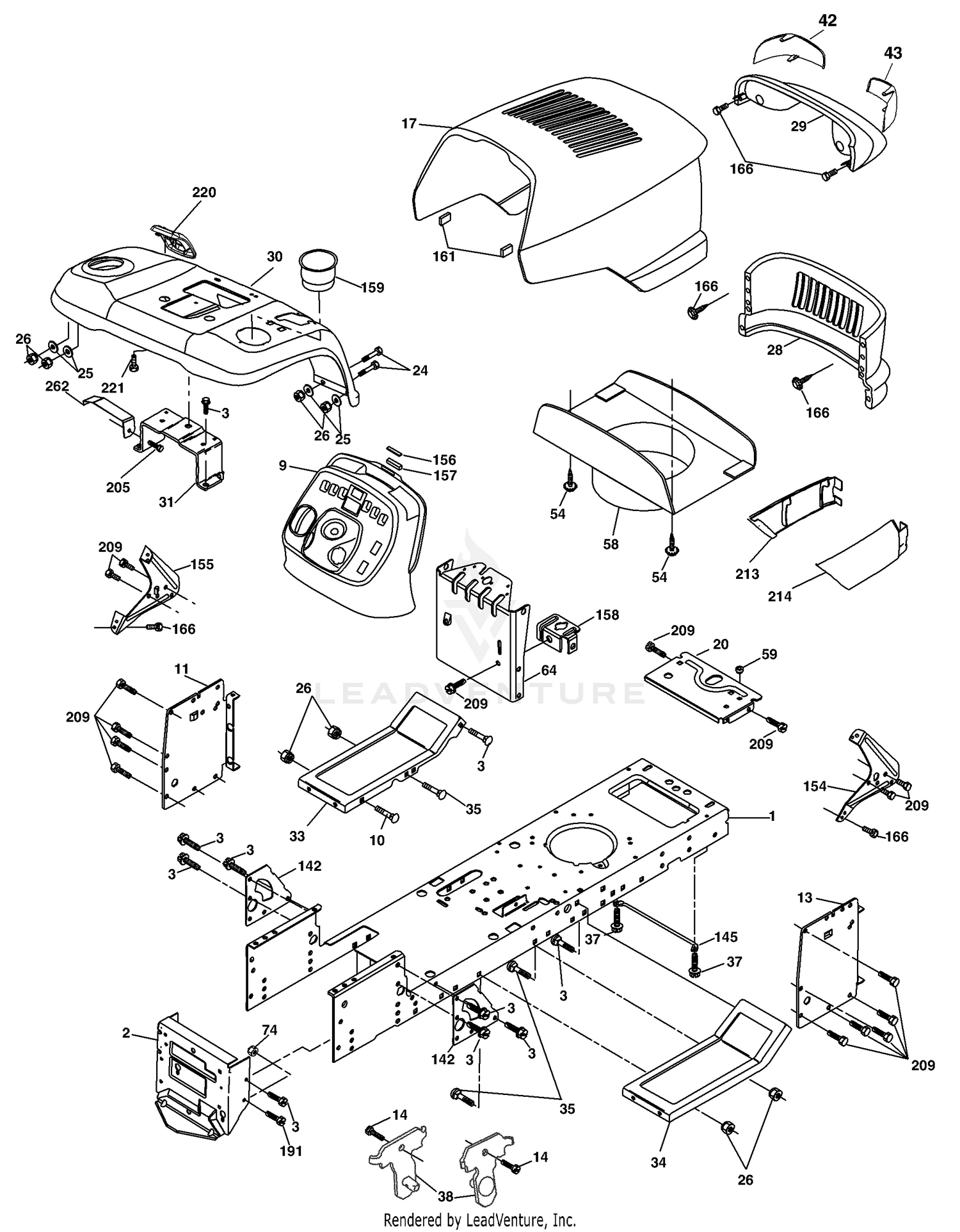

| Ref | Part Number | Description |
|---|
| 1 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 3 |
100-8072 |
SWITCH Price: $94.07 |
| 3 |
17060612 |
Screw 3/8-16x3/4 Price: Call Us |
| 4 |
99-7420 |
PLUG-HOLE Price: $7.64 |
| 5 |
95-8999 |
SWITCH Price: $42.14 |
| 6 |
106-6751 |
CONTROL PANEL ASM Price: $424.05 |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 8 |
104-2541 |
SWITCH ASM This part replaces 88-9830. Price: $36.70 |
| 9 |
163976X428 |
Dash Price: Call Us |
| 9 |
93-5270 |
SWITCH-PTO Price: $201.01 |
| 10 |
321-11 |
SCREW-HH Price: $0.36 |
| 10 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 11 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 12 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 13 |
178297X010 |
Panel Dash Rh Price: Call Us |
| 13 |
2412-126 |
R-CLAMP Price: $2.51 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 15 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 16 |
321-5 |
SCREW-HH Price: $0.22 |
| 17 |
175260X428 |
Hood Price: Call Us |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 19 |
80-9330 |
AUDIO ALARM ASM Price: $137.61 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 20 |
2412-74 |
R-CLAMP Price: $2.37 |
| 21 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 22 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 23 |
98-9321 |
RING-KEY Price: $1.80 |
| 24 |
74780616 |
Bolt 3/8-16 x 1 Gr. 5 Price: Call Us |
| 24 |
99-7411 |
POINT-POWER Price: $30.69 |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 25 |
99-7416 |
CAP Price: $6.64 |
| 26 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 27 |
323-8 |
SCREW-HH Price: $1.20 |
| 28 |
175289X428 |
Grille Price: Call Us |
| 28 |
340-3 |
FITTING-STRAIGHT Price: $10.42 |
| 29 |
179763 |
Light Box Asm W/Lens Price: Call Us |
| 29 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 30 |
179775X428 |
Fender Price: Call Us |
| 30 |
354-79 |
CAP-DUST Price: $7.81 |
| 31 |
183569 |
Bracket Fender Price: Call Us |
| 31 |
69-1780 |
CONTROL VALVE ASM Price: $2,259.71 |
| 32 |
105-0789-03 |
BRACKET-VALVE Price: $54.86 |
| 33 |
179716X428 |
Footrest LH Price: Call Us |
| 33 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 34 |
179717X428 |
Footrest RH Price: Call Us |
| 34 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 35 |
104-0788 |
VALVE ASM Price: $1,267.41 |
| 35 |
72110606 |
Bolt 3/8-16 x 3/4 Price: Call Us |
| 36 |
104-2231-03 |
PLATE-VALVE Price: $23.42 |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 37 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 38 |
322-3 |
SCREW-HH Price: $0.79 |
| 39 |
323-38 |
SCREW-HH Price: $2.62 |
| 40 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 41 |
105-0788-03 |
BRACKET-PIVOT Price: $41.98 |
| 42 |
100-3123 |
LH LEVER ASM Price: $66.45 |
| 42 |
161841 |
Lens LH Price: Call Us |
| 43 |
161842 |
Lens RH Price: Call Us |
| 43 |
69-9140 |
LINK-LEVER, VALVE Price: $15.42 |
| 44 |
106-7161 |
LEVER ASM Price: $64.04 |
| 45 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 46 |
100-3121 |
RH LEVER ASM Price: $66.45 |
| 47 |
62-6660 |
SPACER Price: $0.79 |
| 48 |
105-3938 |
SPRING-EXTENSION Price: $12.47 |
| 49 |
107-0187 |
PLATE-TAB Price: $12.89 |
| 50 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 51 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 52 |
107-0186 |
BRACKET-LEVER Price: $11.05 |
| 53 |
32128-33 |
NUT-HF Price: $0.25 |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 54 |
95-1870 |
SCREW-SHOULDER Price: $7.05 |
| 55 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 56 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 57 |
107-0185 |
PLATE-SWITCH Price: $12.49 |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 58 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 59 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 59 |
177579 |
Bushing Snap Price: Call Us |
| 60 |
32105-2 |
SCREW-SHWH Price: $3.49 |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 156 |
163805 |
Striker Plate Price: Call Us |
| 157 |
163806 |
Magnet Stealth Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
179125X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Extrusion Bumper Price: Call Us |
| 166 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 191 |
74780612 |
Bolt Fin Hex 3/8-16unc x 3/4 Gr. 5 Price: Call Us |
| 205 |
17490608 |
Screw 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille Lh Price: Call Us |
| 214 |
169847X428 |
Skirt Grille Rh Price: Call Us |
| 220 |
179612X428 |
Console Fuel Window Price: Call Us |
| 221 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc Price: Call Us |
