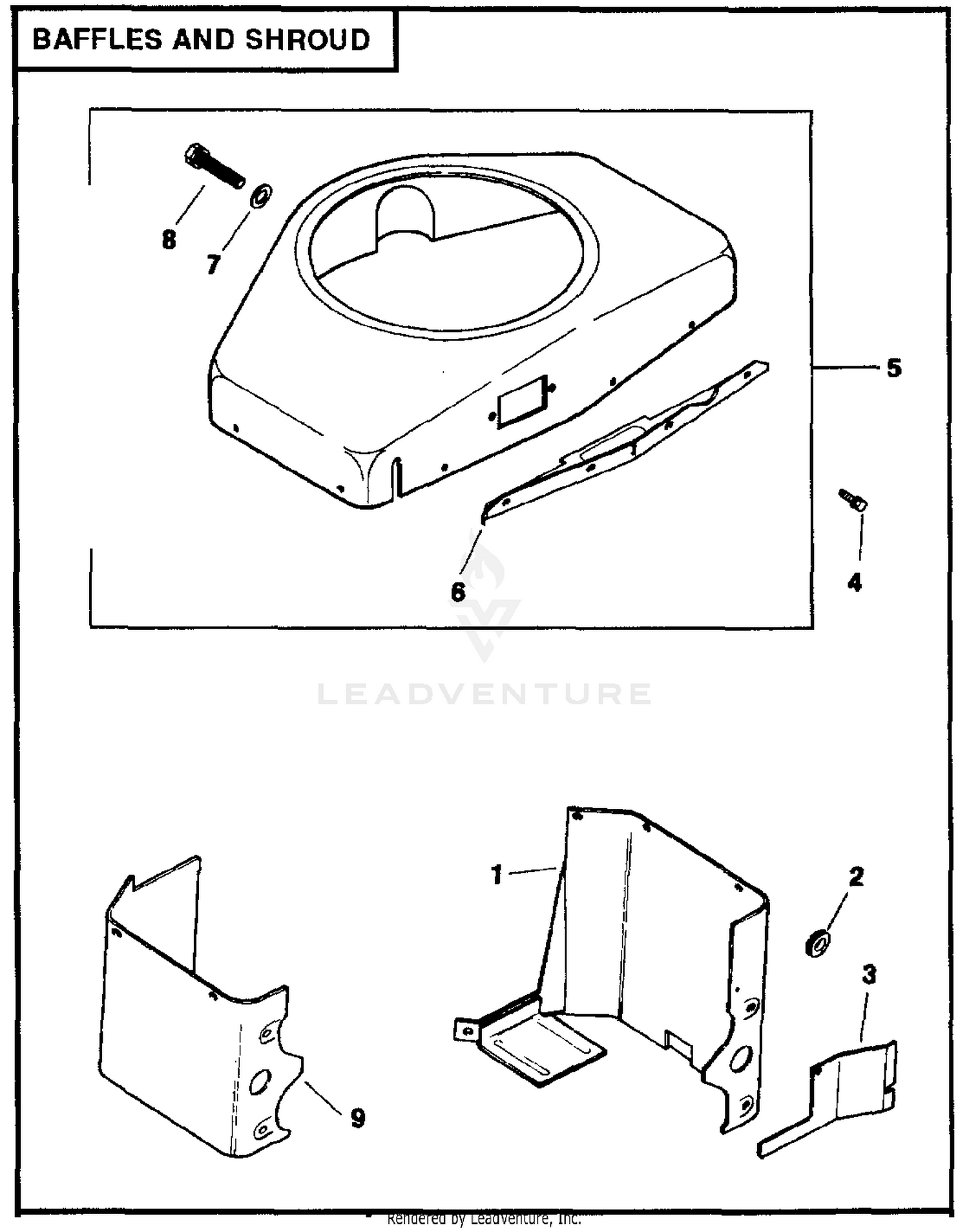

BAFFLES AND SHROUD
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 52-063-41 | BAFFEL, #2 HEAD Price: Call Us |
| 2 | 52-313-05 | GROMMET Price: Call Us |
| 3 | 52-063-42 | BAFFLE, FUEL PUMP Price: Call Us |
| 4 | X-67-83 | SCREW Price: Call Us |
| 5 | 52-755-70 | KIT Price: Call Us |
| 6 | 52-217-01 | SUPPORT Price: Call Us |
| 7 | 52-468-16 | WASHER Price: Call Us |
| 8 | 52-086-11 | SCREW Price: Call Us |
| 9 | 52-124-23 | BAFFLE, #1 HEAD Price: Call Us |
| 10 | 98-9705 | STARTER ASM Price: $663.57 |
| 20 | 104-8608 | YOKE ASM Price: $437.88 |
| 25 | 99-8375 | COVER Price: $24.86 |
| 30 | 98-7742 | ARMATURE ASM Price: $819.15 |
| 40 | 98-7744 | BEARING Price: $35.64 |
| 50 | 98-7743 | BEARING Price: $37.48 |
| 60 | 99-8373 | CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 | 99-8374 | FRAME-END, DRIVE Price: $73.04 |
| 80 | 105-3746 | MAGNETIC SWITCH ASM Price: $689.29 |
| 85 | 105-2886 | COVER ASM Price: $58.11 |
| 90 | 98-7748 | FRAME-END Price: $82.65 |
| 100 | 98-7749 | BRUSH HOLDER ASM Price: $91.05 |
| 110 | 98-7750 | SPRING-BRUSH Price: $2.38 |
| 120 | 98-7751 | GEAR Price: $43.51 |
| 130 | 98-7752 | RETAINER Price: $4.35 |
| 140 | 98-7753 | ROLLER Price: $1.00 |
| 150 | 98-7755 | BALL Price: $0.42 |
| 160 | 98-7754 | SPRING Price: $4.70 |
| 170 | 98-7756 | BOLT Price: $2.64 |
| 180 | 98-7757 | O-RING Price: $24.98 |
| 190 | 98-7758 | BOLT ASM Price: $4.90 |
| 200 | 98-7759 | PIPE-DRAIN Price: $28.84 |
| 210 | 99-8371 | NUT-HEX Price: $3.75 |
| 215 | 99-8376 | NUT-HEX Price: $7.28 |
| 220 | 100-9240 | BOLT Price: $7.23 |
| 230 | 250-4 | TIE-CABLE This part replaces 98-9712. Price: $0.61 |
