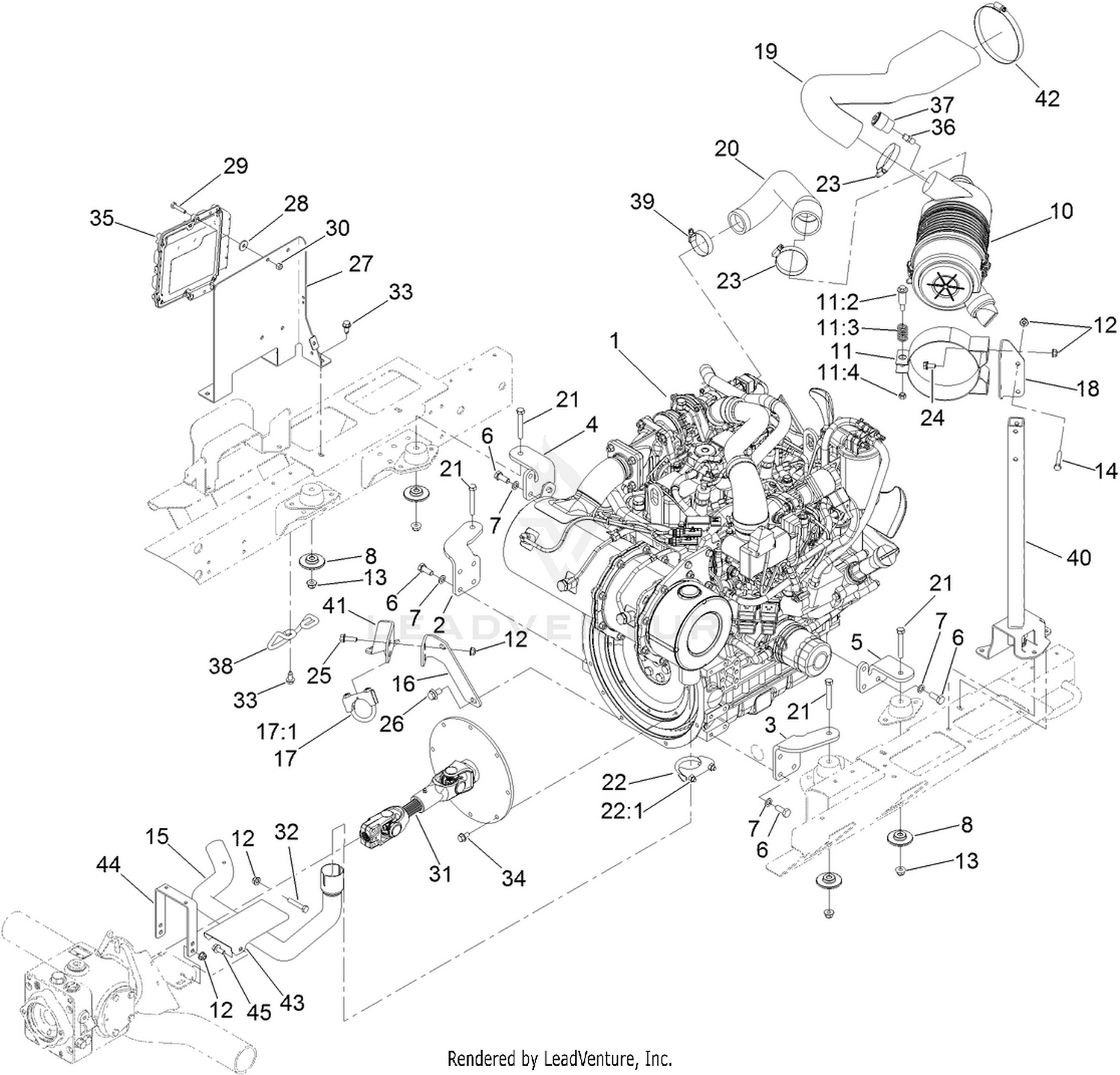

Engine, Air Cleaner and Drive Shaft Assembly
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 138-6916 | ENGINE-YANMAR,3TNV86CT Price: $16,080.77 |
| 2 | 120-3777-0P | MOUNT-ENGINE RF Price: $32.30 |
| 3 | 120-3778-0P | MOUNT-ENGINE LF Price: $32.30 |
| 4 | 120-3779-0P | MOUNT-ENGINE RR Price: $22.62 |
| 5 | 120-3780-0P | MOUNT-ENGINE LR Price: $25.60 |
| 6 | 33115-025 | SCREW-HH Price: $0.61 |
| 7 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 8 | 138-6462 | SUPPORT-ISOLATOR Price: $4.17 |
| 10 | 98-4517 | AIR CLEANER ASM Price: $272.15 |
| 11 | 100-4825 | BAND-MOUNTING, AIR CLEANER Price: $80.59 |
| 12 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 13 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 14 | 322-10 | SCREW-HH Price: $0.70 |
| 15 | 127-2616 | TUBE-EXHAUST Price: $238.81 |
| 16 | 125-8763-0P | BRACKET-TAILPIPE Price: $21.84 |
| 17 | 2112-9 | CLAMP Price: $7.78 |
| 18 | 120-6298-0P | BRACKET-AIRCLEANER Price: $18.23 |
| 19 | 121-5559 | HOSE-AIR CLEANER Price: $183.02 |
| 20 | 133-2991 | HOSE-AC, OUT Price: $32.31 |
| 21 | 323-14 | SCREW-HH Price: $1.34 |
| 22 | 2112-6 | CLAMP-MUFFLER Price: $7.53 |
| 23 | 2412-130 | CLAMP-HOSE Price: $2.57 |
| 24 | 3234-14 | SCREW-HHF Price: $0.61 |
| 25 | 3234-29 | SCREW-HHF Price: $1.84 |
| 26 | 33105-020 | SCREW-HHF Price: $0.54 |
| 27 | 122-0898-0P | BRACKET-ECU Price: $50.03 |
| 28 | 66-2921 | WASHER-FRICTION Price: $2.17 |
| 29 | 321-8 | SCREW-HH Price: $0.34 |
| 30 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 31 | 133-2996 | DRIVESHAFT KIT Price: $936.29 |
| 32 | 322-9 | SCREW-HH Price: $3.09 |
| 33 | 32104-32 | SCREW-HWH Price: $1.99 |
| 34 | 33104-016 | SCREW-HHF Price: $0.97 |
| 35 | 121-5592 | CONTROLLER-ENGINE Price: $3,077.07 |
| 36 | 94-1416 | ADAPTER-INDICATOR Price: $11.87 |
| 37 | 93-9164 | INDICATOR-MINI Price: $55.24 |
| 38 | 127-2612 | GUARD-PIPE, TAIL Price: $11.72 |
| 39 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 40 | 120-2949-0P | STAND ASM [PRIMED] Price: $147.91 |
| 41 | 125-8764-0P | BRACKET-TAILPIPE Price: $17.74 |
| 42 | 2412-46 | CLAMP Price: $33.99 |
| 43 | 125-8766-0P | SHIELD-HEAT Price: $15.72 |
| 44 | 108-1799-0P | HOOP - GUARD Price: $17.13 |
