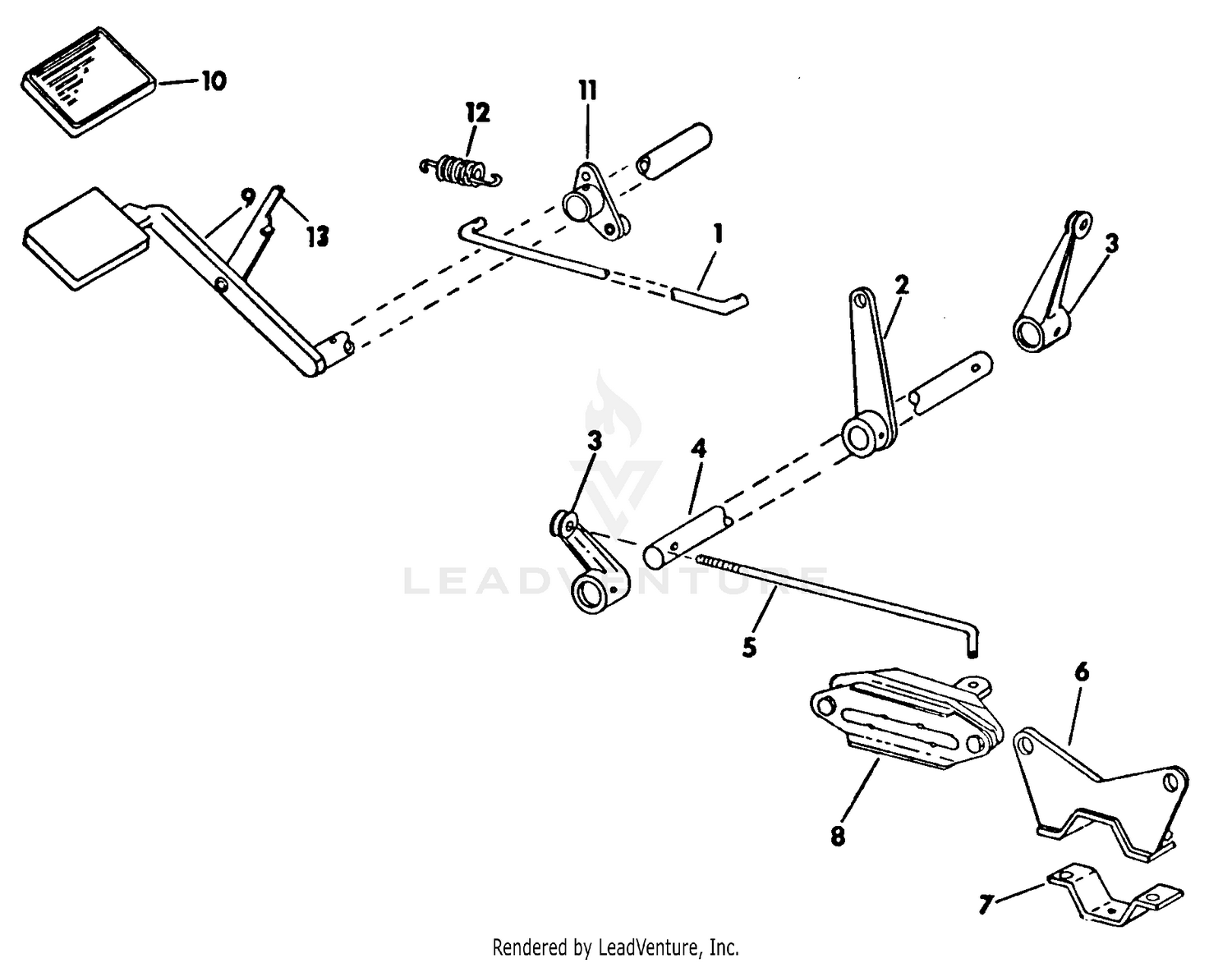

| Ref | Part Number | Description |
|---|
| 1 |
None |
Rod, Brake |
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
None |
Lever Assy, Brake |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 3 |
325-5 |
SCREW-HH Price: $1.20 |
| 3 |
IH-528630-R1 |
ARM Not Available Price: |
| 4 |
327-2 |
SCREW-HH Price: $2.44 |
| 4 |
IH-528814-R2 |
SHAFT Not Available Price: |
| 5 |
75-1100 |
AXLE SUPPORT WA *B Price: $1,097.18 |
| 5 |
IH-528817-R1 |
ROD Not Available Price: |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
719-3014 |
Bracket Assy, Caliper Price: Call Us |
| 6 |
83-5110-03 |
STOP-AXLE This part replaces 83-5110. Price: $42.11 |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
703-0222 |
FLANGE-CALIPER Not Available Price: |
| 8 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 8 |
IH-60735-C91 |
BRAKE Not Available Price: |
| 9 |
237-165 |
GROMMET Price: $15.70 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
759-3110 |
PEDAL ASSEMBLY-CLUTCH Not Available Price: |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 10 |
924-3000 |
BRAKE & CLUTCH PEDAL PAD This part replaces 724-3000. Price: $17.21 |
| 11 |
None |
Lever Assy, Clutch & Brake |
| 11 |
323-9 |
SCREW-HH Price: $1.29 |
| 12 |
83-5020 |
DISCONTINUED Price: Call Us |
| 12 |
932-3015 |
EXTENSION SPRING This part replaces 732-3015. Price: $10.72 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 13 |
67-1750 |
BUSHING Price: $0.92 |
| 14 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
83-5040 |
WASHER Price: $13.13 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
32136-13 |
NUT-SHH Price: $2.85 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 17 |
83-5100-03 |
DISCONTINUED This part replaces 83-5100. Price: Call Us |
| 18 |
83-5150 |
PIN WA Price: $46.55 |
| 19 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
237-78 |
O-RING Price: $3.85 |
| 21 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
237-21 |
O-RING Price: $0.70 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029901. Price: $14.99 |
| 23 |
75-6230 |
HOSE This part replaces 75-6220. Price: $133.10 |
| 24 |
75-6230 |
HOSE Price: $133.10 |
| 25 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 26 |
82-6910 |
BOLT - SPECIAL Price: $27.29 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 27 |
67-9410 |
WASHER Price: $2.04 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 28 |
83-5030 |
DISCONTINUED Price: Call Us |
| 29 |
83-5160 |
SHIM - .030 Price: $6.75 |
| 30 |
48-9480 |
SCREW Price: $1.97 |
| 31 |
83-4930-03 |
L/H STEERING ARM ASM This part replaces 83-4930. Price: $69.13 |
| 32 |
105-7835 |
SEAL This part replaces 71-4760. Price: $2.76 |
| 33 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 71-4740. Price: $163.79 |
| 34 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 35 |
83-5180 |
SHIM - AXLE Price: $13.55 |
| 36 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 37 |
231-141 |
DISCONTINUED Price: Call Us |
| 38 |
241-121 |
WHEEL ASM This part replaces 217-121. Price: $162.77 |
| 39 |
71-4450 |
BOLT-LUG Price: $3.29 |
| 40 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 41 |
83-7460-03 |
SPACER-WHEEL This part replaces 83-7460. Price: $13.13 |
| 42 |
68-6823 |
STEERABLE DRIVE AXLE Price: $9,139.12 |
| 43 |
5-1226 |
WASHER Price: $3.90 |
| 44 |
75-4180-03 |
MASKED PIN ASM This part replaces 75-4180. Price: $136.86 |
| 45 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 46 |
83-4950-03 |
R/H STEERING ARM ASM This part replaces 83-4950. Price: $69.13 |
| 47 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 48 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 49 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
874760636 |
BOLT Price: $4.99 |
| 55 |
532414736 |
SPACER.BRACE.AXLE Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 585338801. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683702. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 78 |
532057079 |
THRUST WASHER Price: $1.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
