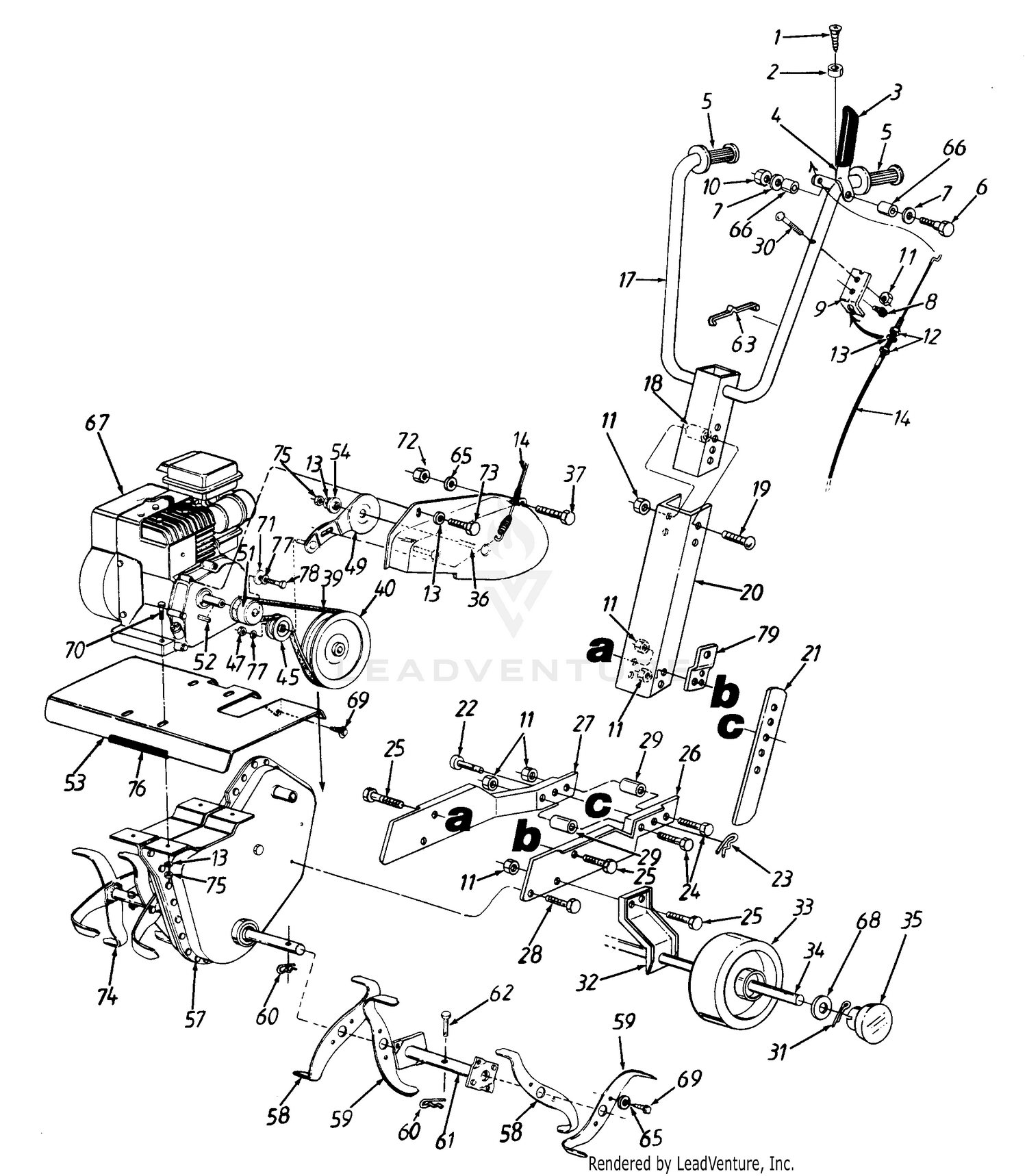

| Ref | Part Number | Description |
|---|
| 1 |
710-1167 |
TAP SCREW 10X16X.50 Not Available Price: |
| 2 |
720-0263 |
BUMPER-RECESS Not Available Price: |
| 3 |
731-0473 |
GRIP Price: $3.85 |
| 4 |
686-0002-0637 |
Clutch Lever Ass'y. This part replaces 686-0002. Price: $35.88 |
| 5 |
720-0233 |
LIFT HANDLE GRIP Not Available Price: |
| 7 |
736-3090 |
Fl-Wash. 1/4" I.D. Price: $5.79 |
| 8 |
710-1201 |
SCREW-SLOT PL-250-20X0.50 Not Available Price: |
| 9 |
15093C |
BRACKET-CL Not Available Price: |
| 10 |
712-0324 |
Lock Nut 1/4-20 Thd. Price: $3.38 |
| 11 |
712-0429 |
Lock Nut 5/16-18 Thd. Price: $3.56 |
| 12 |
712-0256 |
HEX JAM NUT 5/16-24 Not Available Price: |
| 14 |
946-0926 |
Clutch Control Cable This part replaces 746-0509. Price: $37.31 |
| 17 |
649-0153 |
UPPER HAND Not Available Price: |
| 18 |
750-0848 |
SPACER Not Available Price: |
| 19 |
710-0572 |
Carr. Bolt 5/16-18 x 2-1/2" Lg. Price: $3.75 |
| 20 |
786-0013 |
FRAME-CHANNEL HDL Not Available Price: |
| 22 |
711-0653 |
Clevis Pin Price: $3.37 |
| 23 |
714-0145 |
Hairpin Cotter Price: $4.42 |
| 26 |
786-0011 |
FRAME HALF Not Available Price: |
| 27 |
786-0010 |
FRAME HALF-RH Not Available Price: |
| 28 |
710-0607 |
Hex Tap. Scr. 5/16-18 x 1/2" Lg. Price: $6.06 |
| 29 |
750-0808 |
SPACER Not Available This part replaces 750-0845. Price: |
| 30 |
710-1090 |
Hex Bolt 5/16-18 x 1-1/4" Lg. Price: $3.15 |
| 31 |
714-0111 |
Cotter Pin 3/32" Dia. x 1.0" This part replaces 714-3017. Price: $4.20 |
| 32 |
786-0012 |
WHEEL BRACKET Not Available Price: |
| 33 |
634-0013 |
WHEEL-6" Not Available Price: |
| 34 |
738-0855 |
AXLE-WHEEL (MINI T Not Available Price: |
| 35 |
720-0258 |
HUB CAP Not Available Price: |
| 36 |
686-0021 |
BELT COVER Not Available Price: |
| 39 |
954-0216 |
BELT-V 3/8 X 29 NLAUD Not Available This part replaces 754-0216. Price: |
| 40 |
756-0287 |
PULLEY Not Available Price: |
| 45 |
756-0199 |
Flat Idler Pulley Price: $22.53 |
| 47 |
712-0116 |
Hex Jam L-Nut 3/8-24 Thd. Price: $3.95 |
| 49 |
784-0016 |
IDLER ARM Not Available Price: |
| 51 |
756-0286 |
PULLEY Not Available Price: |
| 52 |
714-0122 |
Square Key 3/16" x .75" Lg. Price: $3.07 |
| 53 |
04765 |
Tine Shield Price: $12.00 |
| 54 |
936-0289 |
Bushing, Shoulder, .320 ID x .135 This part replaces 736-0289. Price: $6.01 |
| 57 |
686-0022 |
CHAIN CASE ASS'Y COMP. Not Available Price: |
| 58 |
04922 |
TINE (RH) Not Available Price: |
| 59 |
04923-0637 |
TINE (LH) Not Available This part replaces 04923. Price: |
| 60 |
714-0149B |
Hairpin Cotter Price: $3.95 |
| 61 |
04918-0637 |
ADAPTER ASSEMBLY-TINE Not Available This part replaces 04918. Price: |
| 62 |
711-0702 |
CLEVIS PIN .312 x 1.50 Not Available Price: |
| 63 |
726-0306 |
PLASTIC TIE Not Available Price: |
| 66 |
750-0846 |
SPLIT SPACER Not Available Price: |
| 67 |
N/A |
Engine |
| 68 |
736-0185 |
Fl-Wash. 3/8" I.D. Price: $3.43 |
| 69 |
710-0599 |
Tap Scr. 1/4-20 x 1/2" Lg. Price: $3.86 |
| 71 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1" O.D. Price: $3.93 |
| 72 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 73 |
710-0107 |
HEX SCREW 5/16-24 x .50 Not Available Price: |
| 74 |
04921 |
TINE ASS'Y. COMP. Not Available Price: |
| 76 |
731-0511-12 |
Trim Strip Price: $19.74 |
| 78 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
