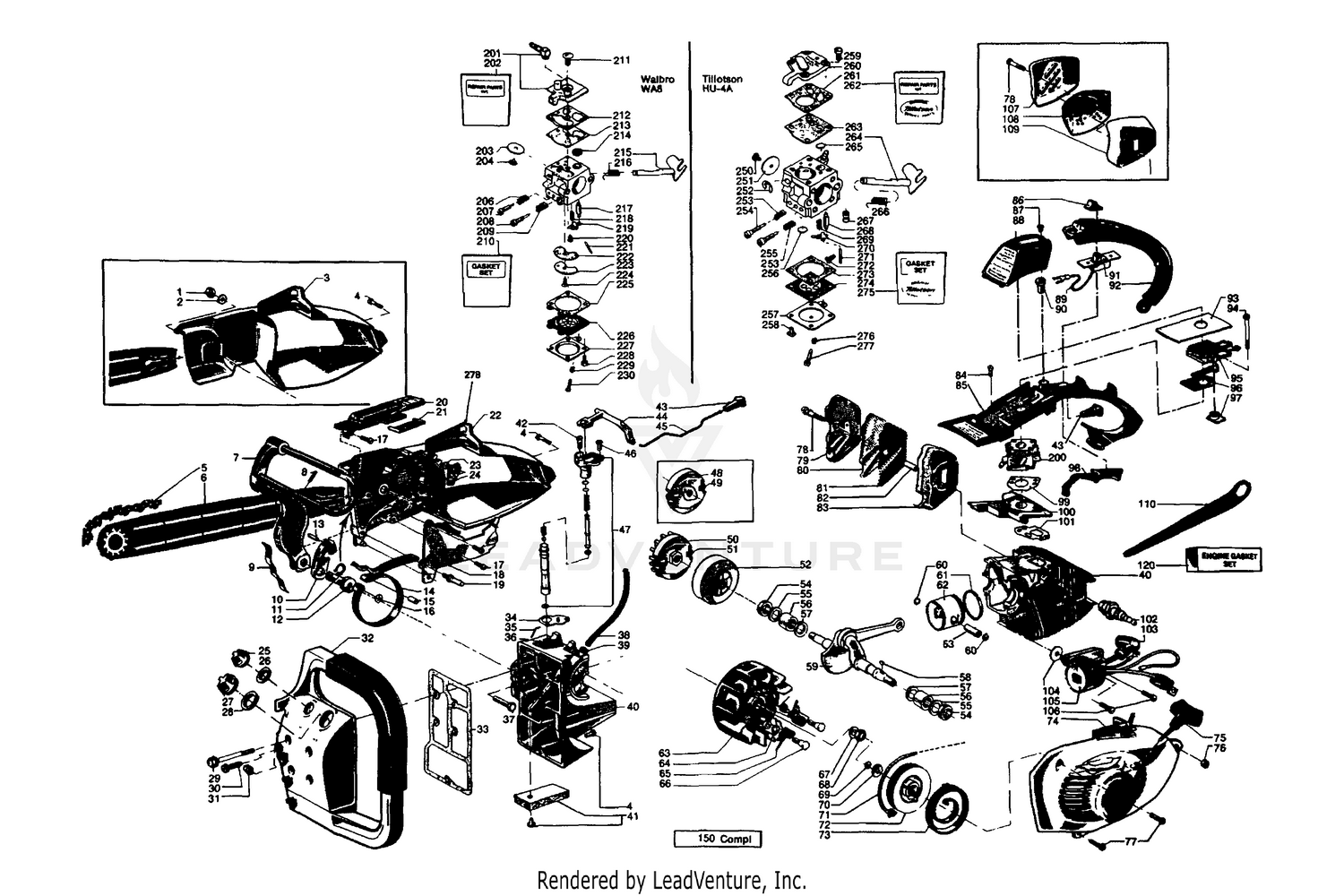

34 General Assembly
Parts (202)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505180073 | USE 504 350917 NUT Price: $3.33 |
| 1 | 58-0470 | DISCONTINUED X-REF Price: Call Us |
| 2 | 507520803 | NUT This part replaces 505180359. Price: $0.99 |
| 2 | 68-6480 | BUSHING-FLANGE Price: $3.19 |
| 3 | 325-17 | SCREW-HH This part replaces 48-9260. Price: $2.90 |
| 3 | 505320864 | Price: $36.41 |
| 4 | 33115-030 | SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 4 | 530015239 | SCREW-1/4-20 X 13/16 This part replaces 505736210. Price: $2.99 |
| 5 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 5 | 501716402 | Price: Call Us |
| 5 | 501736302 | Price: Call Us |
| 6 | 501716502 | Price: $16.27 |
| 6 | 501736202 | Price: Call Us |
| 6 | 52-6180 | SPACER Price: $1.65 |
| 7 | 505318257 | Price: Call Us |
| 7 | 60-3250 | WASHER Price: $5.21 |
| 8 | 33025-00 | NUT-LOCK, NI This part replaces 48-9520. Price: $0.54 |
| 8 | 505317569 | Price: $1.62 |
| 9 | 3256-56 | WASHER-FLAT Price: $1.15 |
| 9 | 505317551 | Price: $3.67 |
| 10 | 505317550 | USE 507 317550 LEVER Price: $3.33 |
| 10 | 60-0440 | DISCONTINUED Price: Call Us |
| 11 | 325-7 | SCREW-HH This part replaces 48-9490. Price: $1.53 |
| 11 | 505317574 | Price: $3.33 |
| 12 | 505317552 | Price: $33.34 |
| 12 | 99-6067 | LIFT ARM #2 This part replaces 58-0460. Price: $826.21 |
| 13 | 505317573 | Price: $2.42 |
| 14 | 505317556 | Price: $16.64 |
| 14 | 60-1280 | PIN Price: $3.53 |
| 15 | 505317572 | Price: $2.50 |
| 15 | 58-4380 | PIN Price: $25.11 |
| 16 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 16 | 505317568 | USE 507 508500 WASHER Price: $3.33 |
| 17 | 505317570 | Price: Call Us |
| 18 | 505317557 | Price: $8.40 |
| 19 | 505318258 | Price: $5.75 |
| 19 | 62-6370 | SEAL KIT This part replaces 60-3630. Price: $50.53 |
| 20 | 505315383 | Price: $9.35 |
| 20 | 62-6370 | SEAL KIT This part replaces 60-3620. Price: $50.53 |
| 21 | 505317554 | Price: $4.75 |
| 21 | 62-6370 | SEAL KIT This part replaces 60-3610. Price: $50.53 |
| 22 | 505320868 | Price: Call Us |
| 22 | 60-3660 | SCREW Price: $1.17 |
| 23 | 505317571 | Price: Call Us |
| 23 | 62-6370 | SEAL KIT This part replaces 60-3650. Price: $50.53 |
| 24 | 505317553 | Price: $4.75 |
| 24 | 59-7340 | ORIFICE (0.041) Price: $23.04 |
| 25 | 237-42 | O-RING Price: $2.78 |
| 25 | 505180638 | Price: $8.25 |
| 26 | 340-2 | FITTING-STRAIGHT Price: $11.43 |
| 26 | 505180258 | Price: Call Us |
| 27 | 237-22 | O-RING Price: $2.43 |
| 27 | 505317888 | Price: $10.30 |
| 28 | 505180186 | USE 505 094012 GASKET Price: $3.33 |
| 29 | 48-9600 | DISCONTINUED Price: Call Us |
| 29 | 505806010 | Price: $5.58 |
| 30 | 48-9540 | NUT-LOCK, HEX NI Price: $0.61 |
| 30 | 505800092 | This part replaces 505732060. Price: $6.25 |
| 31 | 115-8012 | CYLINDER-HYDRAULIC This part replaces 58-5450. Price: $678.04 |
| 31 | 505180282 | Price: Call Us |
| 32 | 505320867 | Price: $88.63 |
| 32 | 61-3610 | WARNING DECAL Price: $16.67 |
| 33 | 505313478 | GASKET Price: $7.77 |
| 34 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 34 | 505180252 | Price: $4.74 |
| 35 | 33095-00 | WASHER-FLAT This part replaces 48-9580. Price: $0.25 |
| 35 | 505180015 | Price: $8.25 |
| 36 | 505043262 | Price: $6.45 |
| 37 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 37 | 505180013 | Price: $4.70 |
| 38 | 505180206 | Price: Call Us |
| 39 | 505177229 | Price: Call Us |
| 40 | 505320866 | Price: $123.98 |
| 41 | 505180635 | USE 504 350848 FUEL FILTE Price: $3.33 |
| 42 | 505730810 | Price: $3.12 |
| 43 | 505180190 | Price: $5.34 |
| 44 | 505312808 | Price: $12.92 |
| 45 | 505312822 | Price: $12.28 |
| 46 | 505720610 | Price: $3.00 |
| 47 | 505180792 | Price: $25.28 |
| 48 | 505180647 | REPL BY 504 35 07-90 Price: $44.99 |
| 49 | 505180373 | Price: Call Us |
| 50 | 505318143 | Price: Call Us |
| 51 | 505180373 | Price: Call Us |
| 52 | 505071956 | Price: Call Us |
| 53 | 505180017 | Price: Call Us |
| 54 | 505180033 | USE 504 350707 SEAL RING Price: $3.33 |
| 55 | 505180166 | USE 504 350706 WASHER Price: $3.33 |
| 56 | 505180030 | USE 504 350705 NEEDLE BEA Price: $3.33 |
| 57 | 505180024 | Price: Call Us |
| 58 | 505180303 | Price: Call Us |
| 59 | 505318270 | USE 507 101602 CRANKSHAFT Price: $3.33 |
| 60 | 505180047 | Price: Call Us |
| 61 | 505180050 | Price: Call Us |
| 62 | 507101601 | PISTON CON ROD ASSY. This part replaces 505312836. Price: $70.99 |
| 63 | 505317683 | USE 507 317682 FLYWHEEL Price: $3.33 |
| 64 | 505180086 | USE 504 350732 SPRING Price: $3.33 |
| 65 | 505180085 | USE 504 350890 STARTER PA Price: $3.33 |
| 66 | 505180084 | Price: Call Us |
| 67 | 505023622 | Price: Call Us |
| 68 | 505850365 | Price: Call Us |
| 69 | 505180324 | Price: Call Us |
| 70 | 505180323 | Price: Call Us |
| 71 | 505318303 | USE 507 100075 ROPE Price: $3.33 |
| 72 | 505180298 | USE 504 350724 STARTER PU Price: $3.33 |
| 73 | 505315882 | USE 504 350725 RECOIL SPR Price: $3.33 |
| 74 | 505320863 | Price: $101.87 |
| 75 | 505180337 | USE 507 431441 STARTER HA Price: $3.33 |
| 76 | 505850210 | Price: $3.92 |
| 77 | 505736410 | Price: $5.92 |
| 78 | 505727210 | USE 507 727210 SCREW Price: $3.33 |
| 79 | 505317578 | Price: $14.30 |
| 80 | 505317582 | Price: $11.60 |
| 81 | 505317581 | Price: $11.75 |
| 82 | 505317583 | Price: $3.08 |
| 83 | 505317577 | Price: $15.45 |
| 84 | 50531280 | Price: Call Us |
| 85 | 505312802 | Price: Call Us |
| 86 | 505312824 | Price: $3.92 |
| 87 | 505790660 | Price: $6.83 |
| 88 | 505312821 | Price: $19.61 |
| 89 | 505312825 | Price: $5.80 |
| 90 | 505312803 | Price: $11.40 |
| 91 | 505312823 | Price: $9.35 |
| 92 | 505312806 | Price: $19.61 |
| 93 | 505180174 | Price: Call Us |
| 94 | 505728610 | Price: $6.65 |
| 95 | 505312804 | Price: $6.25 |
| 96 | 5053128415 | Price: Call Us |
| 97 | 505312800 | Price: $5.33 |
| 98 | 505851100 | THROTTLE TRIGGER NLA This part replaces 505312807. Price: $13.12 |
| 99 | 505180098 | Price: $5.50 |
| 100 | 505180096 | Price: $21.45 |
| 101 | 505180097 | Price: $3.03 |
| 102 | 505180523 | USE 503 235203 SPARK PLUG Price: $3.33 |
| 103 | 505317796 | Price: $10.85 |
| 104 | 505317261 | Price: $2.42 |
| 105 | 505317699 | USE 507 317699 COIL Price: $3.33 |
| 106 | 505317898 | Price: Call Us |
| 107 | 505180136 | Price: $17.42 |
| 108 | 505180131 | Price: $12.28 |
| 109 | 505180135 | Price: $20.85 |
| 110 | 505180522 | Price: $11.75 |
| 120 | 505180710 | Price: $17.14 |
| 200 | 505180095 | Price: $134.55 |
| 201 | 505520103 | Price: $13.52 |
| 202 | 505520130 | Price: $28.05 |
| 203 | 505520105 | THROTTLE FLAP Price: $2.55 |
| 204 | 505468701 | Price: Call Us |
| 206 | 505467301 | Price: Call Us |
| 207 | 505520124 | Price: $7.80 |
| 208 | 505520123 | Price: $8.60 |
| 209 | 505520119 | Price: Call Us |
| 210 | 501883401 | REPAIR KIT This part replaces 505520131. Price: $10.97 |
| 211 | 501466901 | SCREW Price: $7.99 |
| 212 | 505520108 | GASKET, FUEL PUMP Price: $2.99 |
| 213 | 505520111 | FUEL PUMP DIAPHRAGM Price: $1.94 |
| 214 | 501666101 | FUEL INLET SCREEN This part replaces 501469801. Price: $12.99 |
| 215 | 505520104 | Price: $10.25 |
| 216 | 505520122 | SPRING, THROTTLE RETURN Price: $3.33 |
| 217 | 503117001 | VALVE/INLET. This part replaces 501466701. Price: $19.99 |
| 218 | 505520121 | Price: $1.25 |
| 219 | 505520127 | LEVER Price: $4.99 |
| 220 | 505520115 | Price: Call Us |
| 221 | 505520125 | FULCRUM PIN Price: $6.99 |
| 222 | 501781301 | GASKET This part replaces 505520109. Price: $0.45 |
| 223 | 505520126 | USE 505 316765 PLATE Price: $3.33 |
| 224 | 505520116 | Price: Call Us |
| 225 | 505520110 | GASKET, METERING SIDE Price: $3.99 |
| 226 | 503896701 | DIAPHRAGM This part replaces 505520113. Price: $44.99 |
| 227 | 505520102 | Price: $10.50 |
| 228 | 503584601 | SCREW This part replaces 501468801. Price: $2.99 |
| 229 | 505316724 | Price: $6.83 |
| 230 | 505520112 | Price: $0.88 |
| 250 | 503652701 | SCREW This part replaces 501223001. Price: $4.99 |
| 251 | 505316396 | Price: $6.50 |
| 252 | 501222901 | CLIP NLA Price: $2.28 |
| 253 | 501221701 | SPRING Price: $3.99 |
| 254 | 505316389 | USE 501 713401 ADJ SCREW Price: $3.33 |
| 255 | 505316391 | Price: $11.55 |
| 256 | 501712501 | Price: $3.02 |
| 257 | 501712801 | DIAPHRAGM COVER NLA This part replaces 505316388. Price: $26.73 |
| 258 | 503486301 | COVER SCREW This part replaces 501221101. Price: $3.99 |
| 259 | 501713301 | Price: $3.04 |
| 260 | 505316378 | FUEL PUMP COVER Price: $3.33 |
| 261 | 501713001 | GASKET, PUMP SIDE Price: $0.63 |
| 262 | 505316398 | Price: $35.07 |
| 263 | 501713101 | FUEL PUMP DIAPHRAGM Price: $3.03 |
| 264 | 505316393 | THROTTLE SHAFT Price: $3.33 |
| 265 | 578004601 | FILTER This part replaces 501222401. Price: $0.99 |
| 266 | 505316395 | Price: $3.75 |
| 267 | 501714501 | Price: Call Us |
| 268 | 503117001 | VALVE/INLET. This part replaces 501466701. Price: $19.99 |
| 269 | 505316390 | USE 502 058102 LEVER SPRI Price: $3.33 |
| 270 | 501713801 | LEVER Price: $0.91 |
| 271 | 501713901 | Price: $6.83 |
| 272 | 501222201 | SCREW Price: $1.30 |
| 273 | 501712601 | GASKET, METERING SIDE Price: $2.61 |
| 274 | 501712701 | METERING DIAPHRAGM Price: $6.02 |
| 275 | 502058701 | Price: Call Us |
| 276 | 501220901 | METERING DIAPHRAGM Price: $14.99 |
| 277 | 501221801 | SCREW Price: $3.99 |
