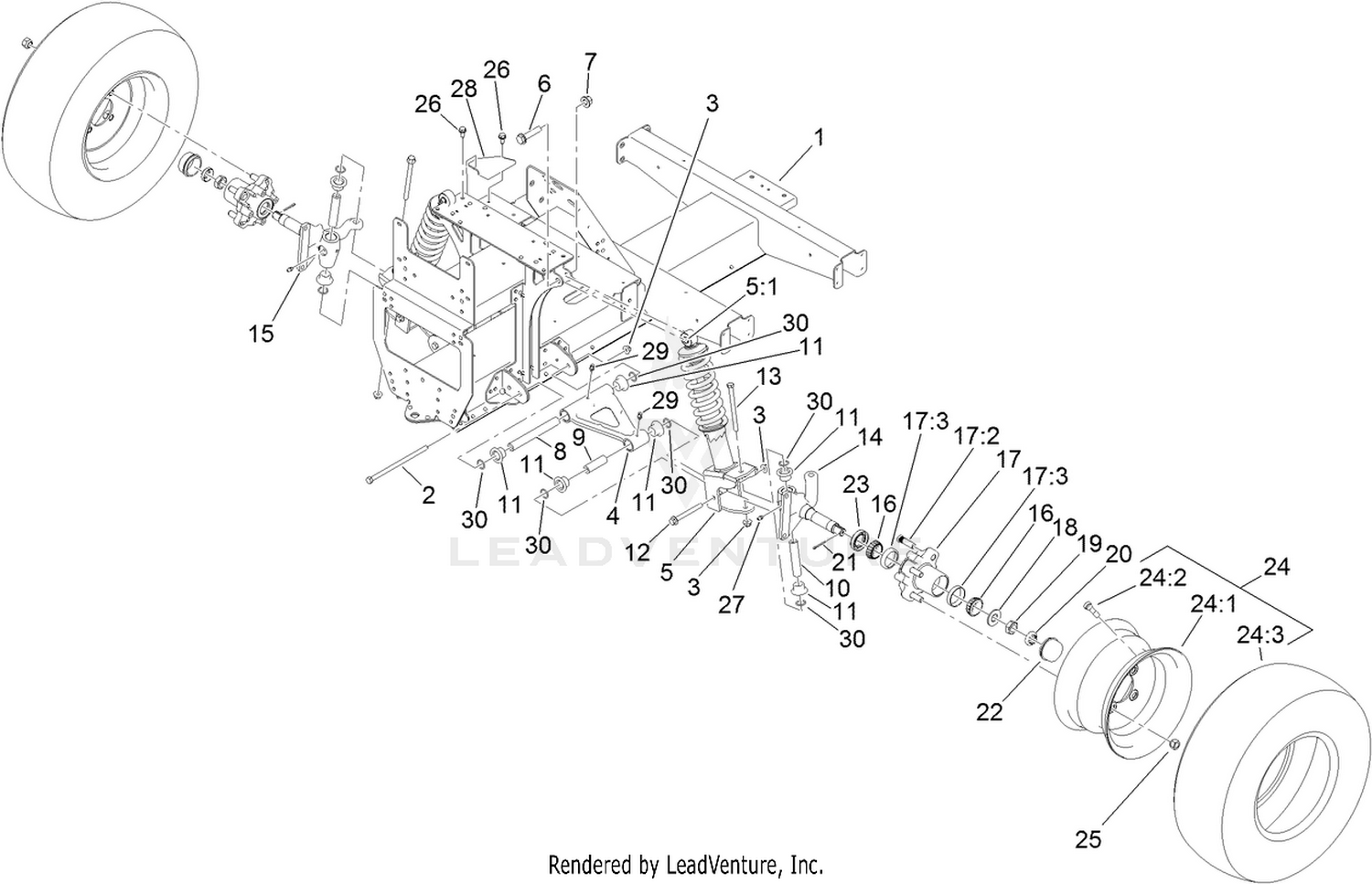

| Ref | Part Number | Description |
|---|
| 1 |
127-7718-03 |
FRAME-FRONT Price: $1,460.51 |
| 2 |
131-8572 |
SCREW-HF Price: $15.45 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
144-2161 |
CONTROL ARM ASM This part replaces 131-8345. Price: $93.55 |
| 5 |
139-4484 |
STRUT ASM, 250 LB (16.33" EXT LENGTH) This part replaces 127-8776. Price: $146.30 |
| 6 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 7 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 8 |
131-8581 |
SLEEVE-CONTROL ARM, INNER Price: $14.28 |
| 9 |
131-8583 |
SLEEVE-CONTROL ARM, OUTER Price: $6.67 |
| 10 |
131-8582 |
SLEEVE-KINGPIN Price: $15.03 |
| 11 |
133-0643 |
BUSHING-FLANGE, O-RING Price: $4.31 |
| 12 |
116-4701 |
SCREW-HHF Price: $2.59 |
| 13 |
131-8571 |
SCREW-HF Price: $4.04 |
| 14 |
144-2162 |
SPINDLE ASM, LH This part replaces 127-8825-03. Price: $188.40 |
| 15 |
144-2163 |
SPINDLE ASM, RH This part replaces 127-8826-03. Price: $188.40 |
| 16 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 17 |
127-8851 |
FRONT HUB ASM Price: $114.62 |
| 18 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 19 |
3220-7 |
NUT-JAM Price: $4.09 |
| 20 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 21 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 23 |
112-1690 |
SEAL-OIL Price: $12.15 |
| 24 |
131-8319 |
TIRE/WHEEL ASM Price: $333.12 |
| 25 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 26 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
131-8339-03 |
REINFORCEMENT-TOWER Price: $10.02 |
| 29 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
