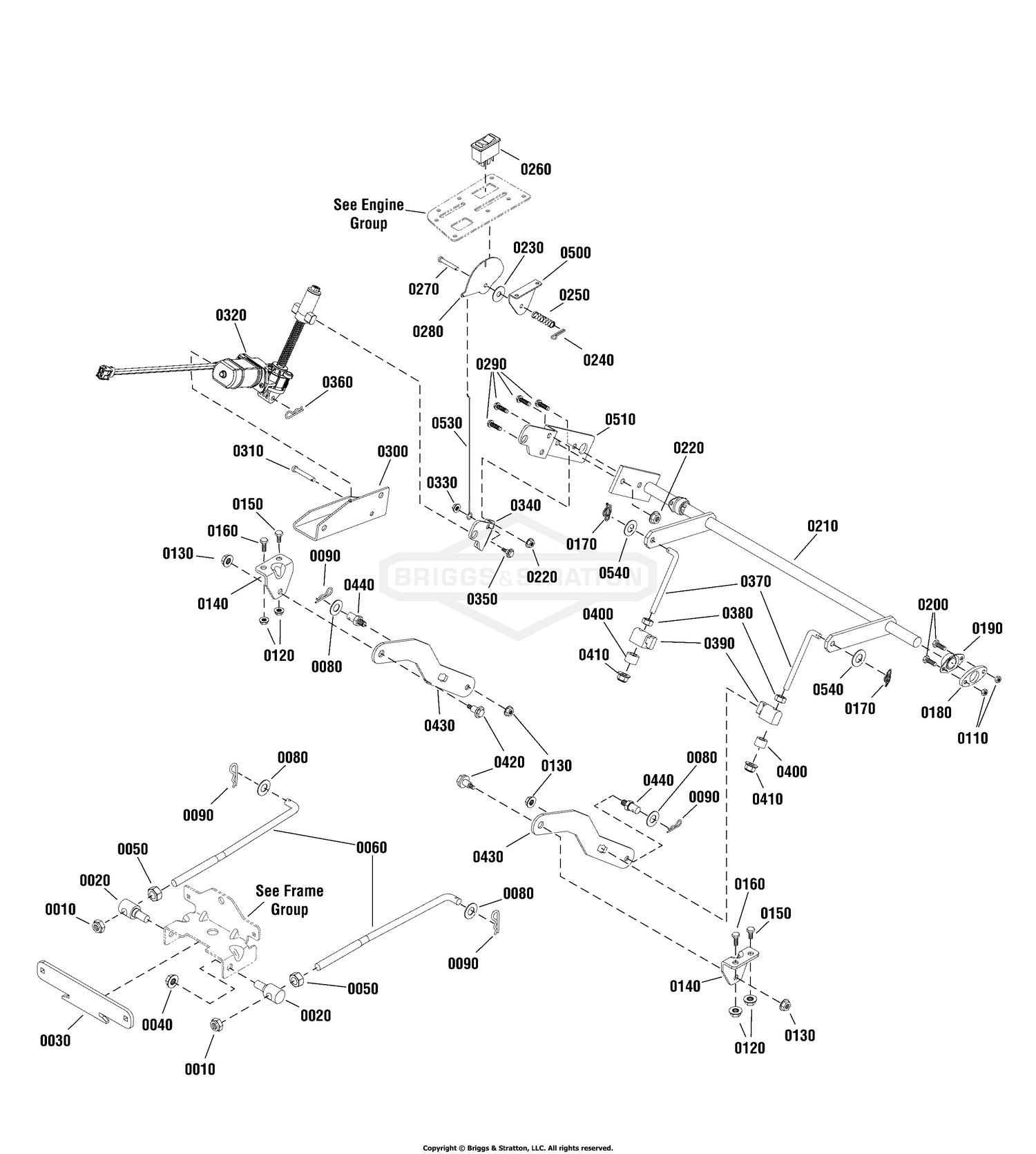

| Ref | Part Number | Description |
|---|
| 0010 |
1960379SM |
NUT, Hex Lock, 1/2-13 Price: $4.38 |
| 0020 |
1737417YP |
TRUNNION, Unthreaded Price: $18.96 |
| 0030 |
7301097BMYP |
SUPPORT, Hanger (46/52) Price: $9.29 |
| 0040 |
1930644SM |
NUT-HEX FLANGE 1/2-1 Price: $3.06 |
| 0050 |
1913744SM |
NUT, Hex Jam, 1/2-13 Price: $4.26 |
| 0060 |
1736081YP |
ROD, Front Bail (1/2-13 thread) 46, 52 MWR Price: $12.01 |
| 0080 |
703853 |
WASHER, 0.516IDX1OD This part replaces 1960170SM. Price: $4.49 |
| 0090 |
703300 |
PIN, 3/32 X 1.6 This part replaces 7091503SM. Price: $3.50 |
| 0110 |
703251 |
NUT, 1/4-20 This part replaces 7092126SM. Price: $4.41 |
| 0140 |
7300028BMYP |
BRACKET, Deck Hanger Price: $13.15 |
| 0150 |
703823 |
BOLT, 5/16-18X0.625 This part replaces 7091811SM. Price: $3.39 |
| 0160 |
5025011X8FS |
BOLT This part replaces 7027168SM. Price: $3.26 |
| 0170 |
703355 |
COTTER PIN, 3/8 This part replaces 7091593SM. Price: $3.50 |
| 0180 |
7301125BMYP |
SPACER, Bearing, .25" Price: $11.79 |
| 0190 |
7026196SM |
BEARING, Flange, .75 ID PM Price: $6.46 |
| 0200 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 7091495SM. Price: $3.29 |
| 0220 |
703333 |
NUT, 3/8-16 This part replaces 7091619SM. Price: $4.26 |
| 0230 |
7023649YP |
WASHER, 5/16 Nylon Price: $3.73 |
| 0260 |
1734141SM |
SWITCH, Rocker Electric Height-Of-Cut Price: $44.22 |
| 0280 |
7301119BCYP |
LEVER, Indicator, Height-Of-Cut Price: $6.99 |
| 0290 |
5025013X8SM |
BOLT, 3/8-16 X 1" GD5 This part replaces 7091304SM. Price: $3.29 |
| 0300 |
7301104BMYP |
BRACKET, Primary Deck Lift Price: $12.85 |
| 0310 |
703063 |
PIN, SHEAR This part replaces 1668344SM. Price: $3.40 |
| 0320 |
7103818YP |
MOTOR, Actuator, Lift, Deck Price: $137.79 |
| 0330 |
703233 |
NUT, 1/4-20, GR5 This part replaces 7091584SM. Price: $3.94 |
| 0340 |
7301105BMYP |
BRACKET, Lift, Deck, Secondary Price: $13.90 |
| 0360 |
703430 |
PIN, 13X1.19 This part replaces 1722460SM. Price: $2.87 |
| 0370 |
1734217SM |
ROD, Mower Lift (3/8-16 thread) Yellow Price: $13.14 |
| 0380 |
703577 |
NUT, HEX, 3/8-16 This part replaces 1916950SM. Price: $3.72 |
| 0390 |
1731894SM |
TRUNNION, Powdered Metal, Yellow, Regent Price: $8.76 |
| 0400 |
1666294SM |
SPACER, .385 ID x .6697 OD x .455 Long, PM YEL Price: $4.64 |
| 0410 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK This part replaces 1960687SM. Price: $3.82 |
| 0420 |
1732129SM |
SHOULDER BOLT, 3/8-16 x .94, BZ Price: $5.19 |
| 0430 |
7301098BMYP |
BAR, Rear Lift Price: $26.64 |
| 0500 |
7301120BMYP |
BRACKET, Indicator, Height-Of-Cut Price: $8.69 |
| 0510 |
7301103BMYP |
BRACKET, Motor Mount Price: $12.85 |
| 0530 |
7103956YP |
ROD, Indicator, Height-Of-Cut Price: $8.66 |
