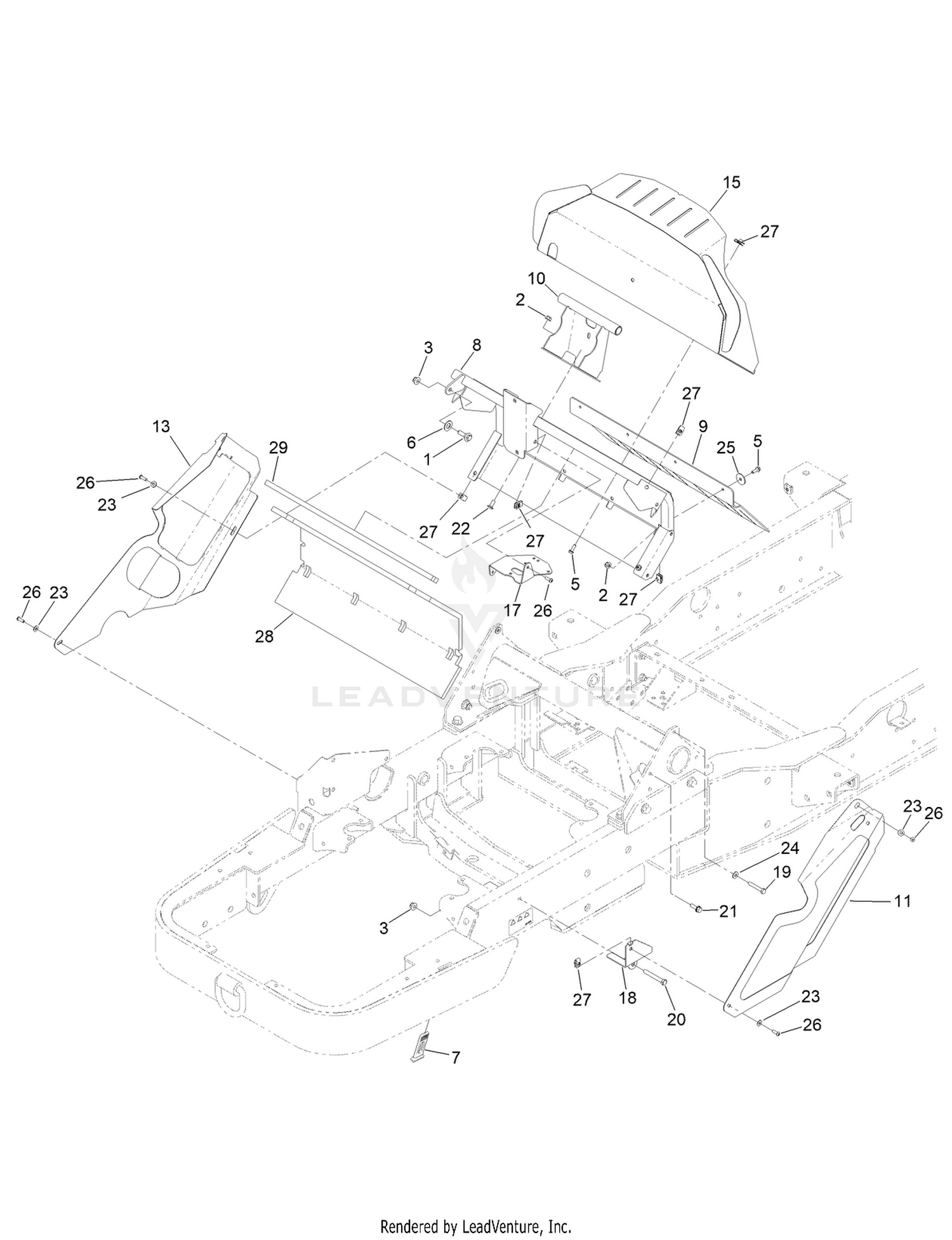

Screen Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 614672 | SCREW-SHOULDER, HWH Price: $2.59 |
| 2 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 115-5103 | SCREW-HHF Price: $0.34 |
| 6 | 117-1240 | WASHER Price: $1.27 |
| 7 | 131-8402 | STRAP-HOLD DOWN Price: $4.38 |
| 8 | 138-8130-03 | MOUNT-MID Price: Call Us |
| 9 | 138-1857 | FLAP-AIR Price: $39.97 |
| 10 | 138-8124-0P | HINGE ASM [PRIMED] Price: $92.79 |
| 11 | 140-0574-03 | SHIELD ASM-LH [BLACK] Price: $241.93 |
| 13 | 140-0570 | SHIELD ASM-RH Price: $194.39 |
| 15 | 138-1870-03 | SHIELD-DASH Price: $280.31 |
| 17 | 138-1876 | BRACKET-SENSOR Price: Call Us |
| 18 | 138-1877-01 | BRACKET-SHIELD Price: $17.27 |
| 19 | 322-10 | SCREW-HH Price: $0.70 |
| 20 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 21 | 3234-29 | SCREW-HHF Price: $1.84 |
| 22 | 3230-23 | SCREW-CARR Price: $0.89 |
| 23 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 24 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 25 | 3256-57 | WASHER-FLAT Price: $0.41 |
| 26 | 3274-69 | SCREW-HSBH Price: $0.43 |
| 27 | 107069 | CLIP Price: $1.79 |
| 28 | 138-2873 | FOAM-BARRIER, HEAT Price: $35.38 |
