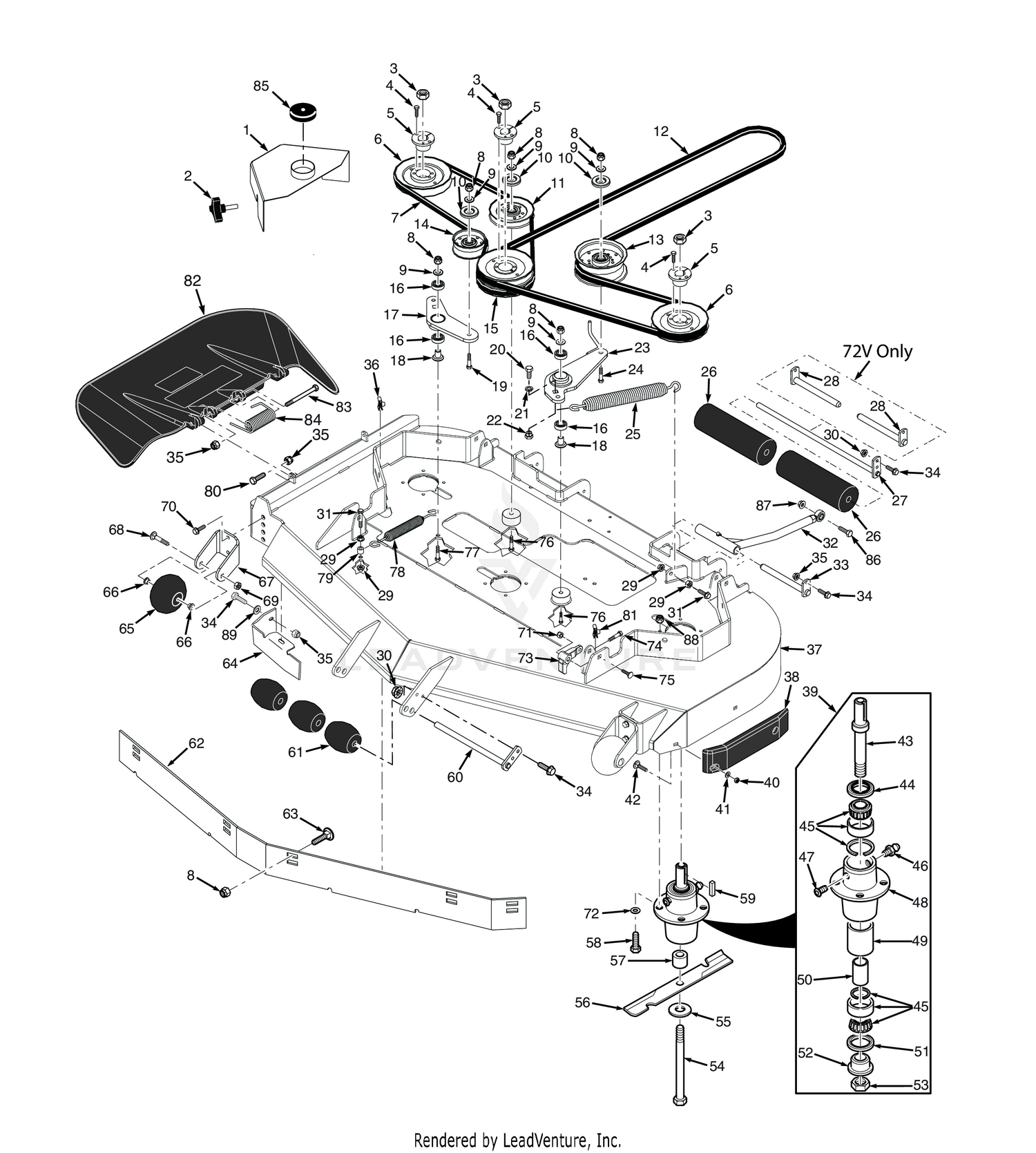

| Ref | Part Number | Description |
|---|
| 1 |
462409 |
Belt Cover, 72V Price: Call Us |
| 2 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 3 |
04020-09 |
Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us |
| 4 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 5 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 6 |
484050 |
Pulley, 7.50" Dia. Price: Call Us |
| 7 |
484159 |
Belt Price: Call Us |
| 8 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 9 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 10 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 11 |
48181 |
IDLER PULLEY, "V" GROOVE Price: Call Us |
| 12 |
484088 |
Belt, Deck Drive Price: Call Us |
| 13 |
483210 |
Pulley, Idler 5" Dia. Price: Call Us |
| 14 |
486045 |
Pulley, 3-1/2" Dia. Price: Call Us |
| 15 |
484051 |
Pulley, 7.50" Dia. Double Groove Price: Call Us |
| 16 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 18 |
43689 |
Pivot, Idler Short Price: Call Us |
| 19 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 20 |
04001-27 |
Bolt, Hex Head 7/16-14 x 1" Price: Call Us |
| 21 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 22 |
43686 |
Boss, Spring Anchor - LH Price: Call Us |
| 23 |
462269 |
Idler Arm Price: Call Us |
| 24 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 25 |
483246 |
Spring, L.H. Deck Drive Price: Call Us |
| 26 |
48038 |
Wheel, Anti-ScalpRelief Fitting, Tapered Spindle Price: Call Us |
| 28 |
45944 |
Shaft Weldment, Guide Roller Price: Call Us |
| 29 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 30 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 31 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 32 |
462225 |
Pusharm Assembly, LH Price: Call Us |
| 33 |
451240 |
Shaft Weldment, Pusharm Price: Call Us |
| 34 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 35 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 36 |
04110-04 |
U-Nut, 3/8-16 Price: Call Us |
| 37 |
463244 |
Cutter Deck w/Decals Price: Call Us |
| 38 |
483174 |
Pad, Deck Wear Price: Call Us |
| 39 |
461663 |
Cutter Spindle Assembly Price: Call Us |
| 40 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 41 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V) Price: Call Us |
| 42 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 43 |
43589 |
Spindle Shaft, Tapered Brng Price: Call Us |
| 44 |
481024 |
SEAL, 2.00 O.D. X 1.50 BORE Price: Call Us |
| 45 |
481022 |
Tapered Bearing Set (Two Bearings W/Race) Price: Call Us |
| 46 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 47 |
48677 |
RELIEF FITTING, TAPERED BEARING SPINDLE Price: Call Us |
| 48 |
43644 |
Housing, Spindle Price: Call Us |
| 49 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 50 |
43296 |
SLEEVE, CUTTER SPINDLE Price: Call Us |
| 51 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 52 |
43297 |
SPINDLE BUSHING, BOTTOM Price: Call Us |
| 53 |
481035 |
Nut , Spec ial 1 -1/ 1 6 - 1 8 Price: Call Us |
| 54 |
04001-41 |
BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5 Price: Call Us |
| 55 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 56 |
482882 |
Cutter Blade, 24-1/2" Price: Call Us |
| 57 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 58 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8 Price: Call Us |
| 59 |
04063-08 |
Key, 1/4 x 1/4 x 2.0" Price: Call Us |
| 60 |
45944 |
Shaft Weldment, Guide Roller Price: Call Us |
| 61 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 62 |
424917 |
Baffle, Custom Cut - 72V Price: Call Us |
| 63 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 64 |
424856 |
Baffle, Turbo - 72V Price: Call Us |
| 65 |
481632 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 66 |
48100-15 |
Bushing, .376" I.D. Oilite Price: Call Us |
| 67 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 68 |
04003-26 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 69 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 70 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 71 |
04021-11 |
HEX LOCKNUT, ELASTIC STOP, 7/16-14 Price: Call Us |
| 72 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 73 |
485528 |
Lever, Deck Level Price: Call Us |
| 74 |
04107-05 |
Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock Price: Call Us |
| 75 |
04003-42 |
Bolt, Carriage 7/16-14 x 2-1/4" Price: Call Us |
| 76 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 77 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 78 |
483703 |
Spring, RH Deck Drive Price: Call Us |
| 79 |
43063 |
SPACER, IDLER Price: Call Us |
| 80 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 81 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 82 |
462132 |
Discharge Chute Assy. 72V Price: Call Us |
| 83 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
| 84 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 85 |
484368 |
Cap, Spindle 61" Only Price: Call Us |
| 86 |
04001-128 |
DISCONTINUED Price: Call Us |
| 87 |
04021-23 |
Nut, Center Lock 5/8-11 Price: Call Us |
| 88 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 462226 |
Pusharm |
Assembly, RH Price: Call Us 462226 |
