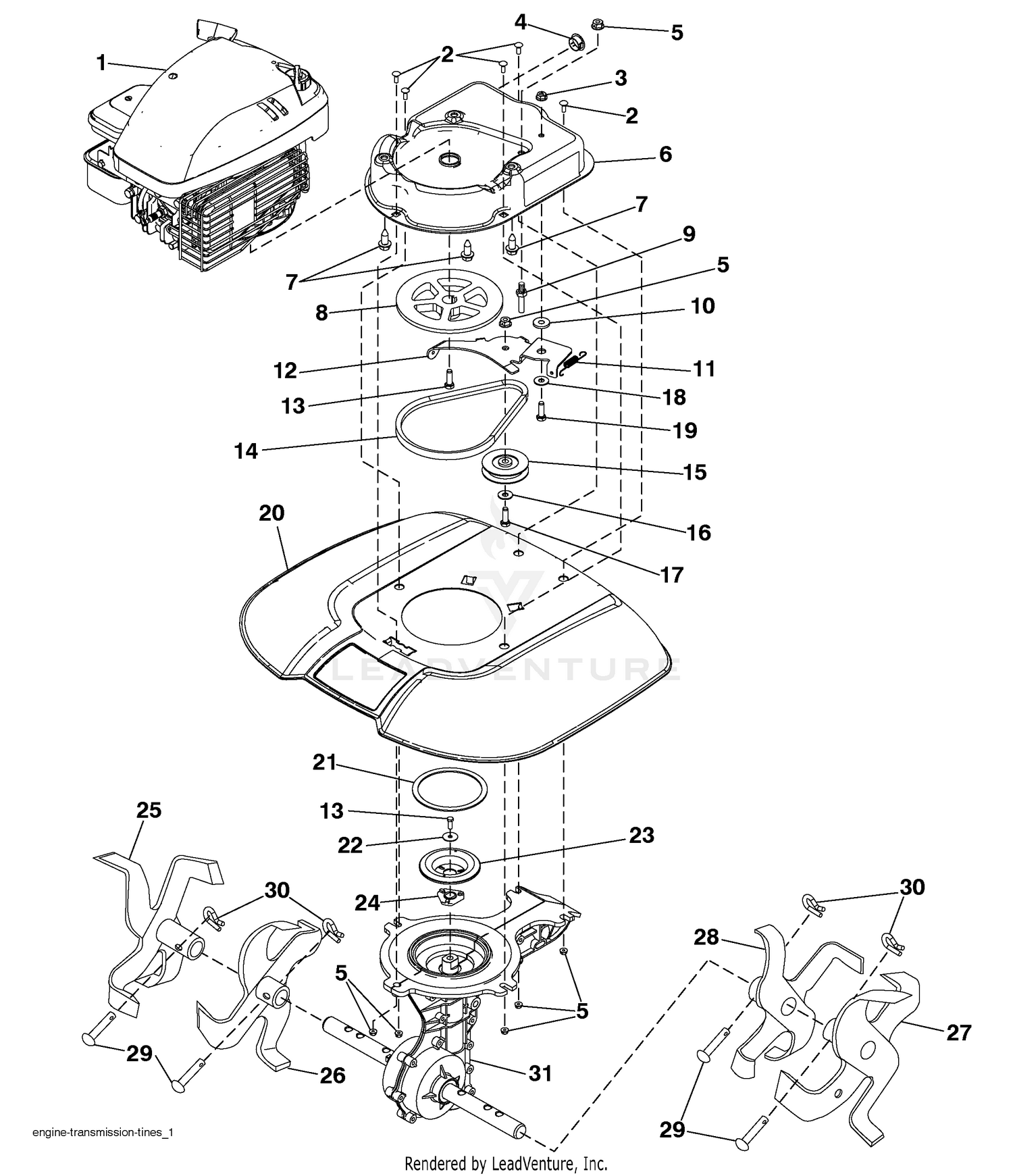

Engine, Transmission, And Tines

Engine, Transmission, And Tines

Parts (30)

RefPart NumberDescription
1 421338 Engine Price: Call Us
2 72110608 Bolt Carriage 3/8 - 16 x 1 Price: Call Us
3 73900500 Nut Lock Flg 5/16 -18 unc Price: Call Us
4 425398 Plug Snap In Price: Call Us
5 73900600 Nut Lock Flg 3/8 - 16 unc Price: Call Us
6 421337 Housing Clutch Price: Call Us
7 17000616 Screw 3/8 - 16 x 1-1/2 Price: Call Us
8 421335 Sheave Upper Price: Call Us
9 421341 Stud Belt Guard Price: Call Us
10 175331 Bushing Pivot Price: Call Us
11 421373 Spring Return Price: Call Us
12 421339 Bracket Idler Price: Call Us
13 74610616 Bolt Hex 3/8 - 24 x 1 Price: Call Us
14 421379 Belt Drive Price: Call Us
15 421378 Pulley Idler Price: Call Us
16 19131416 Washer 13/32 x 7/8 x 16 Ga. Price: Call Us
17 74780620 Bolt 3/8 - 16 x 1.25 Price: Call Us
18 133944 Washer .328 x 1.375 x 0.055 Price: Call Us
19 74760514 Bolt Fin Hex 5/16-18 unc x 7/8 Price: Call Us
20 421354X428 Shield Tine Price: Call Us
21 421340 Seal Foam Price: Call Us
22 413524 Washer 13/32 x 1-1/2 x 11 Ga. Price: Call Us
23 421336 Sheave Lower Price: Call Us
24 421334 Coupling Clutch Price: Call Us
25 156926 Tine Outer RH Price: Call Us
26 156924 Tine Inner RH Price: Call Us
27 156925 Tine Outer LH Price: Call Us
28 156923 Tine Inner LH Price: Call Us
29 4929H Pin Clevis Price: Call Us
30 3146R Retainer Spring Zinc Price: Call Us
