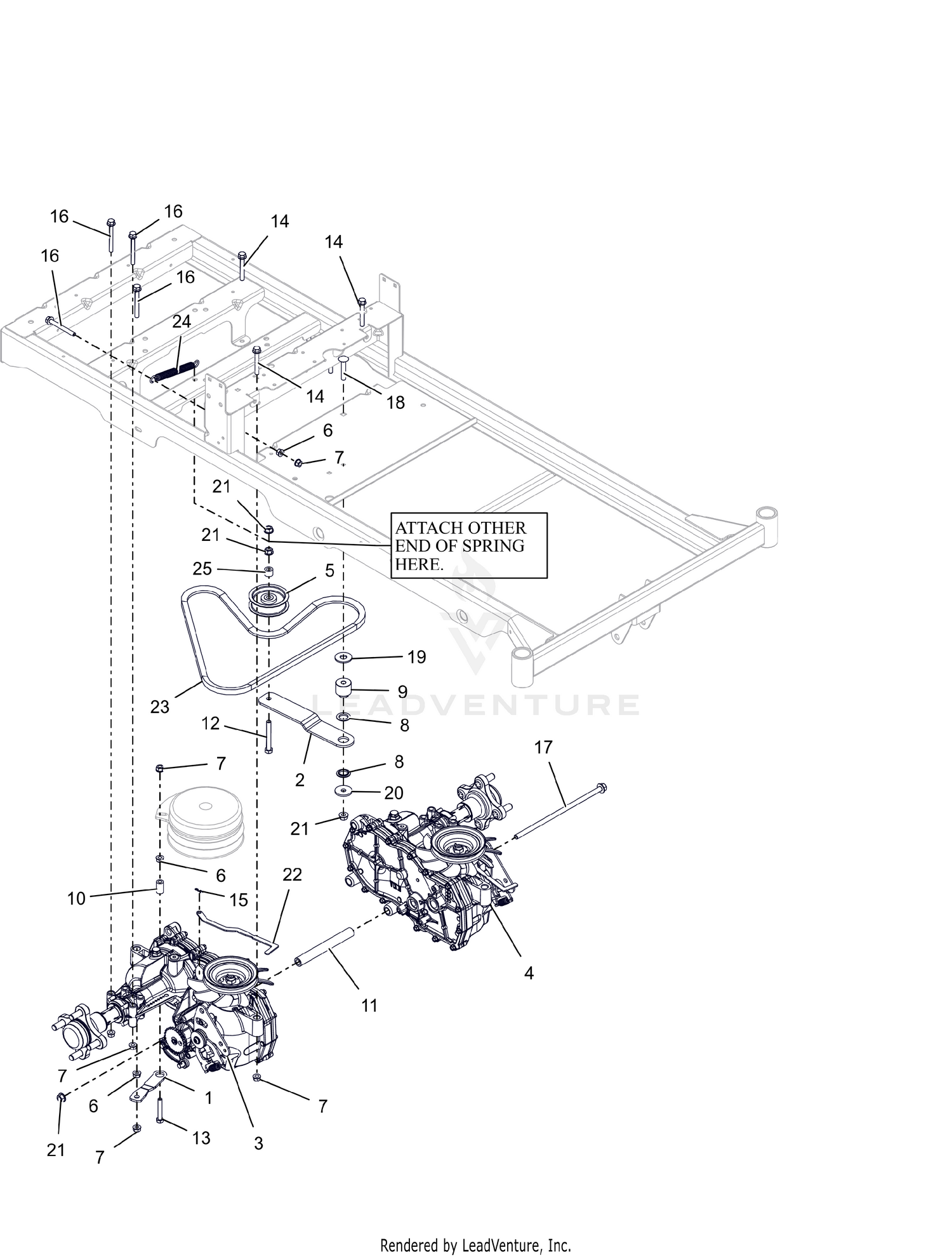

| Ref | Part Number | Description |
|---|
| 1 |
03956751 |
BRKT, CLUTCH STOP Price: $10.45 |
| 2 |
03961067 |
IDLER ARM, GROUND DRIVE This part replaces 03961000. Price: $18.10 |
| 5 |
07355900 |
PULLEY, IDLER 2.75" FLAT This part replaces 07300221. Price: $30.95 |
| 6 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC Price: $1.45 |
| 7 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 8 |
03960700 |
BUSHING, IDLER ARM Price: $5.95 |
| 9 |
03961100 |
SPACER, GROUND DRIVE IDLER Price: $5.45 |
| 10 |
03980200 |
SPACER, RUBBER 5/16 IDX1.0 LG Price: $2.45 |
| 11 |
05281800 |
SPCR, TRANSAXLE .438 ID X .750 OD X 8.18 Price: $11.95 |
| 12 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC Price: $3.95 |
| 13 |
05901805 |
BLT, HEX .31-18X2.00 G5 ZCC Price: $1.45 |
| 14 |
05901910 |
BLT,HEX-FLG .31-18X2.25 G5 ZCC Price: $2.45 |
| 15 |
06700221 |
PIN, HAIR #178 .06X.77 ZCC Price: $0.45 |
| 16 |
05901911 |
BLT,HEX-FLG .31-18X2.75 G5 ZCC Price: $2.45 |
| 17 |
05902032 |
BLT, HEX-FLG 0.375-16X9.75 GR5 ZC120 Price: $8.95 |
| 18 |
06200323 |
BLT,RHSSN.375-16X2.00 G5 ZCC Price: $2.45 |
| 19 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC Price: $2.45 |
| 20 |
06401121 |
WSHR,FLT .406X1.375X.135 ZCC Price: $5.45 |
| 21 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 22 |
09160551 |
BRKT, VALVE DUMP (BLACK) Price: $6.45 |
| 23 |
07200010 |
V-BELT, HA-RAW EDGE Price: $32.95 |
| 24 |
08300512 |
SPRING, EXTENSION Price: $15.45 |
