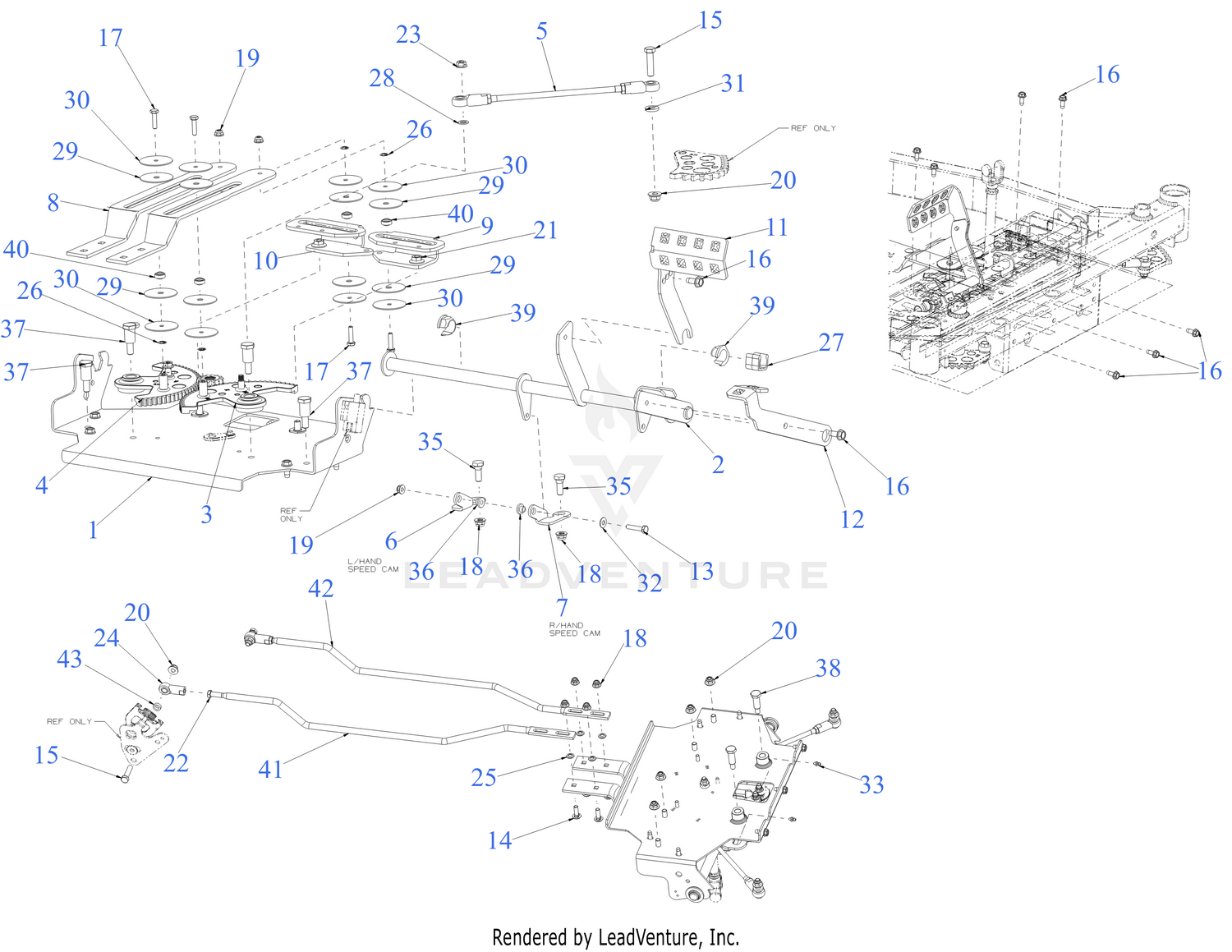

| Ref | Part Number | Description |
|---|
| 1 |
603E08833B |
STEERING SUPPORT PLATE Price: $216.49 |
| 2 |
603E08838A |
DRIVE PEDAL SHAFT Price: $85.45 |
| 3 |
917-05039 |
STEERING GEAR ASSEMBLY (RH) Price: $201.03 |
| 4 |
917-05040 |
STEERING GEAR ASSEMBLY (LH) Price: $92.22 |
| 5 |
712-0711 |
HEX JAM NUT 3/8X24 Price: $3.90 |
| 5 |
723-04080 |
BALL JOINT Price: $38.27 |
| 5 |
747-11668 |
STEERING TIE ROD Price: $14.69 |
| 8 |
703Z10404A |
CONTROL LINK This part replaces 703-10404. Price: $22.28 |
| 9 |
703-27432 |
SPEED CAM PLATE (RH) Price: $28.15 |
| 10 |
703-27449 |
SPEED CAM PLATE (LH) Price: $28.15 |
| 13 |
710-0106 |
HEX SCREW 1/4-20 x 1.25 Price: $3.66 |
| 13 |
710-05105 |
SCREW 1/4-20 x 1.0 Price: $3.49 |
| 14 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 15 |
710-0520 |
SCREW 3/8-16 x 1.50 Price: $3.93 |
| 16 |
710-1260A |
SCREW 5/16-18 x .750 Price: $3.34 |
| 17 |
710-3220 |
SCREW 1/4-20X1.0 GR5 Price: $3.21 |
| 18 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 19 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 20 |
712-04065 |
NUT Price: $3.68 |
| 21 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 22 |
712-0711 |
HEX JAM NUT 3/8X24 Price: $3.90 |
| 23 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 24 |
723-04080 |
BALL JOINT Price: $38.27 |
| 25 |
726-0201 |
PUSH NUT Price: $6.01 |
| 26 |
726-0233 |
RETAINER-BOLT .25ID x .50OD Price: $3.93 |
| 27 |
731-09629A |
SPACER-LIFT SHAFT Price: $3.66 |
| 28 |
736-0140 |
FLAT WASHER Price: $6.20 |
| 29 |
736-04630 |
FLAT WASHER Price: $5.62 |
| 30 |
736-04631 |
FLAT WASHER Price: $5.62 |
| 31 |
736-3010 |
FLAT WASHER Price: $4.02 |
| 33 |
737-04345 |
GREASE ZERT 1/4-28 Price: $4.02 |
| 35 |
738-0296 |
SHOULDER SCREW .437 Price: $3.93 |
| 36 |
738-04483 |
SHOULDER SPACER Price: $3.53 |
| 37 |
738-05046 |
SHOULDER SCREW .625 x .875 x 3/18 Price: $3.74 |
| 38 |
738-1014 |
SHOULDER SCREW .50 Price: $3.58 |
| 39 |
741-04504 |
HEX FLANGE SPLIT BEARING Price: $7.71 |
| 40 |
741-05209 |
BALL BEARING .25 x .625 Price: $9.13 |
| 41 |
747-11738 |
HYDRO LINK ROD (LH) Price: $27.34 |
| 42 |
747-11739 |
HYDRO LINK ROD (RH) Price: $27.34 |
