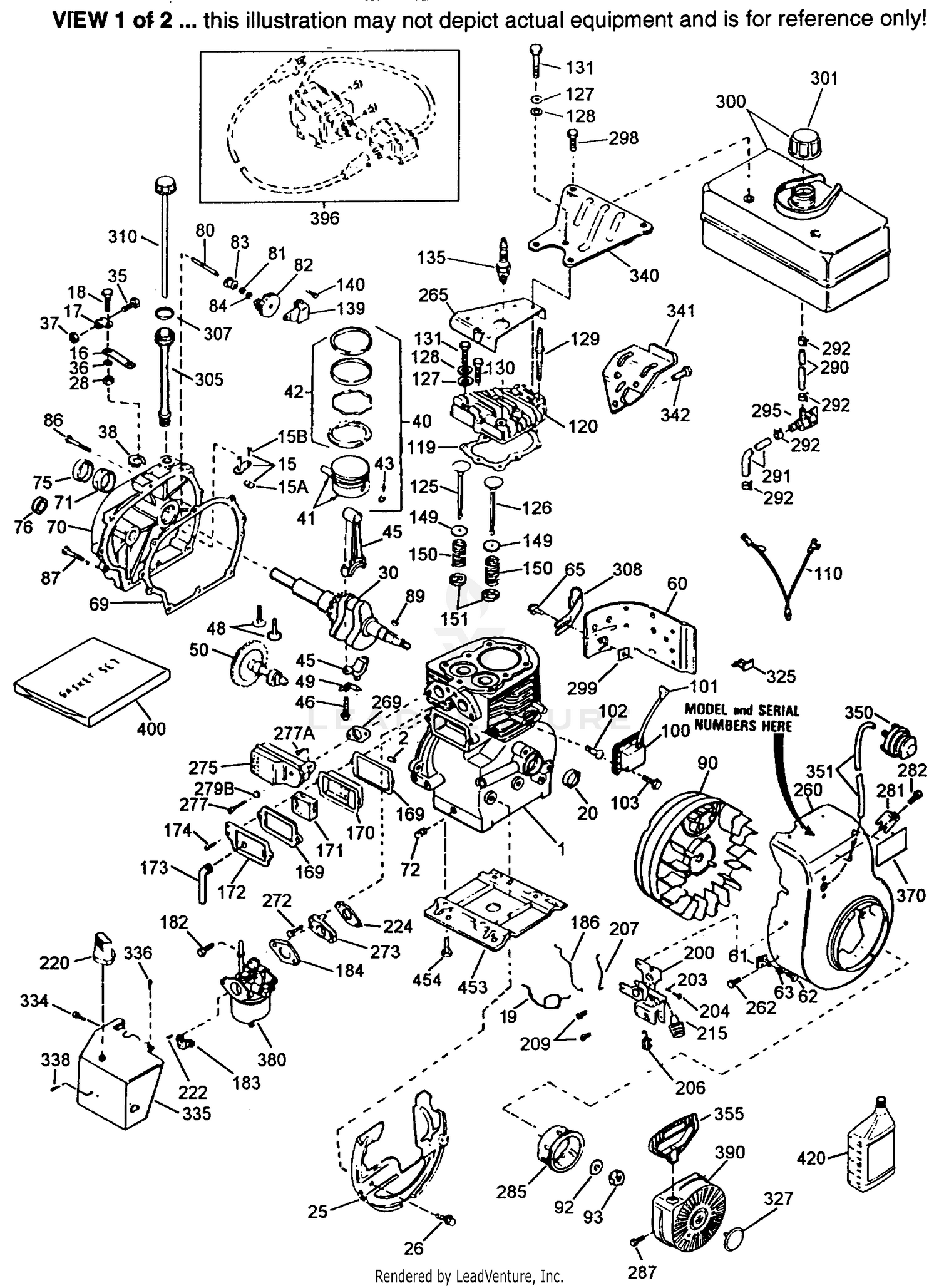

| Ref | Part Number | Description |
|---|
| 1 |
32586C |
CYLINDER Price: $209.54 |
| 2 |
27652 |
PIN Price: $1.58 |
| 15 |
30699C |
GOVERNOR ROD Price: $12.16 |
| 15A |
30700 |
GOV YOKE Price: $1.22 |
| 15B |
650494 |
SCREW Price: $1.20 |
| 16 |
33454A |
GOV LEVER This part replaces 33454. Price: $7.41 |
| 17 |
29916 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 20 |
32630 |
OIL SEAL Price: $6.00 |
| 25 |
37853 |
BAFFLE This part replaces 35326. Price: $7.95 |
| 26 |
650561 |
SCREW Price: $1.25 |
| 28 |
30322 |
NUT Price: $1.22 |
| 30 |
35280 |
CRANKSHAFT Price: $95.07 |
| 35 |
29826 |
SCREW Price: $1.26 |
| 36 |
29918 |
WASHER Price: $1.26 |
| 37 |
29216 |
NUT Price: $1.22 |
| 38 |
29642 |
RET RING Price: $1.26 |
| 40 |
34517 |
PISTON ASSY STD Price: Call Us |
| 40 |
34518 |
PISTON ASSY 010 Price: $66.24 |
| 40 |
34519 |
PISTON ASSY 020 Price: $71.18 |
| 41 |
32592B |
PISTON & PIN ST Price: $37.40 |
| 41 |
32593B |
PISTON & PIN 10 Price: $40.82 |
| 41 |
32594B |
PISTON & PIN 20 Price: $43.75 |
| 42 |
32595 |
RING SET STD Price: Call Us |
| 42 |
32596 |
RING SET 010-NLA Price: Call Us |
| 42 |
32597 |
RING SET 020 Price: Call Us |
| 43 |
27888 |
RET RING Price: $1.26 |
| 45 |
32591C |
CONN ROD--Discontinued Price: Call Us |
| 46 |
650662C |
SCREW Price: $2.60 |
| 48 |
34034A |
VALVE LIFTER This part replaces 34034. Price: $7.41 |
| 49 |
34242 |
OIL DIPPER Price: Call Us |
| 50 |
32115 |
CAMSHAFT Price: $62.84 |
| 60 |
30622A |
EXTENSION Price: Call Us |
| 61 |
34126 |
BRACKET Price: $1.26 |
| 62 |
650760 |
SCREW Price: $1.17 |
| 63 |
28545 |
GROMMET Price: $1.26 |
| 65 |
650128 |
SCREW Price: $3.60 |
| 69 |
30684 |
GASKET Price: $3.20 |
| 70 |
31303C |
CYL COVER Price: $92.07 |
| 71 |
31546 |
BUSHING Price: $10.00 |
| 72 |
27642 |
PIPE PLUG Price: $1.26 |
| 75 |
28427 |
OIL SEAL Price: $4.71 |
| 80 |
37587 |
GOV SHAFT This part replaces 31845. Price: $1.26 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
30591 |
GEAR Price: $9.93 |
| 83 |
30588A |
GOV SPOOL Price: $1.26 |
| 84 |
29193 |
RET RING Price: $1.26 |
| 86 |
650488 |
SCREW Price: $1.25 |
| 87 |
650493 |
SCREW Price: $2.80 |
| 89 |
32589 |
KEY Price: $1.05 |
| 90 |
611085 |
FLYWHEEL Price: $153.20 |
| 92 |
650815 |
WASHER Price: $1.25 |
| 93 |
8116 |
NUT Price: $1.23 |
| 100 |
34443D |
LAMINATION This part replaces 34443A. Price: $35.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 102 |
651024 |
STUD This part replaces 650872. Price: $2.60 |
| 103 |
651007 |
SCREW This part replaces 650814. Price: $1.17 |
| 110 |
35253 |
GROUND WIRE Price: $4.40 |
| 119 |
32631A |
GASKET This part replaces 36453. Price: $7.95 |
| 120 |
36446 |
CYL HEAD Price: $42.56 |
| 125 |
27878A |
EXH VALVE STD Price: $16.51 |
| 125 |
27880A |
EXH VALVE OS Price: $34.25 |
| 126 |
32783 |
INT VALVE ST Price: $11.63 |
| 126 |
32784 |
INT VALVE OS Price: $49.74 |
| 127 |
650691 |
WASHER Price: $1.25 |
| 128 |
730324 |
WASHER KIT This part replaces 650690. Price: $6.86 |
| 129 |
650697A |
SCREW Price: $1.25 |
| 130 |
650697A |
SCREW Price: $1.25 |
| 131 |
650697A |
SCREW Price: $1.25 |
| 135 |
33636 |
SPARK PLUG Price: $5.05 |
| 139 |
31843A |
BRACKET Price: $3.89 |
| 140 |
650965 |
SCREW Price: $1.22 |
| 149 |
27882 |
VALVE CAP Price: $1.26 |
| 150 |
27881 |
VALVE SPRING Price: $2.62 |
| 151 |
32581 |
VALVE CAP Price: $4.49 |
| 169 |
27896A |
GASKET Price: $1.00 |
| 170 |
28423 |
BREATHER Price: $9.29 |
| 171 |
28424 |
ELEMENT Price: $2.62 |
| 172 |
28425 |
VALVE COVER Price: $5.21 |
| 173 |
35350 |
TUBE Price: $4.57 |
| 174 |
650128 |
SCREW Price: $3.60 |
| 182 |
650517 |
SCREW Price: $1.25 |
| 183 |
32398 |
BRACKET Price: $14.20 |
| 184 |
31688A |
GASKET Price: $1.70 |
| 186 |
34661 |
GOV LINK Price: $4.80 |
| 200 |
34664 |
CONTROL ASSY Price: $33.37 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 207 |
34662 |
LINK Price: $3.00 |
| 209 |
650821 |
SCREW Price: $1.20 |
| 215 |
35440 |
KNOB Price: $2.62 |
| 220 |
35439 |
KNOB Price: $2.62 |
| 222 |
651081 |
SCREW This part replaces 28820. Price: $2.89 |
| 224 |
27915A |
GASKET Price: $3.95 |
| 260 |
35755 |
BLOWER HSG Price: $43.86 |
| 262 |
29747C |
SCREW/LOCKWASHER ASSEMBLY This part replaces 29747B. Price: $1.26 |
| 264A |
30196 |
SCREW Price: $1.26 |
| 265 |
30939B |
COVER This part replaces 30939A. Price: $2.62 |
| 269 |
35865 |
GASKET Price: $3.95 |
| 272 |
30196 |
SCREW Price: $1.26 |
| 273 |
34712 |
CARB FLANGE Price: Call Us |
| 275 |
32401 |
MUFFLER Price: $28.00 |
| 277 |
650694A |
SCREW Price: $2.15 |
| 279B |
26073 |
WASHER Price: Call Us |
| 281 |
33013 |
COVER Price: $2.62 |
| 282 |
650760 |
SCREW Price: $1.17 |
| 285 |
37966 |
STARTER CUP This part replaces 35287B. Price: $7.34 |
| 287 |
650926 |
SCREW Price: $0.88 |
| 290 |
29774 |
FUEL LINE Price: $2.78 |
| 291 |
30962 |
FUEL LINE Price: $22.04 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 295 |
35857 |
FUEL FITTING Price: $9.95 |
| 298 |
650665 |
SCREW Price: $1.25 |
| 299 |
650764 |
NUT Price: $1.25 |
| 300 |
34186A |
FUEL TANK Price: $38.24 |
| 301 |
37845 |
FUEL CAP This part replaces 35355. Price: $6.33 |
| 305 |
35554 |
FILLER TUBE Price: $14.00 |
| 307 |
35499 |
O RING Price: $0.88 |
| 308 |
35540 |
CLIP Price: $1.22 |
| 310 |
36205 |
DIPSTICK Price: $7.45 |
| 325 |
29443 |
CLIP Price: $1.26 |
| 327 |
35392 |
STARTER PLUG Price: $1.22 |
| 334 |
650257 |
SCREW Price: $0.87 |
| 335 |
35563 |
CARB COVER This part replaces 34672. Price: Call Us |
| 336 |
650765 |
SCREW Price: $0.87 |
| 338 |
650760 |
SCREW Price: $1.17 |
| 340 |
34159 |
TANK BRACKET Price: $12.89 |
| 341 |
34158 |
TANK BRACKET Price: $7.89 |
| 342 |
650561 |
SCREW Price: $1.25 |
| 350 |
570682A |
PRIMER This part replaces 570682. Price: $7.43 |
| 351 |
32180C |
PRIMER LINE Price: $2.62 |
| 355 |
590574 |
START HANDLE Price: $4.25 |
| 370 |
36261 |
DECAL Price: Call Us |
| 370A |
34680 |
DECAL Price: Call Us |
| 370B |
37119 |
DECAL This part replaces 34414. Price: $1.00 |
| 370C |
36501 |
DECAL Price: $1.00 |
| 370D |
34418 |
DECAL Price: $1.00 |
| 380 |
632371A |
CARBURETOR Price: $86.17 |
| 390 |
590787 |
STARTER This part replaces 590646. Price: $37.98 |
| 400 |
36454 |
GASKET SET Price: $9.29 |
| 420 |
730226B |
OIL SAE 5W30 This part replaces 730226A. Price: $6.72 |
| 453 |
29538 |
ENGINE BASE Price: $12.59 |
