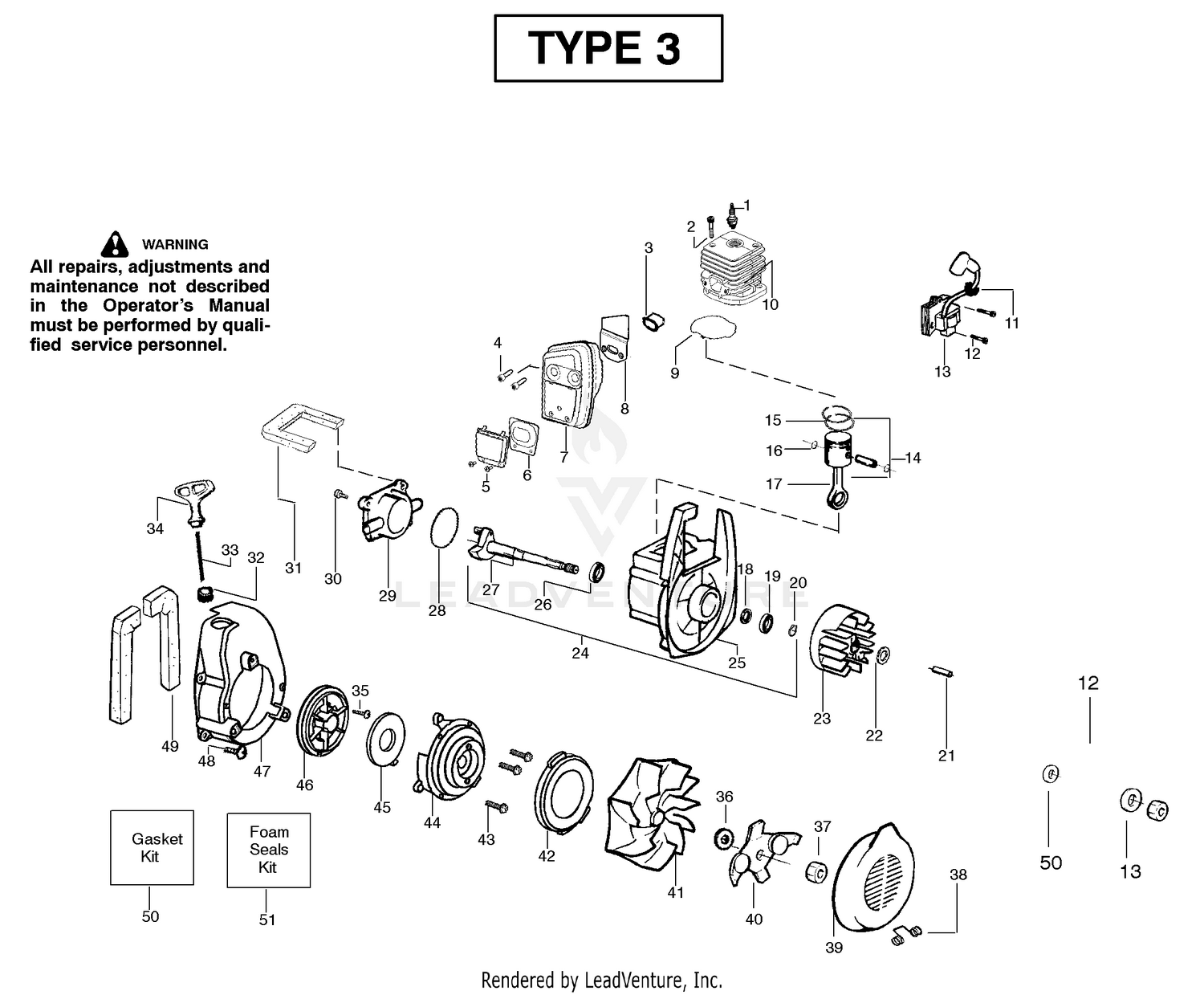

| Ref | Part Number | Description |
|---|
| 1 |
31994 |
SHAFT & LEV Price: Call Us |
| 1 |
93-9939 |
TIRE Price: $34.55 |
| 1 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 2 |
530015953 |
Screw Price: $1.99 |
| 2 |
650506 |
SCREW This part replaces 630606. Price: $0.87 |
| 2 |
68-8950 |
TUBE-INNER (W/VALVE) Price: $26.99 |
| 3 |
31995 |
SHUTTER Price: Call Us |
| 3 |
530055191 |
Insulator-Heat Price: $1.99 |
| 3 |
93-4241 |
SPACER-BEARING, INNER Price: $26.72 |
| 4 |
120-3366 |
BEARING Price: $28.29 |
| 4 |
530016387 |
Screw-Muffler-Internal Price: $1.99 |
| 4 |
631499 |
SHAFT & LEV This part replaces 31996. Price: Call Us |
| 5 |
27113 |
SPRING Price: $2.62 |
| 5 |
530015241 |
Screw Price: $1.99 |
| 6 |
32128-16 |
NUT-HHF Price: $0.54 |
| 6 |
650399 |
SCREW This part replaces 630605. Price: $1.20 |
| 7 |
27112 |
IDLE SCREW Price: $1.26 |
| 7 |
93-4242 |
PLATE Price: $11.21 |
| 8 |
27114 |
SPRING Price: $2.62 |
| 8 |
530071458 |
Gasket-Baffle (kit) Price: $5.99 |
| 8 |
93-4239 |
RIM-WHEEL, HALF Price: $29.68 |
| 9 |
31503 |
SPRING Price: $1.23 |
| 9 |
530071458 |
Gasket-Cylinder (kit) Price: $5.99 |
| 9 |
93-5980 |
HUB Price: $67.14 |
| 10 |
30927 |
SHUTTER Price: Call Us |
| 10 |
530012458 |
CYLINDER This part replaces 530071468. Price: $17.99 |
| 11 |
27109 |
GASKET Price: $1.18 |
| 11 |
530019182 |
Grommet-Ign. Module Price: $1.99 |
| 12 |
27108 |
GASKET Price: Call Us |
| 12 |
530016357 |
Screw-Ignition Module Price: $1.99 |
| 13 |
32256A |
REPAIR KIT This part replaces 32255. Price: $45.70 |
| 13 |
530035505 |
Ignition Module Price: $29.99 |
| 14 |
27105 |
FLOAT Price: $20.00 |
| 15 |
27106 |
FLOAT SHAFT Price: $2.04 |
| 15 |
545154009 |
PISTON RING This part replaces 530012472. Price: $1.99 |
| 16 |
27136A |
DRAIN ASSY Price: $5.96 |
| 16 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 17 |
29170 |
FLOAT BOWL This part replaces 630596. Price: Call Us |
| 17 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 18 |
530071615 |
Kit-Crankcase Seal Price: $4.99 |
| 19 |
530055728 |
Bearing-Outer Price: $6.99 |
| 20 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 20 |
530015941 |
Retainer Ring-C'chaft Price: $1.99 |
| 21 |
28945 |
POWER SCREW Price: $18.86 |
| 21 |
530016190 |
Spacer-Flywheel Price: $2.99 |
| 22 |
530015149 |
Washer Price: $1.99 |
| 22 |
630786 |
SPRING Price: $1.25 |
| 23 |
30355 |
NOZZLE Price: Call Us |
| 23 |
530047534 |
FLYWHEEL ASSY This part replaces 530039209. Price: $22.99 |
| 24 |
27544 |
O RING Price: $1.26 |
| 25 |
27554 |
GASKET Price: $1.05 |
| 26 |
32076 |
SPRING Price: Call Us |
| 26 |
530032125 |
Bearing-Inner Price: $11.99 |
| 27 |
32096 |
RET SPRING Price: $2.62 |
| 27 |
530012452 |
Assy-Crankshaft Price: $24.99 |
| 28 |
530071458 |
O-ring-C/case (kit) Price: $5.99 |
| 29 |
530012443 |
Cover-Crankcase Price: $5.99 |
| 30 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 31 |
530071459 |
Foam-219mm (kit) Price: $4.99 |
| 32 |
530029182 |
Eyelet-Flange Price: $1.99 |
| 33 |
530071467 |
Kit-Rope Price: $4.99 |
| 34 |
530054834 |
Handle-Starter Price: $1.99 |
| 35 |
530016326 |
Screw-Rope Price: $1.99 |
| 36 |
530016240 |
Washer-Belleville Price: $1.99 |
| 37 |
530626605 |
Nut Price: $1.99 |
| 38 |
530402043 |
Spring-Return Cover Price: $2.99 |
| 39 |
530049313 |
Inlet Door Price: $4.99 |
| 40 |
530095355 |
Mulch Blade This part replaces 530095461. Price: $3.99 |
| 41 |
530069817 |
Assy-Impeller Price: $12.99 |
| 42 |
530056625 |
Seal-Ring Price: $3.99 |
| 43 |
530016349 |
Screw Price: $1.99 |
| 44 |
530055101 |
Housing-Pulley Price: $6.99 |
| 45 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 46 |
545150201 |
PULLEY STARTER This part replaces 530071466. Price: $8.99 |
| 47 |
530055102 |
Fan Housing Price: $14.99 |
| 48 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 49 |
530071459 |
Foam-182mm (kit) Price: $4.99 |
