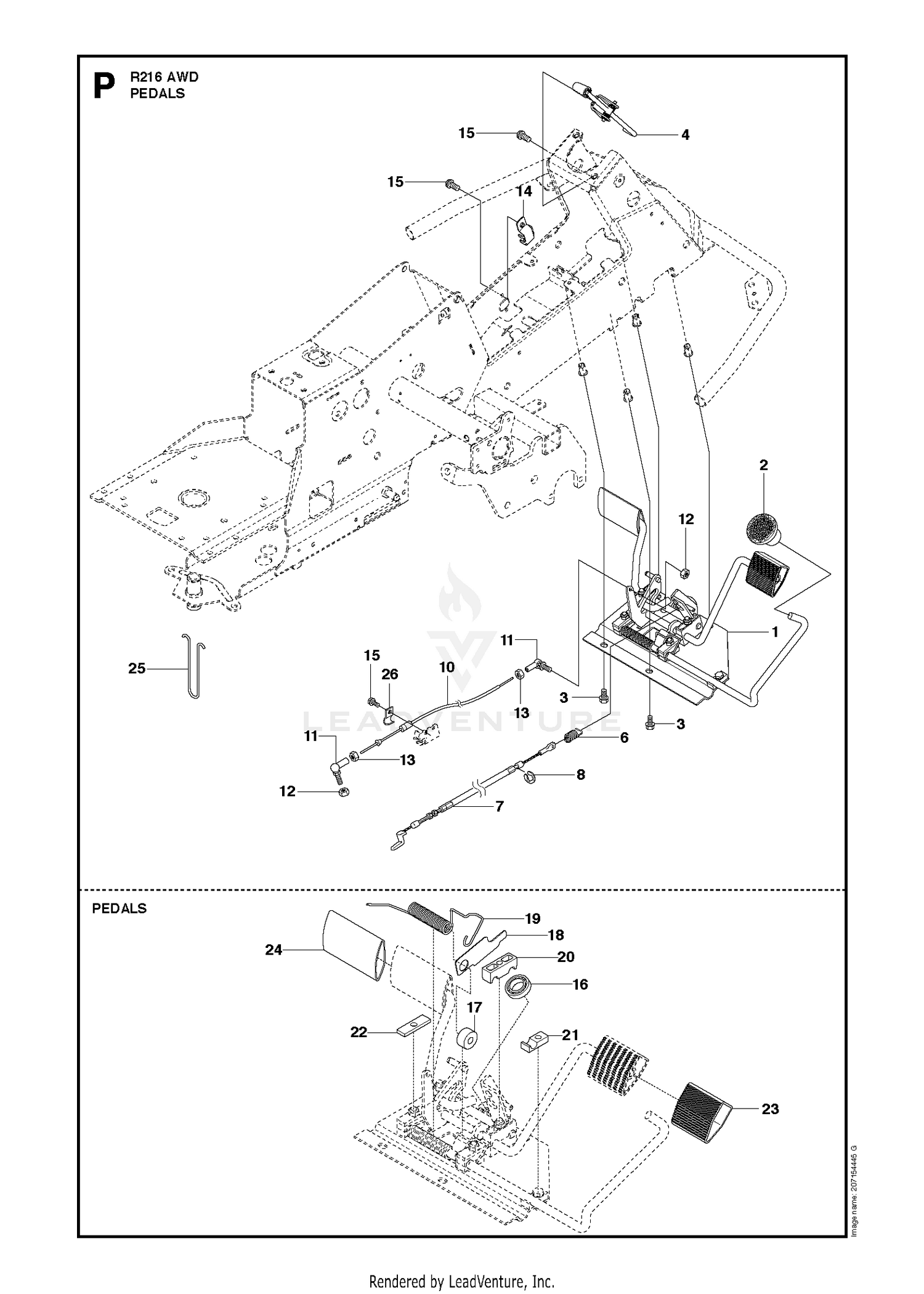

| Ref | Part Number | Description |
|---|
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
586727401 |
KNOB, THREADED This part replaces 535473701. Price: $9.99 |
| 3 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 3 |
506570104 |
BOLT Price: $4.99 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
544403101 |
BRAKE LEVER ASSY Price: $19.99 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 6 |
506946301 |
SPRING Price: $7.99 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 7 |
576712101 |
BRAKE WIRE Price: $32.99 |
| 8 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 136-2913. Price: $3,119.29 |
| 8 |
735310920 |
E-RING 5 Price: $3.99 |
| 10 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 10 |
574411202 |
CONTROL CABLE Price: $69.99 |
| 11 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 11 |
578776801 |
CONNECTOR, BALL JOINT This part replaces 506557301. Price: $9.99 |
| 12 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 12 |
732211401 |
LOCKNUT M5 Price: $2.99 |
| 13 |
731231401 |
NUT Price: $1.99 |
| 13 |
93-7984 |
GASKET Price: $20.21 |
| 14 |
100-3070 |
LH BRAKE ASM This part replaces 100-3070-03. Price: $802.37 |
| 14 |
522430801 |
BRACKET Price: $5.99 |
| 15 |
33106-080 |
SCREW-HHF Price: $2.80 |
| 15 |
725236461 |
SCREW Price: $2.99 |
| 16 |
3218-4 |
NUT-JAM Price: $0.49 |
| 16 |
738210204 |
BALL BEARING 6002-2RS1 Price: $7.99 |
| 17 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 17 |
535459901 |
ROLLER This part replaces 535480201. Price: $15.99 |
| 18 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 18 |
535459601 |
PLATE This part replaces 535480601. Price: $6.99 |
| 19 |
325-13 |
SCREW-HH Price: $3.57 |
| 19 |
535459501 |
SPRING This part replaces 535480701. Price: $7.99 |
| 20 |
506506501 |
PEDAL SHAFT CLAMP This part replaces 535480801. Price: $6.99 |
| 21 |
506954101 |
SUPPORT This part replaces 535480901. Price: $5.99 |
| 22 |
506804101 |
PLATE This part replaces 535481001. Price: $5.99 |
| 23 |
586966401 |
PEDAL RUBBER This part replaces 535478801. Price: $14.99 |
| 24 |
586966402 |
PEDAL RUBBER L = 102MM This part replaces 535478802. Price: $14.99 |
| 25 |
100-3069 |
RH BRAKE ASM This part replaces 100-3069-03. Price: $802.37 |
| 25 |
506576402 |
CABLE HOLDER Price: $2.58 |
| 26 |
132-6250-03 |
FRAME-FRONT Price: $2,505.29 |
| 26 |
506566501 |
CLAMP Price: $2.99 |
