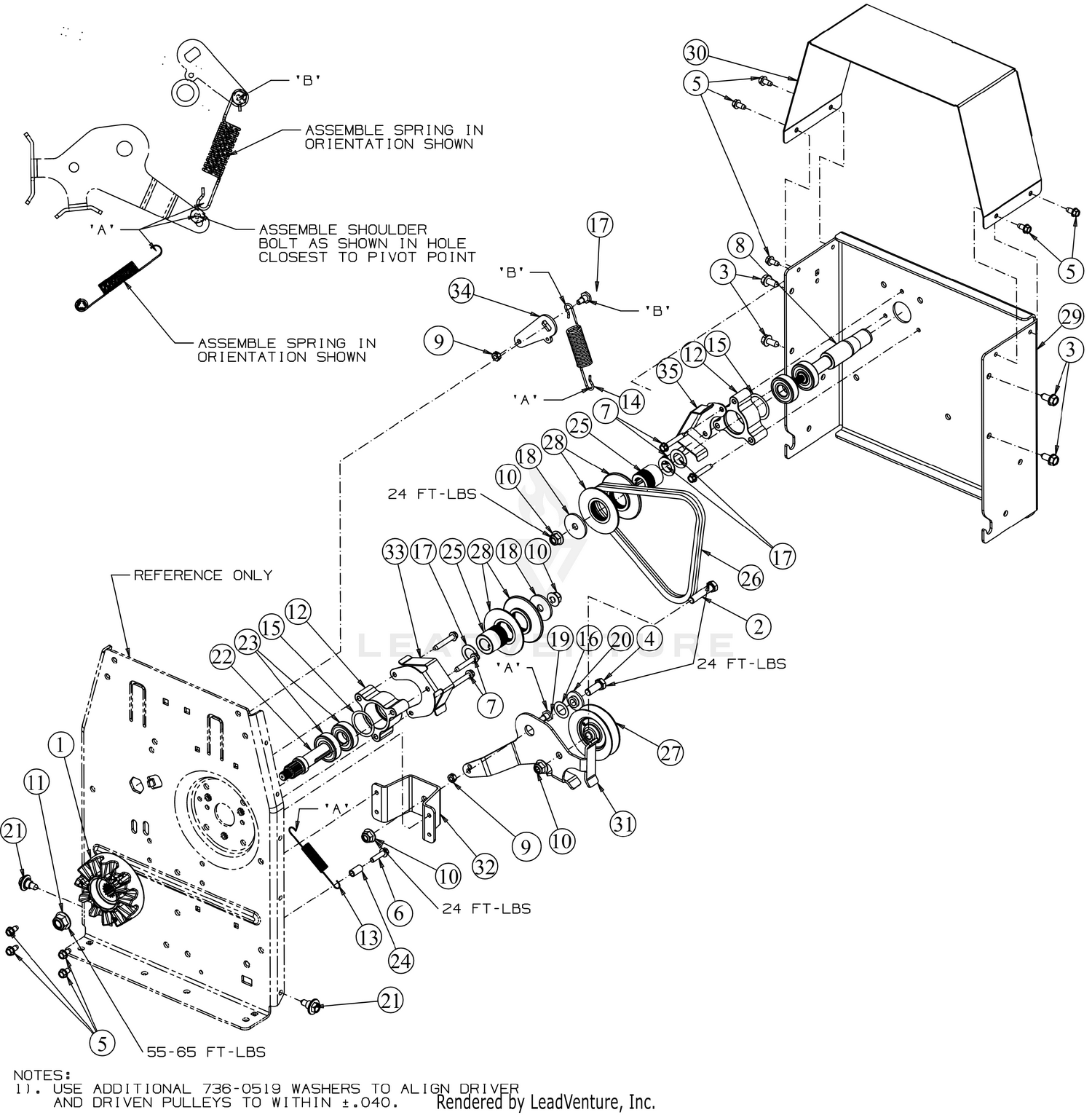

| Ref | Part Number | Description |
|---|
| 1 |
735-05109 |
DOG CLUTCH BUMPER Price: $2.40 |
| 1 |
931-05304 |
DOG CLUTCH Price: $73.75 |
| 2 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 5 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 6 |
710-0788 |
SCREW 1/4-20 x 1.00 Price: $6.20 |
| 7 |
710-1325 |
SCREW 1/4-20 X1.625 Price: $4.11 |
| 8 |
711-06384A |
SPINDLE SHAFT Not Available Price: |
| 9 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 912-0291. Price: $3.93 |
| 10 |
712-04065 |
NUT Price: $3.68 |
| 11 |
712-04150 |
NUT Price: $3.74 |
| 12 |
718-04261 |
BEARING CUP Price: $18.82 |
| 13 |
732-05322 |
EXTENSION SPRING Price: $5.52 |
| 14 |
732-05361 |
EXTENSION SPRING.85 ODX 5.026 Not Available Price: |
| 15 |
736-04516 |
SHIM WASHER Price: $5.52 |
| 16 |
736-0495 |
THRUST WASHER This part replaces 936-0495. Price: $3.90 |
| 17 |
736-0519 |
Flat Washer, .70 x 1.125 x .031 This part replaces 936-0519. Price: $4.73 |
| 18 |
736-3039 |
Flat Washer, .407 x .812 x .135 This part replaces 936-3039. Price: $4.42 |
| 19 |
738-0137A |
Shoulder Screw, .340 x .285,1/4-20 This part replaces 938-0137A. Price: $9.83 |
| 20 |
938-0347 |
SHOULDER SPACER Price: $8.93 |
| 21 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 22 |
738-05104A |
DRIVE SPINDLE Not Available Price: |
| 23 |
941-0600 |
BALL BEARING Price: $23.34 |
| 24 |
750-05369 |
SPACER .260 x .375 x .75 Price: $4.77 |
| 25 |
750-06280 |
SPACER-.670ID x 1.185 Not Available Price: |
| 26 |
954-05105A |
V-BELT 4L:24.82 ARAMID Price: $27.52 |
| 27 |
756-04325 |
V-IDLER PULLEY A x 3.06 OD Price: $22.60 |
| 28 |
756-05187 |
HALF PULLEY Not Available Price: |
| 29 |
781-05060-0637 |
BLOWER FRAME (POWDER BLACK) Not Available Price: |
| 30 |
781-05061-0637 |
TOP COVER BRACKET (POWDER BLACK) Not Available Price: |
| 31 |
781-05062B |
IDLER BRACKET Not Available Price: |
| 32 |
781-05063A-0637 |
IDLER BRACKET MOUNT (POWDER BLACK) Not Available Price: |
| 33 |
781-05072-0637 |
KEEPER BRACKET (POWDER BLACK) Not Available Price: |
| 34 |
781-05096A |
ENGAGEMENT CABLE BRACKET Not Available Price: |
