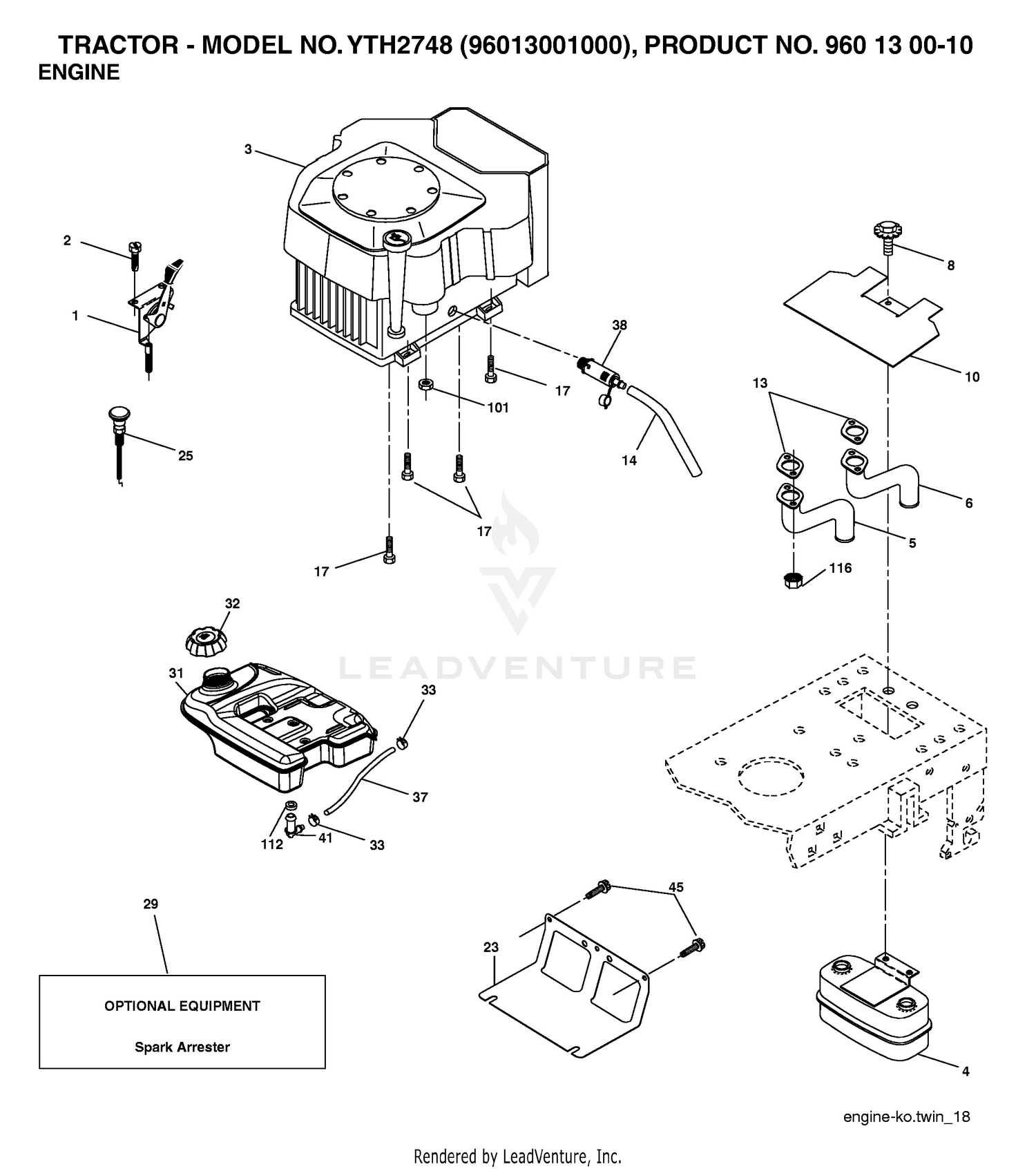

| Ref | Part Number | Description |
|---|
| 1 |
125-6918 |
SWITCH-OIL Price: $25.77 |
| 1 |
532190192 |
CONTROL.THROTTLE.BLACK This part replaces 532190259. Price: $27.99 |
| 2 |
125-6975 |
BOLT-JOINT, PIPE Price: $12.92 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
125-6952 |
BOLT-JOINT, PIPE Price: $18.97 |
| 4 |
127-3154 |
LUBE OIL PIPE ASM Price: $123.93 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
125-6976 |
RETAINER Price: $8.13 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
125-7175 |
WASHER-SEAL Price: $6.16 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 7 |
125-7193 |
GASKET Price: $1.28 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
93-0362 |
BOLT Price: $3.89 |
| 9 |
127-2992 |
JOINT Price: $35.51 |
| 10 |
127-3155 |
PIPE-LUBE, OIL Price: $137.70 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
127-3003 |
ELBOW Price: $31.01 |
| 12 |
127-3169 |
CLAMP-HOSE Price: $16.25 |
| 13 |
125-7198 |
O-RING Price: $7.26 |
| 14 |
125-7208 |
BOLT Price: $3.77 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
125-7105 |
CHECK VALVE ASM Price: $41.11 |
| 17 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 21 |
125-7098 |
NOZZLE Price: $43.36 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532190194 |
CHOKE.CONTROL.PUSH/PULL.BLACK This part replaces 532190260. Price: $37.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
