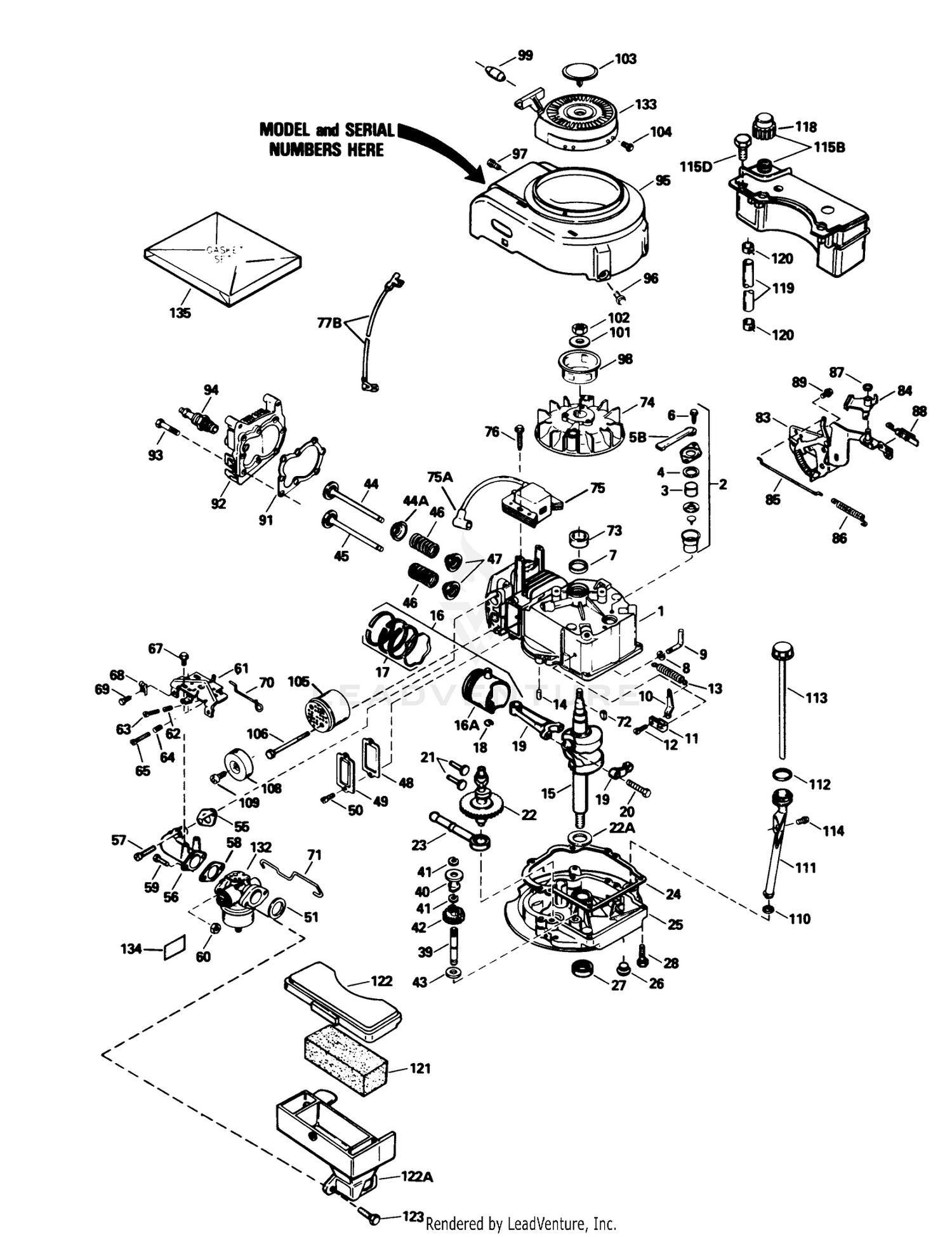

| Ref | Part Number | Description |
|---|
| 1 |
35010 |
Cylinder Assembly (Incl. Ref. #7 14) Price: Call Us |
| 2 |
34214A |
Breather Assy. (Incl. Ref. #46 thru 51) Price: Call Us |
| 3 |
33734 |
Element-Breather Price: Call Us |
| 4 |
33735 |
Gasket-Breather Price: Call Us |
| 5B |
33886 |
Tube, Breaker Price: Call Us |
| 6 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 7 |
32600 |
Seal-Oil Price: Call Us |
| 8 |
28277 |
Washer-Flat Price: Call Us |
| 9 |
30589 |
Rod, Governor (Incl. No. 6) Price: Call Us |
| 10 |
31383A |
Governor Lever Price: Call Us |
| 11 |
31335 |
Clamp-Lever, Governor Price: Call Us |
| 12 |
650548 |
Screw Price: Call Us |
| 13 |
31361 |
Spring Governor Price: Call Us |
| 14 |
26727 |
Pin-Dowel Price: Call Us |
| 15 |
35482 |
Crankshaft Price: Call Us |
| 16 |
35544 |
Piston-Pin Ring Assy. (Std.)(Incl. Ref. #16A, 17 18) Price: Call Us |
| 16 |
35545 |
Piston-Pin Ring Assembly (.010 oversize)(Incl. Ref. #16A, 17 18) Price: Call Us |
| 16 |
35546 |
Piston-Pin Ring Assembly (.020 oversize)(Incl. Ref. #16A, 17 18) Price: Call Us |
| 16A |
35541 |
Piston Pin Assembly (Std.)(Incl. Ref. #18) Price: Call Us |
| 16A |
35542 |
Piston Pin Assembly (.010 oversize)(Incl. Ref. #18) Price: Call Us |
| 16A |
35543 |
Piston Pin Assembly (.020 oversize)(Incl. Ref. #18) Price: Call Us |
| 17 |
35547 |
Ring Set-Piston (Std.) Price: Call Us |
| 17 |
35548 |
Ring Set, Piston(.0100versize) Price: Call Us |
| 17 |
35549 |
Ring Set (.020" OS) Price: Call Us |
| 18 |
20381 |
Ring-Retaining, Piston Pin Price: Call Us |
| 19 |
30963B |
Rod Assy., Connecting (Incl. Nos.18, 19 20) Price: Call Us |
| 20 |
32610A |
Bolt-Rod, Connecting Price: Call Us |
| 21 |
27241 |
Lifter-Valve Price: Call Us |
| 22 |
33553 |
Camshaft(Mech.Comp. Release) Price: Call Us |
| 22A |
32323 |
Washer-Thrust Price: Call Us |
| 23 |
29914 |
Oil Pump ASM Price: Call Us |
| 24 |
35261 |
Gasket Price: Call Us |
| 25 |
34311B |
Flange-Mounting (Incl. Ref. #26, 27 39) Price: Call Us |
| 26 |
27244 |
Plug Oil Drain Price: Call Us |
| 27 |
27897 |
Seal-Oil Price: Call Us |
| 28 |
650488 |
Screw (1/4-20 x 1-1/4) Price: Call Us |
| 39 |
30574 |
Shaft-Governor Price: Call Us |
| 40 |
30588A |
Spool-Governor Price: Call Us |
| 41 |
29193 |
Ring-Retaining Price: Call Us |
| 42 |
30591 |
Gear Assy., Governor (Incl. No.132) Price: Call Us |
| 43 |
35479 |
Washer Price: Call Us |
| 44 |
29314B |
Valve, Intake (Std.)(Incl. Ref. #9) Price: Call Us |
| 44 |
29315C |
Valve, Intake (1/32" Oversize) (Incl. Ref. #86) Price: Call Us |
| 44A |
35390 |
Seal Assy., Intake Price: Call Us |
| 45 |
29313C |
Valve, Exhaust (Std.) (Incl. Ref. #9) Price: Call Us |
| 45 |
29315C |
Valve, Intake (1/32" Oversize) (Incl. Ref. #86) Price: Call Us |
| 46 |
31672 |
Spring-Valve Price: Call Us |
| 47 |
31673 |
Cap-Valve, Spring Price: Call Us |
| 48 |
27234A |
Gasket-Cover, Valve Price: Call Us |
| 49 |
32755 |
Cover-Valve Price: Call Us |
| 50 |
650128 |
Screw Price: Call Us |
| 51 |
34338 |
Gasket-Cleaner, Air Price: Call Us |
| 55 |
34690A |
Gasket-Intake Pipe Price: Call Us |
| 56 |
31384A |
Pipe-Intake (Incl. Ref. #55) Price: Call Us |
| 57 |
650451 |
Screw (1/4-20 x 1) Price: Call Us |
| 58 |
26756 |
Gasket Price: Call Us |
| 59 |
111-1250 |
WHEEL 180X45 RIBBED This part replaces 6201. Price: $27.74 |
| 60 |
29752 |
Nut and Lock Washer (1/4-28) Price: Call Us |
| 61 |
33131A |
Bracket Assembly-Control (Incl. Ref. #62-65) Price: Call Us |
| 63 |
650777 |
Screw Price: Call Us |
| 64 |
31342 |
Spring-Compression Price: Call Us |
| 65 |
650549 |
Screw Price: Call Us |
| 67 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 68 |
27793 |
Conduit Price: Call Us |
| 69 |
28942 |
Screw (10-32 x 3/8) Price: Call Us |
| 71 |
34336 |
Link-Throttle Price: Call Us |
| 72 |
611004 |
Key-Flywheel Price: Call Us |
| 73 |
34080 |
Spacer Price: Call Us |
| 74 |
611112 |
Flywheel Price: Call Us |
| 75 |
34443A |
Solid State Price: Call Us |
| 75A |
610118 |
Cover-Spark Plug Price: Call Us |
| 76 |
650814 |
Screw Price: Call Us |
| 77B |
34961 |
Ground Wire Price: Call Us |
| 83 |
35015A |
Bracket-S.E. Brake Price: Call Us |
| 84 |
34968 |
Lever-Brake Price: Call Us |
| 85 |
34966 |
Link-Control Price: Call Us |
| 86 |
34965 |
Spring-Extension Price: Call Us |
| 87 |
32309 |
Ring-Retaining Price: Call Us |
| 88 |
610973 |
Terminal Price: Call Us |
| 89 |
650839 |
Screw (1/4-20 x 3/8) Price: Call Us |
| 91 |
33015A |
Gasket-Cylinder Head Price: Call Us |
| 92 |
34342 |
Head-Cylinder Price: Call Us |
| 93 |
6021A |
Screw (5/16-18x1-1/2) Price: Call Us |
| 94 |
35395 |
Spark Plug-Resistor (R J19 L M) Price: Call Us |
| 95 |
35484 |
Housing-Blower Price: Call Us |
| 96 |
650831 |
Screw (1/4-20 x 1/2) Price: Call Us |
| 97 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 98 |
35000 |
Hub-Starter Price: Call Us |
| 99 |
34985 |
Retainer-Starter Rope Price: Call Us |
| 101 |
650815 |
Washer-Belleville Price: Call Us |
| 102 |
650816 |
Nut-Flywheel Price: Call Us |
| 103 |
35392 |
Plug Starter Price: Call Us |
| 104 |
650884 |
Screw, Hex Hd. Price: Call Us |
| 105 |
27181B |
Muffler (Incl. Ref. #122) Price: Call Us |
| 106 |
650795 |
Screw Price: Call Us |
| 108 |
32431 |
Cover-Muffler Price: Call Us |
| 109 |
650760 |
Screw (8-32 x 3/8) Price: Call Us |
| 110 |
34265 |
Gasket Price: Call Us |
| 111 |
35577 |
Oil Fill Tube Price: Call Us |
| 112 |
35499 |
O-Ring Price: Call Us |
| 113 |
35578 |
Dipstick Price: Call Us |
| 114 |
650562 |
Screw (10-32 x 1/2) Price: Call Us |
| 115B |
34476 |
Tank Assembly (Incl. Ref. #118 120) Price: Call Us |
| 115D |
28763 |
Screw (10-32 x 35/64) Price: Call Us |
| 118 |
33032 |
Cap-Fuel Price: Call Us |
| 119 |
30705 |
Line-Fuel Price: Call Us |
| 120 |
26460 |
Clamp-Line, Fuel Price: Call Us |
| 121 |
34340 |
Filter-Air Cleaner Price: Call Us |
| 122 |
34341A |
Cover-Air Cleaner Price: Call Us |
| 122A |
34858 |
Body Air cleaner Price: Call Us |
| 123 |
650806 |
Screw Price: Call Us |
| 132 |
632098 |
Carburetor (Incl. Ref. #58) Price: Call Us |
| 133 |
590621 |
Starter-Rewind Price: Call Us |
| 134 |
34144 |
Decal-Primer Price: Call Us |
