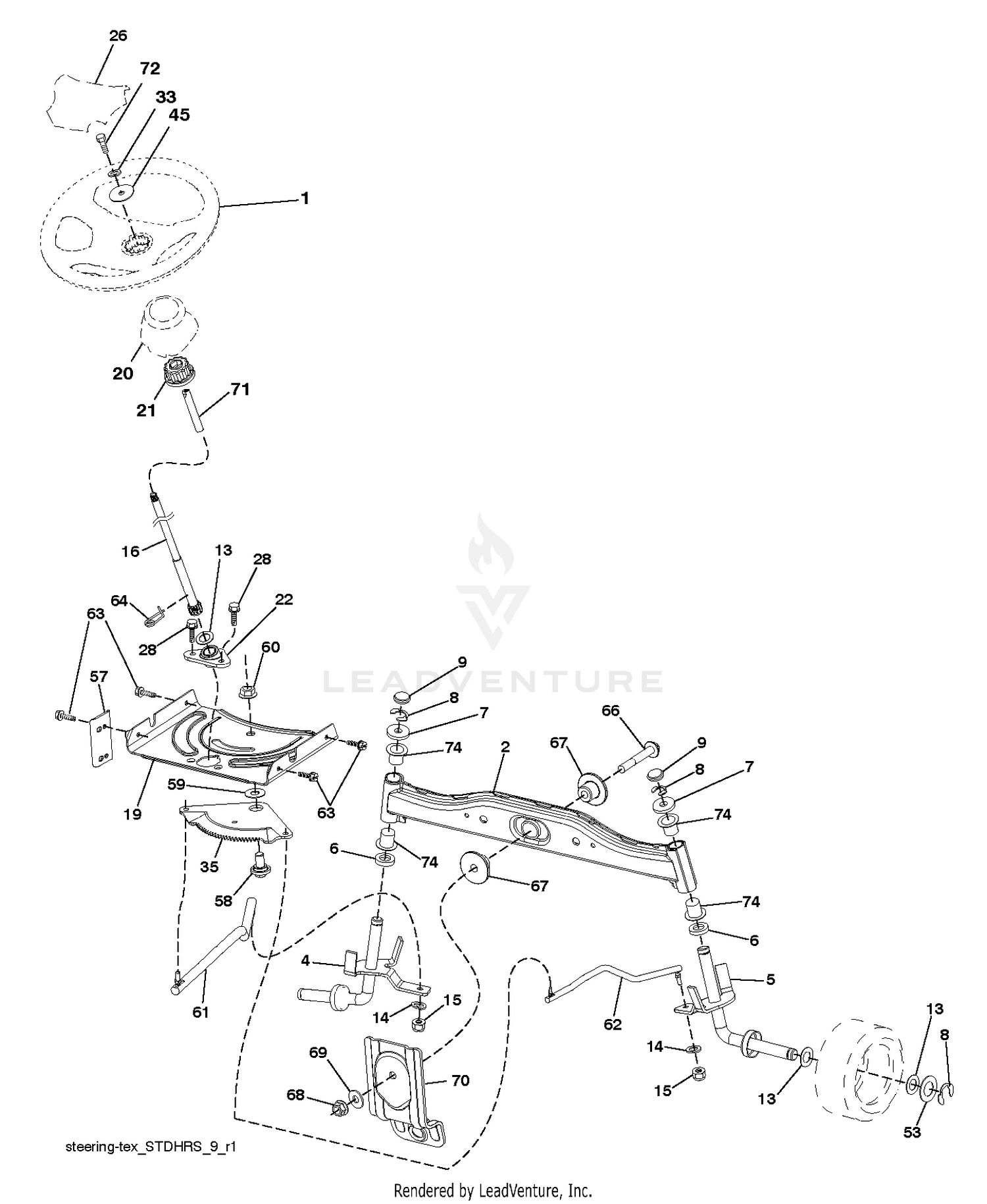

| Ref | Part Number | Description |
|---|
| 1 |
532424543 |
WHEEL.STEERING.HARD.RIM.BLAC Price: $27.99 |
| 1 |
92-9200 |
COVER Price: $276.63 |
| 2 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 2 |
532418168 |
AXLE HALF ASM-WELDED Price: $33.99 |
| 3 |
60-2160 |
R-CLIP ASM Price: $8.47 |
| 4 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 4 |
532416845 |
Price: $20.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
532416846 |
Price: $20.99 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 7 |
532121748 |
WASHER Price: $1.99 |
| 8 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
532121232 |
CAP.SPINDLE Price: $1.99 |
| 9 |
58-1650 |
ROD-SEAT Price: $110.80 |
| 10 |
82-9340 |
LEVEL SWITCH ASM Price: $201.99 |
| 11 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 13 |
532121749 |
WASHER Price: $1.99 |
| 14 |
110-0838 |
DELUXE SEAT ASM This part replaces 106-9988. Price: $1,941.99 |
| 14 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 15 |
46-0670 |
SCREW-PPH Price: $1.89 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.49 |
| 16 |
532429373 |
SHAFT.STEER.3/4.PLATED.TEX Price: $41.99 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 19 |
60-5580 |
SWITCH-TEMPERATURE Price: $178.50 |
| 20 |
323-7 |
SCREW-HH Price: $0.65 |
| 20 |
532409763 |
BOOT.STEERING.PREDATOR.LT.BLAC Price: $4.99 |
| 21 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 21 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 22 |
32128-21 |
NUT-HF Price: $0.39 |
| 22 |
532420537 |
STEERING.SUPT.LOWER. Price: $4.99 |
| 23 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 24 |
60-0050 |
SPRING-TRAY, SEAT Price: $78.73 |
| 25 |
58-1640 |
PIN-PIVOT, SEAT Price: $59.26 |
| 26 |
532424691 |
INSERT, WHEEL STEERING Price: $4.99 |
| 26 |
68-7850 |
STRIP-SEALING Price: $41.39 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 30 |
58-1580-03 |
FRAME-SEAT Price: $402.10 |
| 31 |
58-9830-03 |
PLATE-SEAT Price: $355.56 |
| 32 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 33 |
322-6 |
SCREW-HH Price: $0.45 |
| 33 |
810040500 |
LOCKWASHER Price: $2.99 |
| 34 |
2412-133 |
CLAMP-R Price: $3.19 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $19.99 |
| 36 |
71-4040 |
HYD FILLER ASM Price: $69.67 |
| 37 |
58-6820 |
GASKET Price: $13.28 |
| 45 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $2.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 60 |
873971000 |
NUT FLANGE LOCK 5/8-11 Price: $2.99 |
| 61 |
532194740 |
DRAGLINK.LH.BALLSTUD.D Price: $40.99 |
| 62 |
532194741 |
DRAGLINK.RH.BALLSTUD.D Price: $40.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.69 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 70 |
532417065 |
Price: $5.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 72 |
532428982 |
BOLT 5/16-18 X 4 W/PATCH Price: $2.99 |
