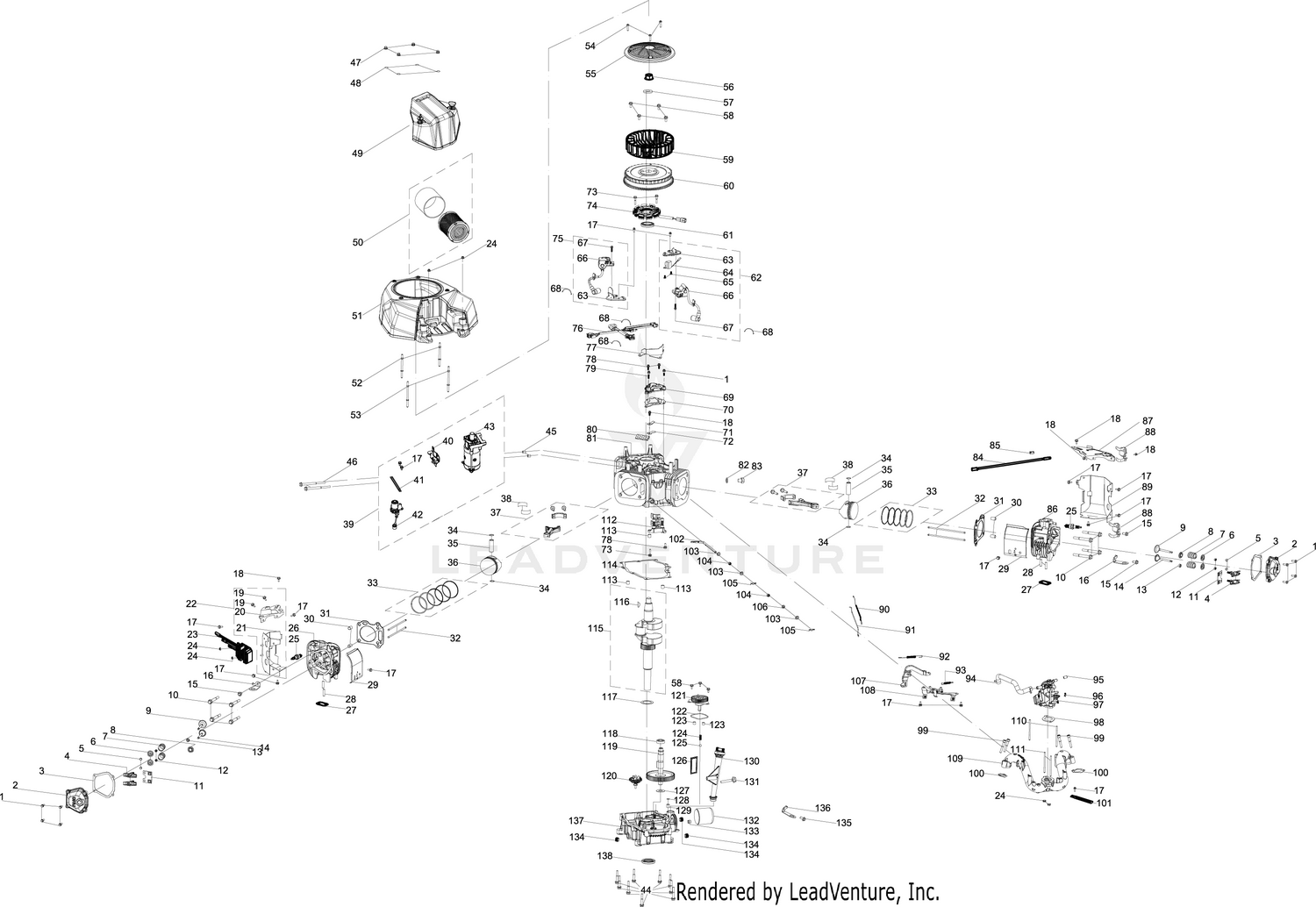

9Q78HW General Assembly
Parts (137)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-09816 | BOLT M6x22 Price: $2.45 |
| 2 | 951-15352 | VALVE COVER Price: $17.52 |
| 3 | 951-15576 | VALVE COVER GASKET Price: $8.76 |
| 4 | 951-11981A | ROCKER ARM ASSEMBLY Price: $35.16 |
| 5 | 951-12269 | EXHAUST VALVE ADJUSTER Price: $5.48 |
| 6 | 951-14911A | VALVE SPRING SEAT Price: $4.64 |
| 7 | 951-15356 | VALVE SPRING Price: $4.91 |
| 8 | 951-12077A | VALVE SPRING RETAINER Price: $3.49 |
| 9 | 951-15373 | INTAKE VALVE Price: $18.44 |
| 10 | 710-10634 | BOLT M10x1.25x87 Price: $1.58 |
| 11 | 951-11965B | PUSH ROD GUIDE Price: $5.75 |
| 12 | 951-14912A | VALVE CAP Price: $3.03 |
| 13 | 951-11964A | INTAKE VALVE SEAL Price: $9.96 |
| 14 | 951-15374 | EXHAUST VALVE Price: $21.94 |
| 15 | 710-10635 | BOLT M8x16 Price: $1.58 |
| 16 | 751P20988 | LIFT HOOK Price: $7.76 |
| 17 | 751-20117 | BOLT M6x12 Price: $2.45 |
| 18 | 751-20112 | BOLT M6x10 Price: $2.45 |
| 19 | 710-10637 | BOLT M6x10 Price: $1.58 |
| 20 | 751P20989 | FLYWHEEL SHROUD (LH) Price: $8.96 |
| 21 | 751P20990 | CYLINDER HEAD BAFFLE (LH) Price: $14.34 |
| 22 | 651P08037 | CYLINDER HEAD BAFFLE (LH) This part replaces 651-08037. Price: $20.13 |
| 23 | 951-15585 | EFI REGULATOR 9Q78 Price: $87.80 |
| 24 | 751-20110 | NUT M6 Price: $2.45 |
| 25 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 26 | 951-15804 | CYLINDER HEAD - LH Price: $228.32 |
| 27 | 921-04936 | EXHAUST GASKET Price: $7.02 |
| 28 | 751-20061 | STUD M8 X 34 Price: $2.39 |
| 29 | 751-21009 | Shroud Price: Call Us |
| 30 | 715-04097A | DOWEL PIN 12x20 Price: $4.64 |
| 31 | 921-04967 | CYLINDER HEAD GASKET Price: $13.13 |
| 32 | 951-15355 | PUSH ROD Price: $5.78 |
| 33 | 951-05422 | PISTON RIN SET Price: $24.21 |
| 34 | 951-11632A | PISTON PIN SNAP RING Price: $3.53 |
| 35 | 911-06733 | PISTON PIN Price: $5.90 |
| 36 | 951-15385 | PISTON ASSEMBLY Price: $40.38 |
| 37 | 951-05376 | CONNECTING ROD Price: $109.76 |
| 38 | 951-15587 | CONNETING ROS BEARING Price: $12.96 |
| 39 | 651-08636 | Electric Starter Price: Call Us |
| 40 | 751P22229 | STARTER RELAY SUPPORT BRACKET This part replaces 751-22229. Price: $3.17 |
| 41 | 951-15645A | SUPPORT CLAMP Price: $2.89 |
| 42 | 751-21011 | Starter Relay Price: Call Us |
| 43 | 751-21489 | ELECTRIC STARTER Price: Call Us |
| 44 | 710-10715 | BOLT M8x48 Price: $1.58 |
| 45 | 915-05026 | DOWEL PIN Price: $4.40 |
| 46 | 710-10674 | BOLT M8x10 Price: $1.58 |
| 47 | 712-04276A | ACORN NUT M6-1 This part replaces 712-04276. Price: $5.38 |
| 48 | 736-05109 | WASHER Price: $5.34 |
| 49 | 931-05427 | AIR FILTER COVER ASSEMBLY Q78 Price: $18.44 |
| 50 | 937-05075 | AIR FILTER Q78 Price: $25.43 |
| 51 | 931-05532 | SHROUD ASSEMBLY Price: $70.24 |
| 52 | 710-10675 | STUD Price: $1.58 |
| 53 | 710-10676 | Stud Price: Call Us |
| 54 | 710-09995 | SELF TAPPING BOLT 5.5x25 Price: $2.45 |
| 55 | 951-12205 | DEBRIS SHIELD Price: $9.07 |
| 56 | 712-06522 | NUT M20x1.5 Price: $3.17 |
| 57 | 936-05110 | WASHER 20.5 x 5 x 40 Price: $5.34 |
| 58 | 710-05003A | BOLT M6-1 x 18 Price: $3.11 |
| 59 | 751P21449 | COOLING FAN Price: $18.59 |
| 60 | 751P16106 | FLYWHEEL Price: $301.54 |
| 61 | 937-05067 | OIL SEAL 38 x 58 x 8 Price: $13.55 |
| 62 | 651-08056 | Trigger Ignition Coil Price: Call Us |
| 64 | 751-21014 | Trigger Price: Call Us |
| 65 | 710-10694 | Bolt, M5X12 Price: Call Us |
| 66 | 751-21029 | Ignition Module Price: Call Us |
| 67 | 710-10695 | Bolt, M5X20 Price: Call Us |
| 68 | 725-06031A | CABLE TIE 3x150 Price: $2.04 |
| 69 | 951-15810 | BEATHER COVER Price: $15.94 |
| 70 | 951-15811 | BREATHER COVER GASKET Price: $8.76 |
| 71 | 951-15399 | BREATHER REED BRACKET Price: $5.35 |
| 72 | 951-15398 | BREATHER REED ASSEMBLY Price: $5.25 |
| 73 | 751-20124 | BOLT M6x25 Price: $2.45 |
| 74 | 751-21030 | Charging Coil Price: Call Us |
| 75 | 651-08055 | Trigger Ignition Coil Price: Call Us |
| 76 | 725-15285 | Wire Harness Price: Call Us |
| 77 | 751-21048 | Wire Harness Bracket Price: Call Us |
| 78 | 751-20029 | BOLT M6x16 Price: $2.45 |
| 79 | 751-20113 | BOLT M6x28 Price: $2.45 |
| 80 | 951-15401 | BREATHER FILTER SCREEN Price: $5.25 |
| 81 | 951-15803A | CRANKCASE Price: $564.86 |
| 82 | 736-05221 | WASHER 20.5X1.5X18 Not Available Price: |
| 83 | 710-10714 | BOLT M10x1x10 Price: $1.58 |
| 84 | 951-15213 | TEMPERATURE SENSOR Price: $32.86 |
| 85 | 951-15212 | TEMPERATURE SENSOR CLIP Price: $6.01 |
| 86 | 951-15805 | CYLINDER HEAD - RH Price: $228.32 |
| 87 | 751-21068 | Shroud, Left Price: Call Us |
| 88 | 951-15460 | MOUNTING BRACKET Price: $6.24 |
| 89 | 751-21069 | Cylinder Head Baffle Price: Call Us |
| 90 | 932-05473 | GOVERNOR SPRING 9Q78 Price: $7.02 |
| 91 | 951-15332 | THROTTLE LINK Price: $5.78 |
| 92 | 932-05618 | GOVERNOR SPRING Price: $5.67 |
| 93 | 932-05532 | GOVERNOR SPRING - SECONDARY Price: $7.18 |
| 94 | 751-21070 | Breather Hose Price: Call Us |
| 95 | 951-12328 | RUBBER CAP Price: $3.49 |
| 96 | 931-12823 | THROTTLE LINK CLIP Price: $4.47 |
| 97 | 951-05310A | THROTTLE BODY Price: $561.15 |
| 98 | 921-04880 | THROTTLE BODY GASKET Price: $5.95 |
| 99 | 710-10734 | BOLT M8x50 Price: $1.58 |
| 100 | 921-04914 | INTAKE MANIFOLD GASKET 9Q78 Price: $8.76 |
| 101 | 951-15889 | CLIP Price: $4.62 |
| 102 | 951-15403 | GOVERNOR ARM ROD Price: $12.27 |
| 103 | 736-05188 | FLAT WASHER 8.5X15.8X2 Price: $2.73 |
| 104 | 941-05216 | NEEDLE BEARING 8X12X10 Price: $7.99 |
| 105 | 714-04077 | GOVERNOR SHAFT CLIP Price: $5.30 |
| 106 | 951-12388 | GOVERNOR SEAL Price: $3.69 |
| 107 | 751-21088 | Governor Lever Price: Call Us |
| 108 | 751-21089 | Governor Gear Bracket Assembly Price: Call Us |
| 109 | 619P05267 | INTAKE MANIFOLD Price: $95.43 |
| 110 | 710-10757 | Stud, M6X35 Price: Call Us |
| 111 | 710-10758 | Stud, M6X46 Price: Call Us |
| 112 | 951-15384 | ROACKER ARM Price: $79.54 |
| 113 | 715-05064 | PIN 8X12 Price: $3.33 |
| 114 | 921-04887 | CRANKCASE GASKET Price: $20.90 |
| 115 | 951-15366 | CRANKSHAFT ASSEMBLY Price: $377.43 |
| 116 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 117 | 736-05187 | WASHER - 38.5X1.0X54 Price: $3.71 |
| 118 | 941-05213 | CAMSHAFT BEARING Price: $9.78 |
| 119 | 951-15375 | CAMSHAFT ASSEMBLY Price: $157.36 |
| 120 | 951-05379 | GOVERNOR GEAR ASSEMBLY Price: $18.44 |
| 121 | 951-05449 | OIL PUMP ASSEMBLY Price: $68.93 |
| 122 | 921-04916 | OIL PUMP GASKET Price: $5.60 |
| 123 | 715-04088A | DOWEL PIN Price: $2.97 |
| 124 | 932-05534 | OIL PUMP SPRING Price: $4.49 |
| 125 | 951-15588 | OIL PUMP STEEL BALL Price: $3.50 |
| 126 | 951-15383 | OIL PUMP SCREEN Price: $10.52 |
| 127 | 736-05199 | THRUST WASHER 17.4X25.9X1.0 Price: $3.58 |
| 128 | 951-15589 | O-RING 13.2X2.65 Price: $3.50 |
| 129 | 951-15590 | CRANKCASE OIL PASSAGE PIN Price: $3.25 |
| 130 | 951-05450B | DIPSTICK Price: $29.58 |
| 131 | 710-10759 | BOLT M6x55 Price: $2.45 |
| 132 | 951-12690 | ENGINE OIL FILTER Price: $15.89 |
| 133 | 751P20788 | OIL FILTER ADAPTER Price: $2.63 |
| 134 | 751P20888A | DRAIN PLUG This part replaces 751-20888. Price: $2.98 |
| 135 | 710-10654 | BOLT M8x20 Price: $1.58 |
| 136 | 751P21008 | LIFT HOOK Price: $4.77 |
| 137 | 951-15360 | CRANKCASE COVER Price: $87.65 |
| 138 | 937-05190 | OIL SEAL 38 x 58 x 8 Price: $16.38 |
