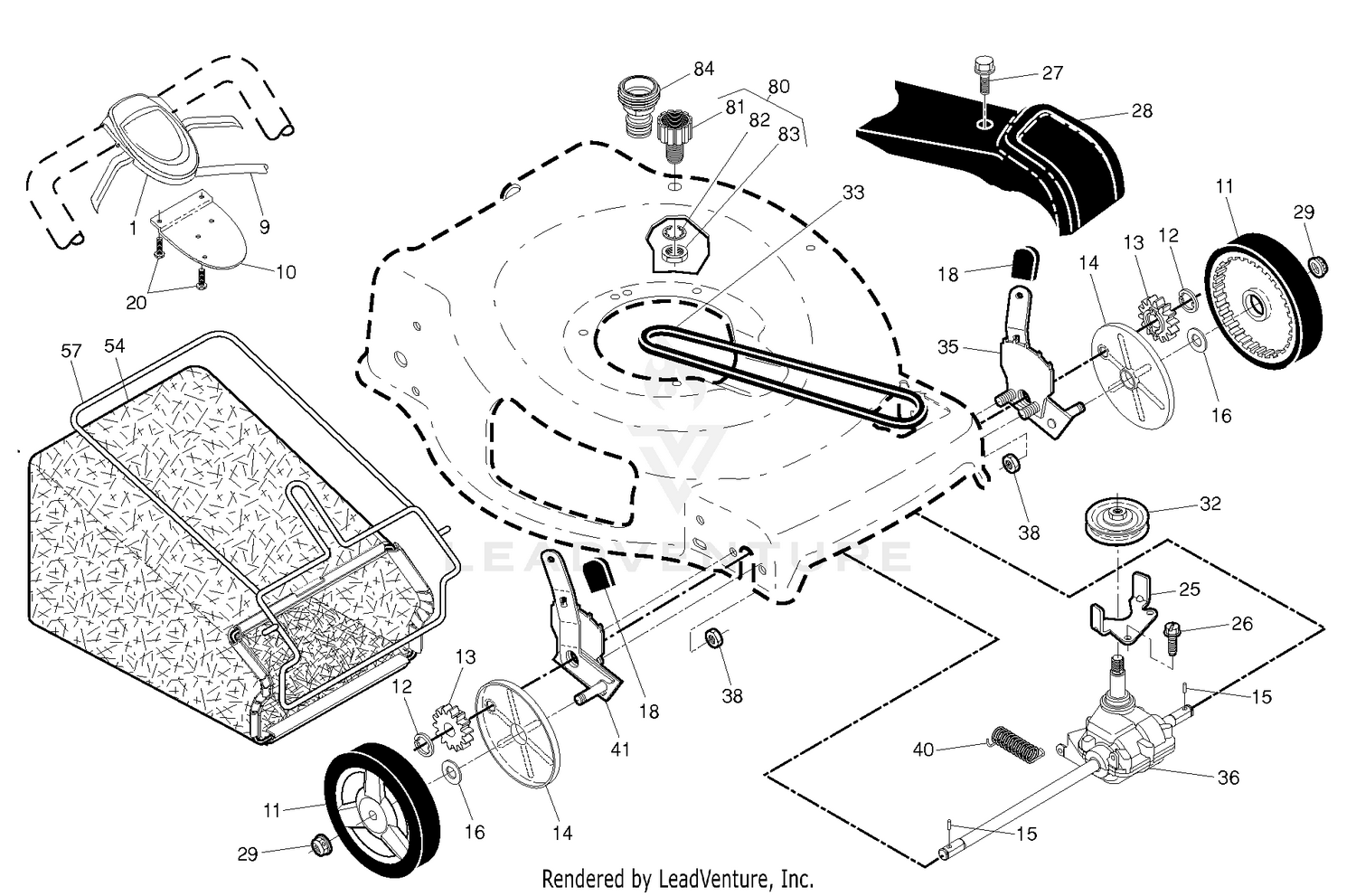

| Ref | Part Number | Description |
|---|
| 1 |
579708917 |
CONTROL.AW2.22FG.BS.GRAY/BLACK Price: $84.99 |
| 9 |
532431649 |
CABLE.CONTROL.22FGD.GEN2 Price: $44.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 20 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 25 |
532431711 |
BRACKET.BELT.GUIDE.22+FGD.BZP Price: $2.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 28 |
532421097 |
COVER.DRIVE.22.LABEL.HUSQVARNA Price: $14.99 |
| 29 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON Price: $9.99 |
| 33 |
532196853 |
BELT.DRIVE.FGD. This part replaces 532426609. Price: $17.99 |
| 35 |
581497907 |
ADJUSTER.ASM.22+FGD.LF /AWD LT This part replaces 532431144. Price: $14.99 |
| 36 |
589600601 |
TRANSMISSION.22+.FWGD.SS/VS This part replaces 532424657. Price: $109.99 |
| 38 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 40 |
532406558 |
SPRING Price: $6.99 |
| 41 |
581497908 |
ADJUSTER.ASM.22+FGD.RF /AWD RT This part replaces 532431142. Price: $19.99 |
| 54 |
580947302 |
GBAG.A3610010.BLK.GENERIC This part replaces 580947307. Price: $59.99 |
| 57 |
585054702 |
FRAME.GBAG.22+.BLK This part replaces 532419951. Price: $17.99 |
| 80 |
532421114 |
KIT.WASH-OUT.PORT Price: $14.99 |
| 81 |
532421114 |
KIT.WASH-OUT.PORT This part replaces 532419735. Price: $14.99 |
| 82 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 83 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
