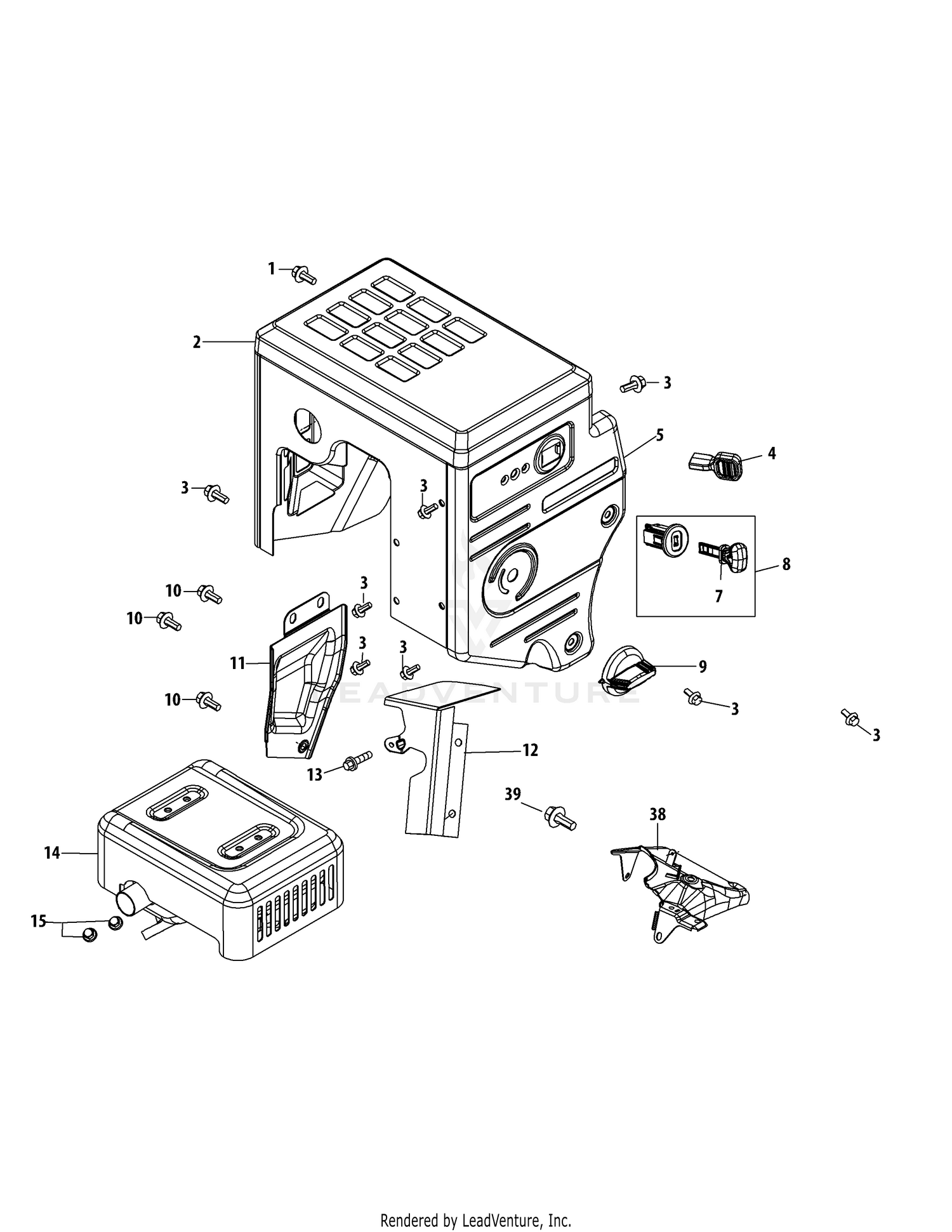

| Ref | Part Number | Description |
|---|
| 1 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 2 |
951-11339 |
Muffler Shield Price: $70.70 |
| 3 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 4 |
751P10757A |
THROTTLE LEVER KNOB This part replaces 951-10757. Price: $6.01 |
| 5 |
951-11595 |
Control Panel Price: $48.09 |
| 7 |
951-10630 |
Ignition Key This part replaces 731-05632. Price: $6.07 |
| 8 |
951-10637 |
Key Switch Assembly Price: $13.28 |
| 9 |
951-11302 |
Choke Knob Price: $5.94 |
| 10 |
710-04914 |
Bolt M6×10 Price: $3.71 |
| 11 |
951-11181 |
Exhaust Pipe Shield Price: $27.15 |
| 12 |
951-11321 |
CARBURETOR HEAT SHIELD Not Available Price: |
| 13 |
710-04968 |
Bolt M6×16 Price: $5.77 |
| 14 |
951-11338 |
Muffler Assembly Price: $129.46 |
| 15 |
712-05015 |
Nut, M8 Price: $5.78 |
| 38 |
951-11311 |
Throttle Control Assembly Price: $41.63 |
| 39 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 503479001 |
503479001 |
SCREW Price: $2.99 |
| 503479601 |
503479601 |
SCREW Price: $2.99 |
| 503480001 |
537020801 |
PIN This part replaces 503480001. Price: $2.99 |
| 503480101 |
503480101 |
SCREW Price: $2.99 |
| 503480501 |
503480501 |
SCREW Price: $2.99 |
| 503480801 |
503994301 |
SPRING This part replaces 503480801. Price: $2.99 |
| 503481101 |
503481101 |
PLUG Price: $3.99 |
| 503481801 |
503481801 |
SCREW Price: $2.99 |
| 503481901 |
503481901 |
BUSHING Price: $5.99 |
| 503523601 |
503523601 |
SCREW Price: $2.99 |
| 503535601 |
503535601 |
PLUG Price: $3.99 |
| 503535701 |
503535701 |
STRAINER Price: $3.99 |
| 503616601 |
503616601 |
GASKET Price: $2.99 |
| 503884401 |
503884401 |
Gasket Price: $1.00 |
| 503903101 |
503903101 |
WASHER Price: $2.99 |
| 503903201 |
503903201 |
LIMITER CAP Price: $4.99 |
| 503903301 |
503903301 |
LIMITER CAP Price: $3.99 |
| 503903401 |
503903401 |
SLEEVE Price: $6.99 |
| 537012501 |
537012501 |
BALL Price: $2.99 |
| 537012601 |
537012601 |
SPRING Price: $2.99 |
| 537175901 |
537175901 |
DIAPHRAGM Price: $19.99 |
| 537176001 |
537176001 |
COVER Price: $6.99 |
| 537176101 |
537176101 |
SPRING Price: $4.99 |
| 537176201 |
537176201 |
VALVE Price: $12.99 |
| 537176301 |
537176301 |
SPRING Price: $4.99 |
| 537176401 |
537176401 |
LEVER Price: $6.99 |
| 537176601 |
537176601 |
SPRING Price: $4.99 |
| 537176701 |
537380201 |
PUMP DIAPHRAGM This part replaces 537176701. Price: $14.99 |
| 537176801 |
537176801 |
COVER Price: $24.10 |
| 537176901 |
537176901 |
LEVER Price: $4.04 |
| 537177301 |
537177301 |
NEEDLE HIGH SPEED Price: $23.99 |
| 537177501 |
537177501 |
LEVER Price: $8.99 |
| 537177601 |
537177601 |
IDLE SCREW Price: $11.99 |
| 537177701 |
544056701 |
THROTTLE LOCK This part replaces 537177701. Price: $7.99 |
| 537177801 |
537177801 |
PLUG Price: $3.99 |
| 537177901 |
537380301 |
GASKET SET This part replaces 537177901. Price: $17.99 |
| 537178501 |
537178501 |
JET Price: $11.99 |
| 537266301 |
537266301 |
THROTTLE SHAFT Price: $34.99 |
| 537266401 |
537266401 |
Price: Call Us |
| 537266501 |
537416101 |
JET This part replaces 537266501. Price: $19.99 |
| 537266601 |
537266601 |
THROTTLE FLAP Price: $9.99 |
| 537266701 |
537266701 |
CHOKE SHAFT Price: $22.99 |
| 537266801 |
537266801 |
CHOKE FLAP Price: $4.99 |
| 537266901 |
537266901 |
LOW SPEED NEEDLE Price: $27.99 |
