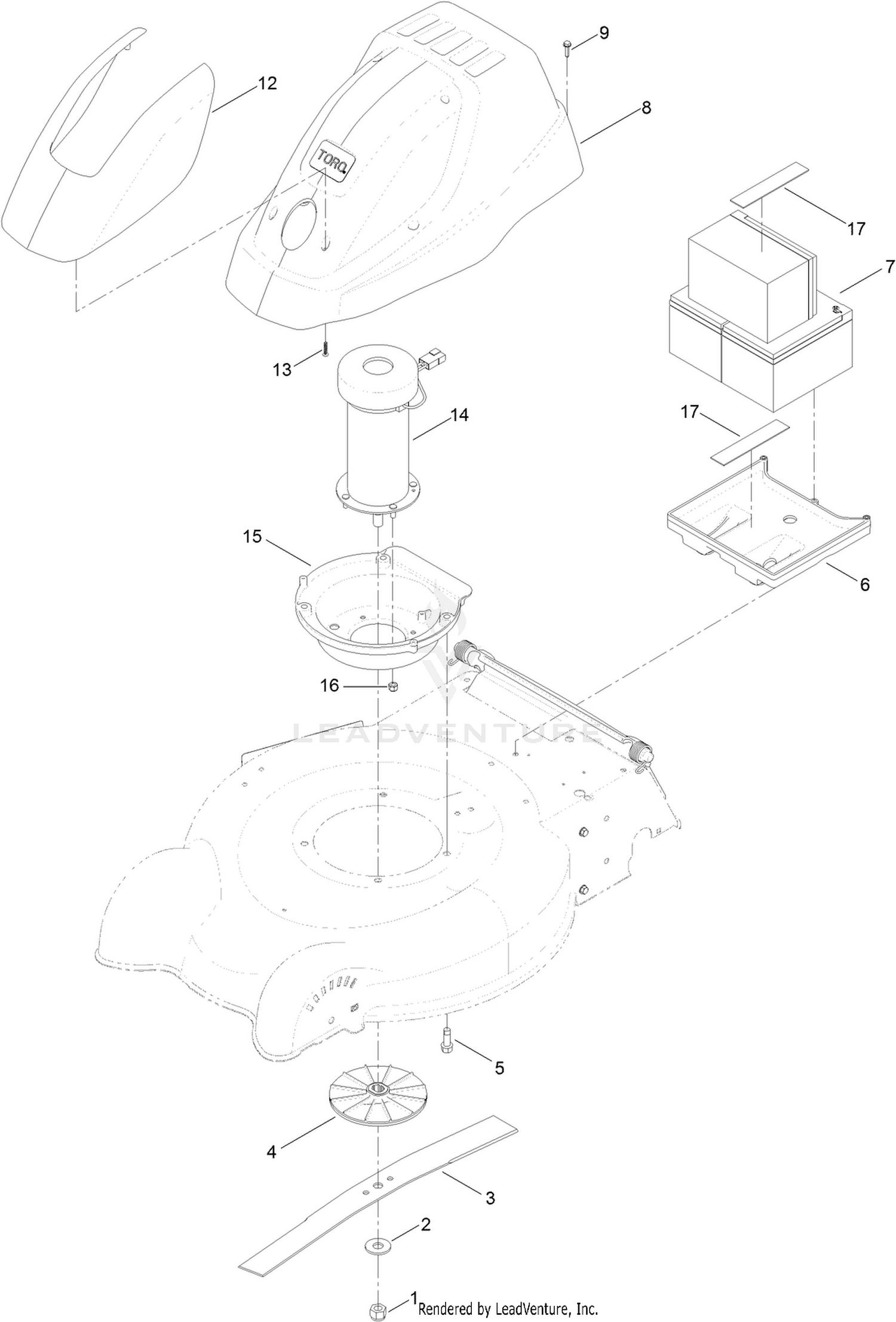

Shroud, 36 Volt Motor and Battery Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-19 | NUT-HEX Price: $0.65 |
| 2 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 3 | 119-0303-03 | BLADE-20 INCH Price: $22.97 |
| 4 | 119-3774 | FAN MOTOR ASM Price: $18.05 |
| 5 | 95-1726 | SCREW-TAPTITE Price: $1.79 |
| 6 | 119-0252 | TRAY-BATTERY Price: $6.37 |
| 7 | 119-7060 | BATTERY ASM Price: $184.11 |
| 8 | 119-7020 | SHROUD ASM Price: $72.58 |
| 9 | 100-4351 | SCREW-HWH Price: $1.49 |
| 12 | 119-0251 | COVER-SHROUD Price: $11.38 |
| 13 | 32144-111 | SCREW-PPH Price: $0.66 |
| 14 | 119-0254 | MOTOR-36V Price: $181.59 |
| 15 | 117-5999 | BASE-MOTOR Price: $32.66 |
| 16 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
