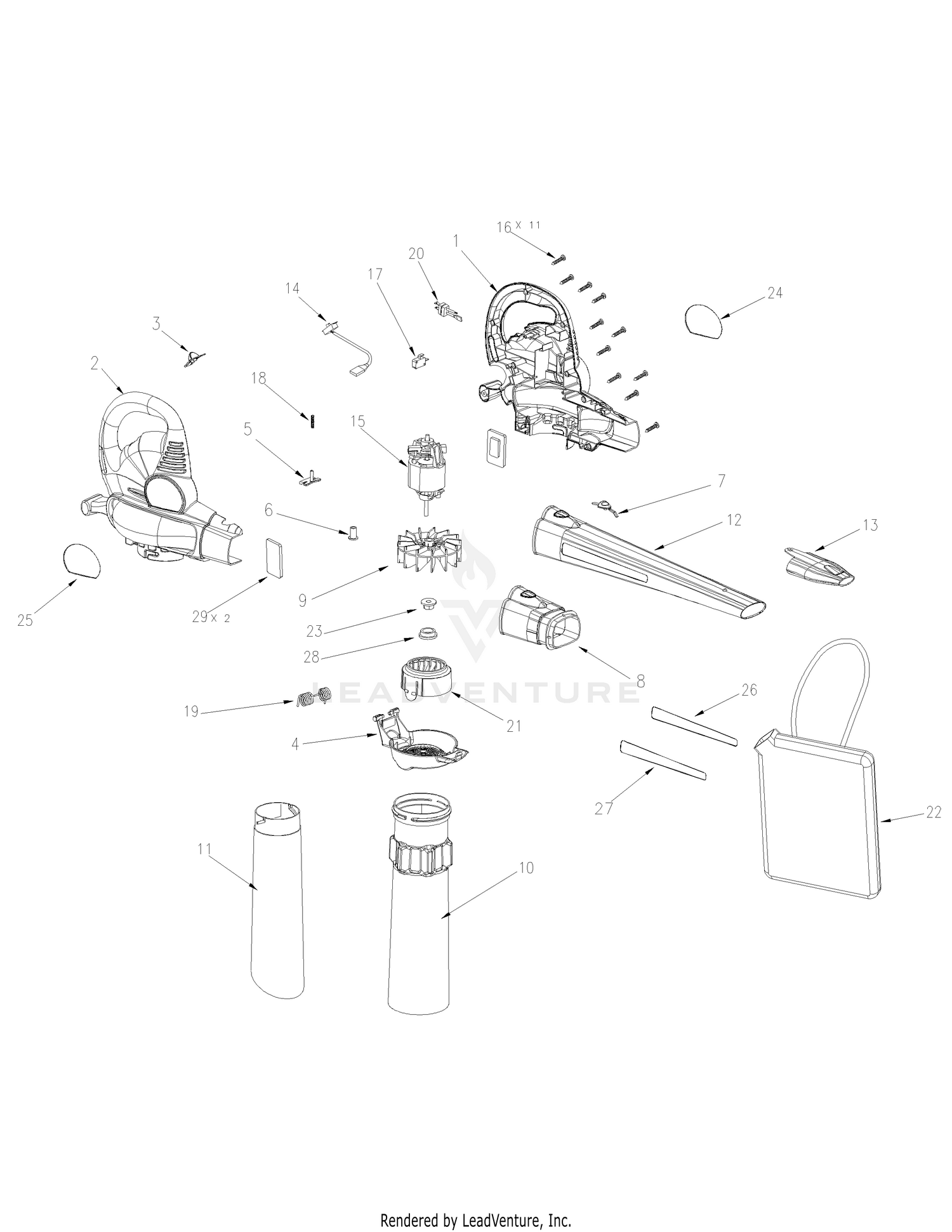

General Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MC-6038-MD1401 | HOUSING (RH) Not Available Price: |
| 2 | MC-6038-MD1402 | HOUSING (LH) Not Available Price: |
| 3 | MC-6056-MD1401 | KNOB Not Available Price: |
| 4 | MC-6068-MD1401 | VACUUM DOO Not Available Price: |
| 5 | MC-6114-MD1401 | PUSH ROD Not Available Price: |
| 6 | MC-6124-MD1401 | SHAFT SLEEVE Not Available Price: |
| 7 | MC-6134-MD1401 | BUTTON Not Available Price: |
| 8 | MC-6154-MD1401 | CONNECTING Not Available Price: |
| 9 | MC-6169-MD1401 | FAN Not Available Price: |
| 10 | MC-6129-MD1401 | UPPER VACUUM TUBE Not Available Price: |
| 11 | MC-6129-MD1402 | LOWER VACUUM TUBE Not Available Price: |
| 12 | MC-6129-MD1403 | CONCENTRATOR NOZZL Not Available Price: |
| 13 | MC-6129-MD1404 | REGULAR NO Not Available Price: |
| 14 | MC-6228-MD1401 | SWITCH ASSEMBLY Not Available Price: |
| 15 | MC-6099-MD1401 | MOTOR ASSEMBLY Not Available Price: |
| 16 | MC-6SDABB04-18 | SCREW Not Available Price: |
| 17 | MC-6022-MD1401 | MICRO SWITCH Not Available Price: |
| 18 | MC-6024-MD1401 | SPRING Not Available Price: |
| 19 | MC-6024-MD1402 | SPRING Not Available Price: |
| 20 | MC-6041-MD1401 | TERMINAL B Not Available Price: |
| 21 | MC-6017-MD1401 | AIR COLLEC Not Available Price: |
| 22 | MC-6279-MD1401 | VACUUM BAG Not Available Price: |
| 23 | MC-6NHZI5/16-24 | NUT Not Available Price: |
| 24 | MC-6097-MD1401 | LABEL (RH) Not Available Price: |
| 25 | MC-6097-MD1402 | LABEL (LH) Not Available Price: |
| 26 | MC-6052-MD1401 | LABEL Not Available Price: |
| 27 | MC-6052-MD1402 | LABEL Not Available Price: |
| 28 | MC-6013-MD1401 | ISOLATOR Not Available Price: |
