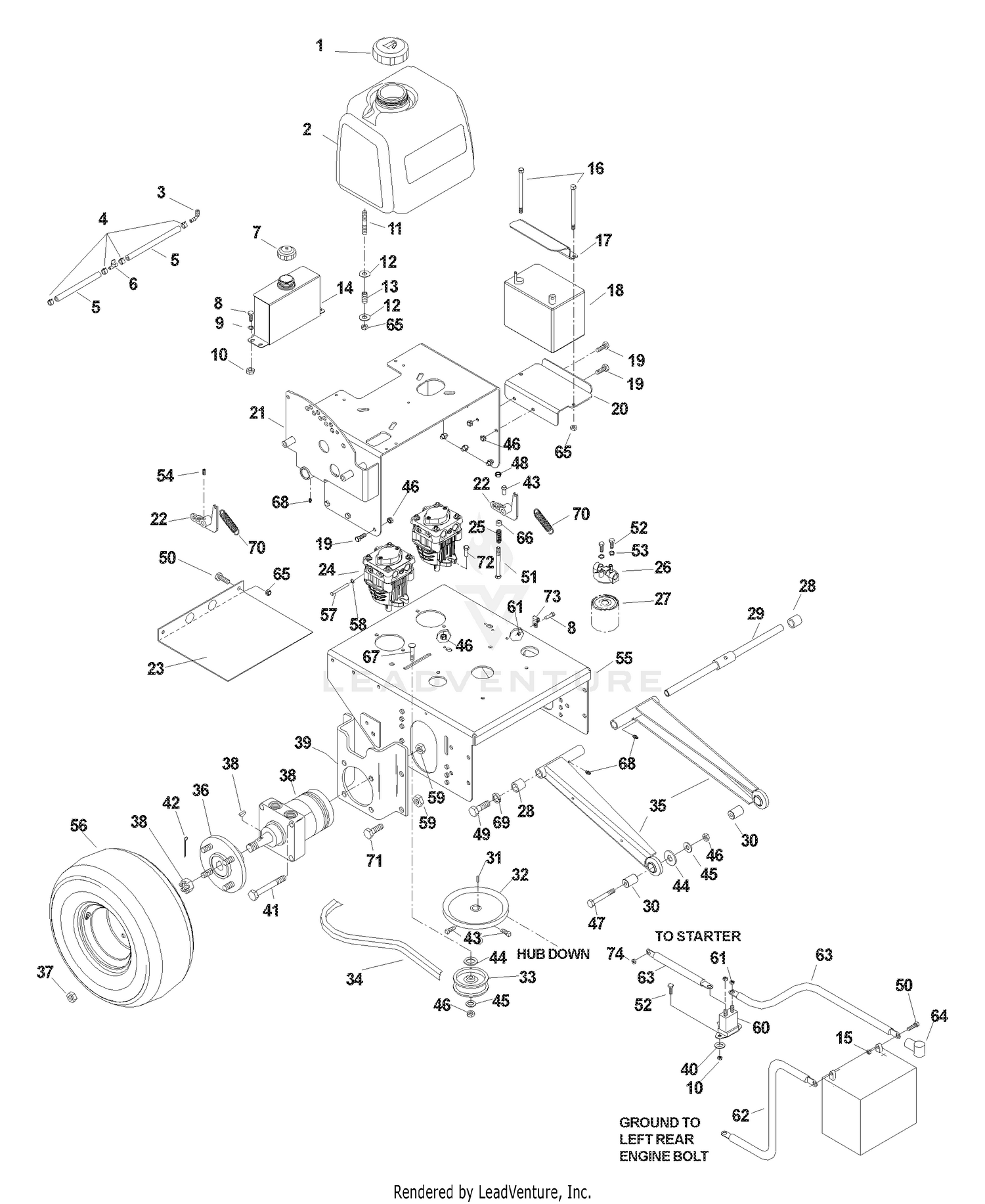

| Ref | Part Number | Description |
|---|
| 1 |
539130394 |
FUEL CAP, GENERIC This part replaces 539106188. Price: $27.99 |
| 1 |
67-3160 |
ROCKER ARM Price: $85.24 |
| 2 |
539105630 |
FUEL TANK Price: $201.99 |
| 2 |
67-3230 |
DISCONTINUED Price: Call Us |
| 3 |
539102650 |
HOSE BARB 90 DEGREE Price: $4.99 |
| 3 |
67-3240 |
SNAP RING Price: $0.87 |
| 4 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 4 |
67-3210 |
ADJUSTING SCREW Price: $10.58 |
| 5 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 5 |
67-3150 |
PUSH ROD Price: $16.61 |
| 6 |
539916325 |
FUEL VALVE Price: $9.99 |
| 6 |
67-3120 |
TAPPET Price: $39.70 |
| 7 |
539101202 |
HYDRAULIC CAP Price: $19.99 |
| 7 |
67-2910 |
GEAR Price: $205.68 |
| 8 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 8 |
75-5010 |
BRG SET STD - CONN ROD Price: $93.75 |
| 9 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 9 |
67-2850 |
CONNECTING ROD ASSEMBLY Price: $282.63 |
| 10 |
539990761 |
NUT 1/4C CENTER LOCK Price: $2.99 |
| 10 |
75-5080 |
PISTON & PIN SET - STD Price: $332.33 |
| 11 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 11 |
75-5050 |
RING SET - PISTON STD Price: $160.77 |
| 12 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 12 |
67-2860 |
BOLT Price: $10.69 |
| 13 |
539102845 |
SPRING Price: $2.99 |
| 13 |
67-2970 |
FLYWHEEL ASSY Price: $1,494.72 |
| 14 |
539105985 |
OIL TANK BLK Price: $131.99 |
| 14 |
67-2990 |
DISCONTINUED Price: Call Us |
| 15 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 15 |
67-2980 |
RING GEAR Price: $393.68 |
| 16 |
539105826 |
BOLT - 5/16 X 7 Price: $3.99 |
| 16 |
92-0845 |
CRANKSHAFT This part replaces 67-2920. Price: $3,048.45 |
| 17 |
42-9590 |
CONN ROD NUT Price: $10.19 |
| 17 |
539105942 |
BATTERY STRAP Price: $29.99 |
| 18 |
56-0480 |
WOODRUFF KEY Price: $3.88 |
| 18 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 19 |
539990134 |
SCREW 3/8C X 3/4 HEX CAP Price: $3.99 |
| 19 |
67-2930 |
CRANKSHAFT PULLEY Price: $752.90 |
| 20 |
539105943 |
BATTERY TRAY Price: $33.99 |
| 20 |
67-2950 |
DISCONTINUED Price: Call Us |
| 21 |
539105590 |
TANK SUPPORT Price: $279.99 |
| 21 |
67-2960 |
LOCKWASHER Price: $1.16 |
| 22 |
539105913 |
PUMP ARM WELDMENT Price: $59.99 |
| 22 |
67-2940 |
DISCONTINUED Price: Call Us |
| 23 |
539104547 |
LOWER BELT SHIELD Price: $37.99 |
| 23 |
67-4160 |
GASKET This part replaces 67-4310. Price: $4.78 |
| 24 |
539132147 |
HG_PUMP, 10CC W/O FAN OR RTN This part replaces 539108246. Price: $1,099.99 |
| 24 |
75-5110 |
DISCONTINUED Price: Call Us |
| 25 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 25 |
539101224 |
SPRING Price: $19.99 |
| 26 |
539101165 |
FILTER HEAD Price: $37.99 |
| 27 |
539102606 |
HYDRAULIC OIL FILTER Price: $22.99 |
| 28 |
539105806 |
SPACER Price: $22.99 |
| 28 |
67-3130 |
INTAKE VALVE Price: $61.71 |
| 29 |
539106446 |
STRUT SHAFT Price: $199.99 |
| 29 |
67-3140 |
EXHAUST VALVE Price: $61.97 |
| 30 |
539105641 |
FRONT SPACER Price: $14.99 |
| 30 |
92-1961 |
VALVE SEAL This part replaces 42-7870. Price: $14.93 |
| 31 |
539101177 |
KEY 5 MM SQ X 25 MM Price: $4.99 |
| 31 |
67-3110 |
SPRING Price: $7.88 |
| 32 |
539102228 |
PULLEY Price: $42.99 |
| 32 |
67-3100 |
RETAINER Price: $7.92 |
| 33 |
42-7860 |
RET LOCK MD 016483 Price: $8.42 |
| 33 |
539919078 |
IDLER PULLEY Price: $27.99 |
| 34 |
539101228 |
TRANSMISSION BELT Price: $37.99 |
| 34 |
67-3180 |
CAP Price: $9.39 |
| 35 |
539105577 |
STRUT WELDMENT Price: $179.99 |
| 35 |
67-3200 |
ROCKER STAY Price: $31.11 |
| 36 |
539101109 |
HUB.WHEEL.ZTR Price: $84.99 |
| 37 |
587653903 |
Nuts This part replaces 539101173. Price: $3.99 |
| 37 |
67-3220 |
PIN Price: $1.13 |
| 38 |
539103527 |
WHEEL MOTOR Price: $649.99 |
| 38 |
67-3190 |
DISCONTINUED Price: Call Us |
| 39 |
42-9660 |
WASHER Price: $2.50 |
| 39 |
539106491 |
MOTOR MOUNT Price: $36.99 |
| 40 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 40 |
67-3170 |
SPRING Price: $2.87 |
| 41 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 41 |
67-3260 |
WASHER Price: $1.58 |
| 42 |
33114-060 |
SCREW-HH This part replaces 42-9510. Price: $0.88 |
| 42 |
539990297 |
COTTER PIN Price: $2.99 |
| 43 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 43 |
67-3250 |
ROCKER STRAY BOLT Price: $9.00 |
| 44 |
43-3160 |
ADJ SCREW MM 409167 Price: $2.18 |
| 44 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 45 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 45 |
75-5120 |
DISCONTINUED Price: Call Us |
| 46 |
43-5960 |
DISCONTINUED Price: Call Us |
| 46 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 47 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 48 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 49 |
596583601 |
Bolts This part replaces 539990646. Price: $2.99 |
| 50 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 51 |
539106492 |
HEX SCREW 3/8-20 X 2.75 Price: $2.99 |
| 52 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 53 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 55 |
539105647 |
REAR DECK ORANGE PAINTED Price: $189.34 |
| 56 |
539105535 |
TIRE.TURF.SAVER.18X7.5-8 Price: $169.99 |
| 56 |
539105805 |
TIRE/WHEEL ASSY Price: $159.99 |
| 56 |
539912234 |
VALVE STEM TR-412 Price: $3.99 |
| 57 |
539102233 |
CLEVIS PIN Price: $1.99 |
| 58 |
596436201 |
Nuts This part replaces 539102234. Price: $1.99 |
| 59 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 60 |
539101714 |
SOLENOID Price: $22.99 |
| 61 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 62 |
539102758 |
CABLE-NEGATIVE Price: $12.99 |
| 63 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 64 |
539102759 |
INSULATOR Price: $3.99 |
| 65 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 66 |
539923515 |
SPACER Price: $4.99 |
| 67 |
595901401 |
Bolts This part replaces 539100145. Price: $2.99 |
| 68 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 69 |
539990254 |
WASHER 1/2" SPLIT LOCK Price: $2.99 |
| 70 |
539916159 |
SPRING-TRANS Price: $5.99 |
| 71 |
539990622 |
HCS 1/2C X 1 1/4 SERRATED HEAD Price: $3.99 |
| 72 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 73 |
539109867 |
DOUBLE TUBE CLAMP Price: $5.99 |
| 539103664 |
SEAL |
KIT - GEN I Price: $379.99 539103664 |
