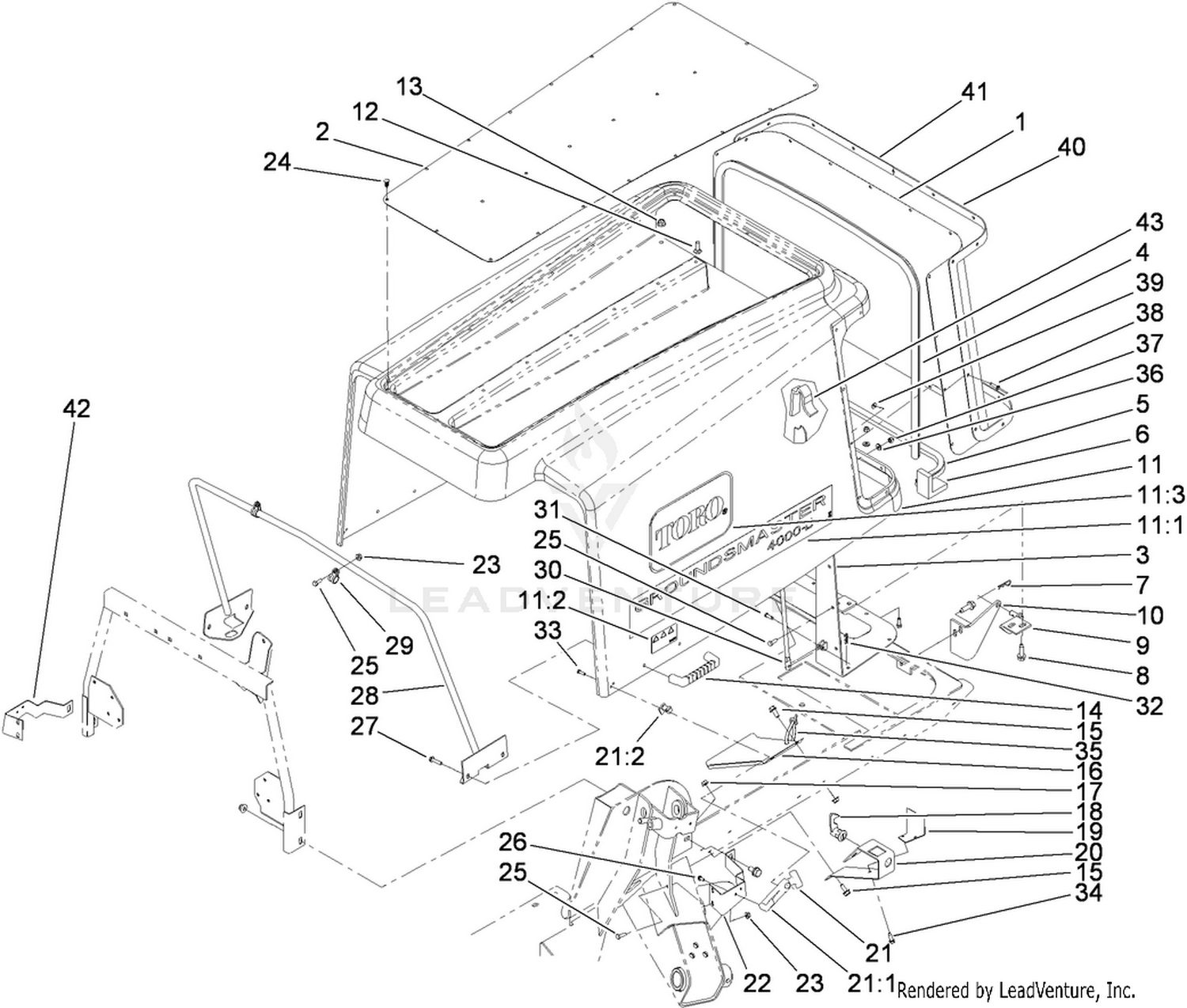

| Ref | Part Number | Description |
|---|
| 1 |
114-3844-03 |
SCREEN-REAR Price: $273.23 |
| 2 |
114-3845-03 |
SCREEN-TOP Price: $191.43 |
| 3 |
114-3824-03 |
SCREEN ASM Price: $488.94 |
| 4 |
114-3823 |
SEAL-BULB Price: $64.68 |
| 5 |
104-3590 |
SEAL-BULB Price: $37.82 |
| 6 |
104-3580 |
SEAL-CORNER, SCREEN Price: $32.63 |
| 7 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 8 |
32144-109 |
SCREW-THD Price: $1.29 |
| 9 |
104-3589 |
PIVOT-SCREEN Price: $79.95 |
| 10 |
104-3588-03 |
PIVOT-SCREEN Price: $32.46 |
| 11 |
114-3815 |
HOOD ASM Price: $2,196.30 |
| 12 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 15 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 16 |
104-3560-03 |
DEFLECTOR-FILTER, OIL Price: $45.90 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
98-5398 |
LATCH Price: $32.53 |
| 19 |
105-4531 |
COVER-LATCH Price: $32.23 |
| 20 |
104-3591-03 |
BRACKET-LATCH, HOOD Price: $50.28 |
| 21 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 22 |
104-2253-03 |
BRACKET-LATCH, LH Price: $66.38 |
| 23 |
32128-33 |
NUT-HF Price: $0.25 |
| 24 |
114-4899 |
PLUG-PLASTIC Price: $0.39 |
| 25 |
321-4 |
SCREW-HH Price: $0.99 |
| 26 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 27 |
137-3101 |
SCREW-PLASTIC, HWH This part replaces 46-8092. Price: $0.59 |
| 28 |
104-3505-03 |
SUPPORT-HOOD Price: $120.77 |
| 29 |
2412-134 |
CLAMP-R Price: $5.79 |
| 30 |
104-8313 |
ROD-HOOD Price: $58.83 |
| 31 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 32 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 33 |
32104-4 |
SCREW Price: $0.47 |
| 34 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 35 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 36 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 37 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 38 |
3269-28 |
RIVET-POP Price: $0.47 |
| 39 |
3269-26 |
WASHER-PLAIN Price: $0.99 |
| 40 |
115-3759-03 |
MOUNT-SCREEN, RH Price: $90.64 |
| 41 |
115-3758-03 |
MOUNT-SCREEN, LH Price: $90.64 |
| 42 |
104-2255-03 |
BRACKET-LATCH, RH Price: $66.38 |
