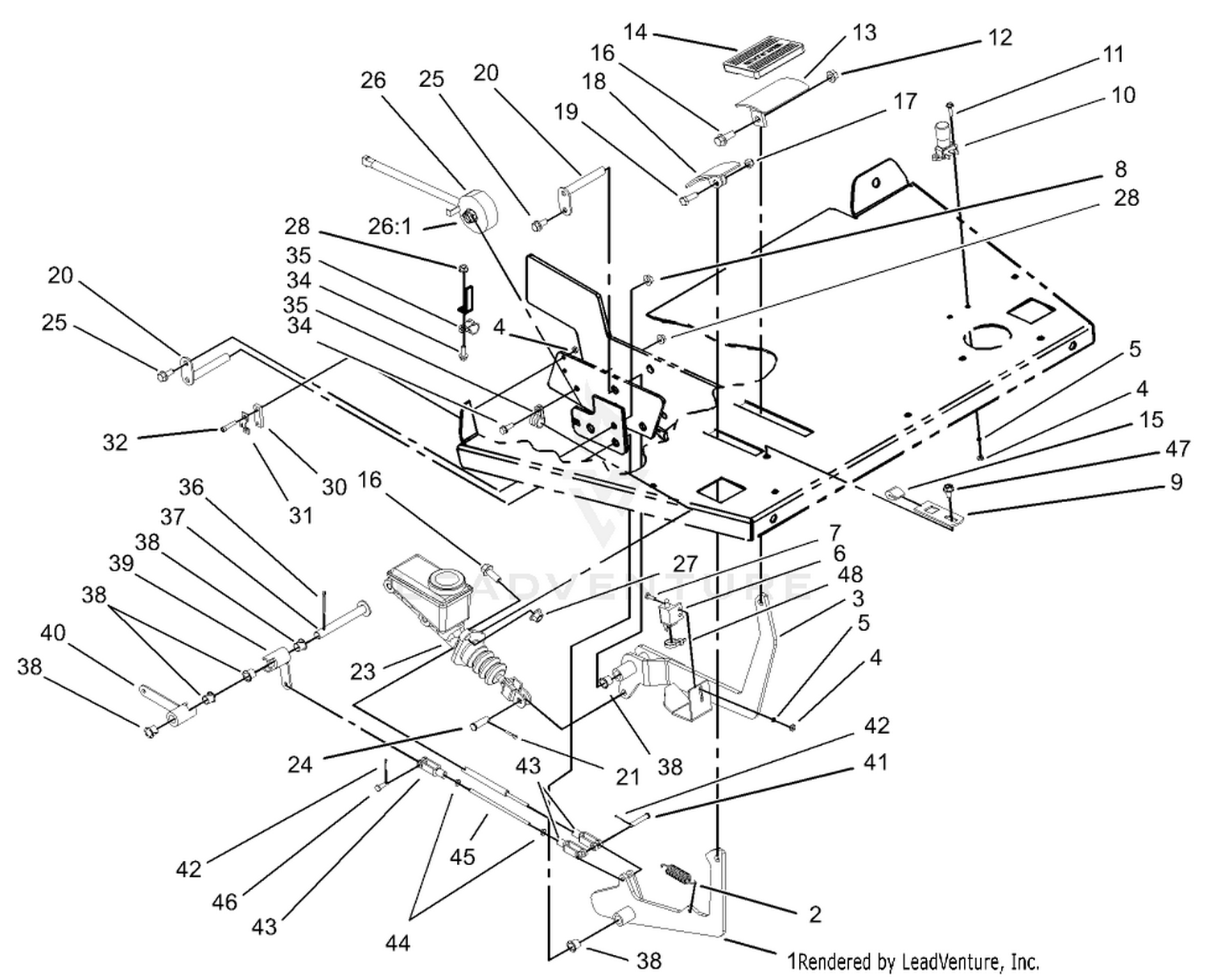

| Ref | Part Number | Description |
|---|
| 1 |
100-8367-03 |
ACCELERATOR-LEVER Price: $92.66 |
| 2 |
67-1450 |
SPRING-IDLER Price: $23.99 |
| 3 |
100-8553-03 |
BRAKE-LEVER Price: $232.79 |
| 4 |
3217-26 |
NUT-HEX Price: $0.25 |
| 5 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 6 |
1-513152 |
SWITCH-CLOSED, NORMALLY This part replaces 92-0305. Price: $10.93 |
| 7 |
3290-134 |
SCREW Price: $0.27 |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 9 |
104-8791-03 |
PLATE-PEDAL, STOP Price: $22.48 |
| 10 |
110-5189 |
SWITCH-FLOOR This part replaces 94-7170. Price: $21.35 |
| 11 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 12 |
32128-21 |
NUT-HF Price: $0.39 |
| 13 |
100-8422-0P |
BRACKET-PEDAL, WELDED This part replaces 100-8422-03. Price: $63.76 |
| 14 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 15 |
100-6702 |
STOP-LEVER, PEDAL Price: $16.18 |
| 16 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 17 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 18 |
93-8969-03 |
PEDAL Price: $44.32 |
| 19 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 20 |
100-8554 |
PIN-PIVOT Price: $48.79 |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 23 |
94-3800 |
MASTER CYLINDER ASM Price: $270.15 |
| 24 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 25 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 26 |
99-8090 |
MAGNET ASM Price: $290.99 |
| 27 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 28 |
32128-33 |
NUT-HF Price: $0.25 |
| 30 |
100-8561 |
PLATE-SPACER Price: $15.04 |
| 31 |
100-8560 |
BRACKET-THROTTLE Price: $12.70 |
| 32 |
3274-81 |
SCREW-HSH Price: $0.74 |
| 34 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 35 |
2412-134 |
CLAMP-R Price: $5.79 |
| 36 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 37 |
100-8517 |
PIVOT PIN ASM Price: $49.81 |
| 38 |
256-257 |
BUSHING-NYLINER Price: $3.19 |
| 39 |
100-8515 |
ARM-ACTUATOR, SHORT Price: $89.05 |
| 40 |
100-8512 |
ARM-ACTUATOR, LONG Price: $88.90 |
| 41 |
283-66 |
PIN-CLEVIS Price: $3.05 |
| 42 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 43 |
282-28 |
CLEVIS-ADJUSTABLE Price: $58.02 |
| 44 |
3219-14 |
NUT-HEX Price: $0.25 |
| 45 |
100-8562 |
ROD-THREADED Price: $14.85 |
| 46 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 47 |
3234-28 |
SCREW-HHF Price: $1.59 |
