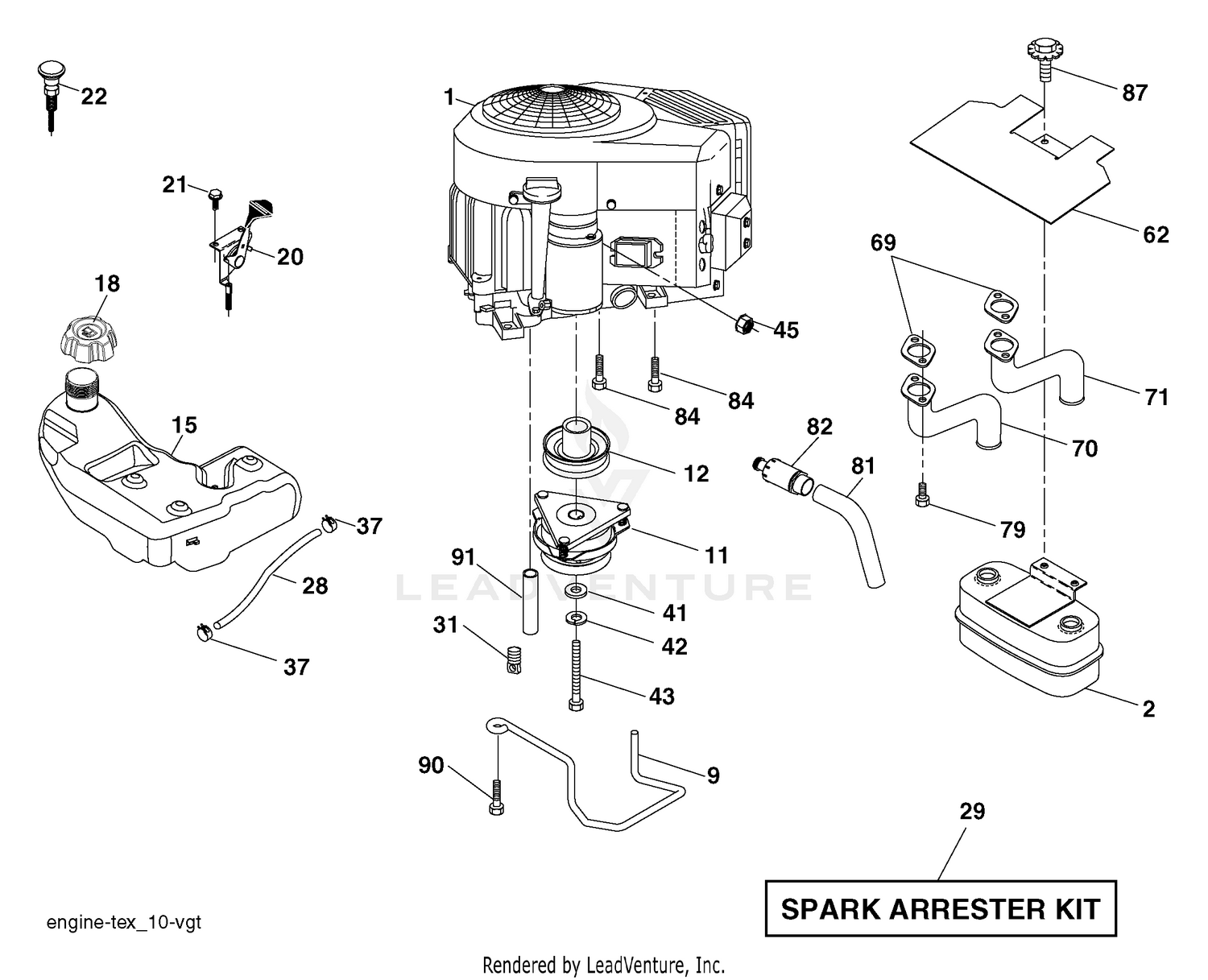

| Ref | Part Number | Description |
|---|
| 1 |
100-6571 |
HOOD ASM This part replaces 14-7149. Price: $1,342.17 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 3 |
63-7030-03 |
SCREEN-HOOD REAR This part replaces 63-7030. Price: $141.98 |
| 4 |
321-3 |
SCREW-HH Price: $0.28 |
| 5 |
93-3186 |
DISCONTINUED Price: Call Us |
| 6 |
32128-33 |
NUT-HF Price: $0.25 |
| 7 |
93-3193 |
DISCONTINUED Price: Call Us |
| 8 |
66-8110 |
TRIM-HOOD Price: $4.91 |
| 9 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
63-6900-01 |
LH HOOD HINGE PLATE ASM This part replaces 63-6900. Price: $23.15 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532179334. Price: $329.99 |
| 11 |
76-4790 |
PAD-RUBBER Price: $17.89 |
| 12 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 12 |
532402980 |
PULLEY.ENGINE.ENX Price: $49.99 |
| 13 |
3274-32 |
SCREW-HSBH Price: $4.79 |
| 14 |
66-3040-03 |
COVER-BOX, TOOL This part replaces 66-3040. Price: $26.24 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 15 |
66-3050 |
DISCONTINUED Price: Call Us |
| 16 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 17 |
92-8797 |
DECAL-WARNING Price: $33.38 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 18 |
84-1960 |
DECAL - SERVICE,GM 223D Price: $34.07 |
| 19 |
92-6501 |
DISCONTINUED Price: Call Us |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 20 |
63-7310 |
DISCONTINUED Price: Call Us |
| 21 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 24 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 25 |
32128-20 |
NUT-HF Price: $0.99 |
| 26 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 27 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 28 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
66-3200 |
TREAD-FOOTREST, LH Price: $7.38 |
| 30 |
66-3210 |
TREAD-FOOTREST, LH Price: $30.94 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 31 |
92-5540 |
TREAD-FOOTREST, RH Price: $23.53 |
| 32 |
63-7320 |
DISCONTINUED Price: Call Us |
| 33 |
66-8760 |
DISCONTINUED Price: Call Us |
| 34 |
53-4430 |
DECAL-OIL Price: $8.99 |
| 35 |
92-6500 |
DISCONTINUED Price: Call Us |
| 36 |
92-5545-01 |
COVER-TOWER, FRONT This part replaces 92-5545. Price: $78.48 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
62-5550 |
DECAL Price: $9.32 |
| 38 |
92-5772 |
DISCONTINUED Price: Call Us |
| 39 |
63-7300 |
DISCONTINUED Price: Call Us |
| 40 |
63-8050 |
BOX-CONTROL Price: $106.29 |
| 41 |
106-8095 |
DECAL-TOWER This part replaces 66-2470. Price: $48.49 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
63-6890-01 |
RH HOOD HINGE PLATE ASM This part replaces 63-6890. Price: $12.36 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 44 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 |
66-2870 |
CABLE-HOOD STOP Price: $27.51 |
| 46 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 47 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 48 |
3290-271 |
RIVET-POP Price: $0.25 |
| 49 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 51 |
82-8950 |
FOAM Price: $13.01 |
| 53 |
92-5548-01 |
SHIELD-STOP, PEDAL This part replaces 92-5548. Price: $31.35 |
| 54 |
321-4 |
SCREW-HH Price: $0.99 |
| 58 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 59 |
32148-7 |
NUT-CLINCH Price: $0.98 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
