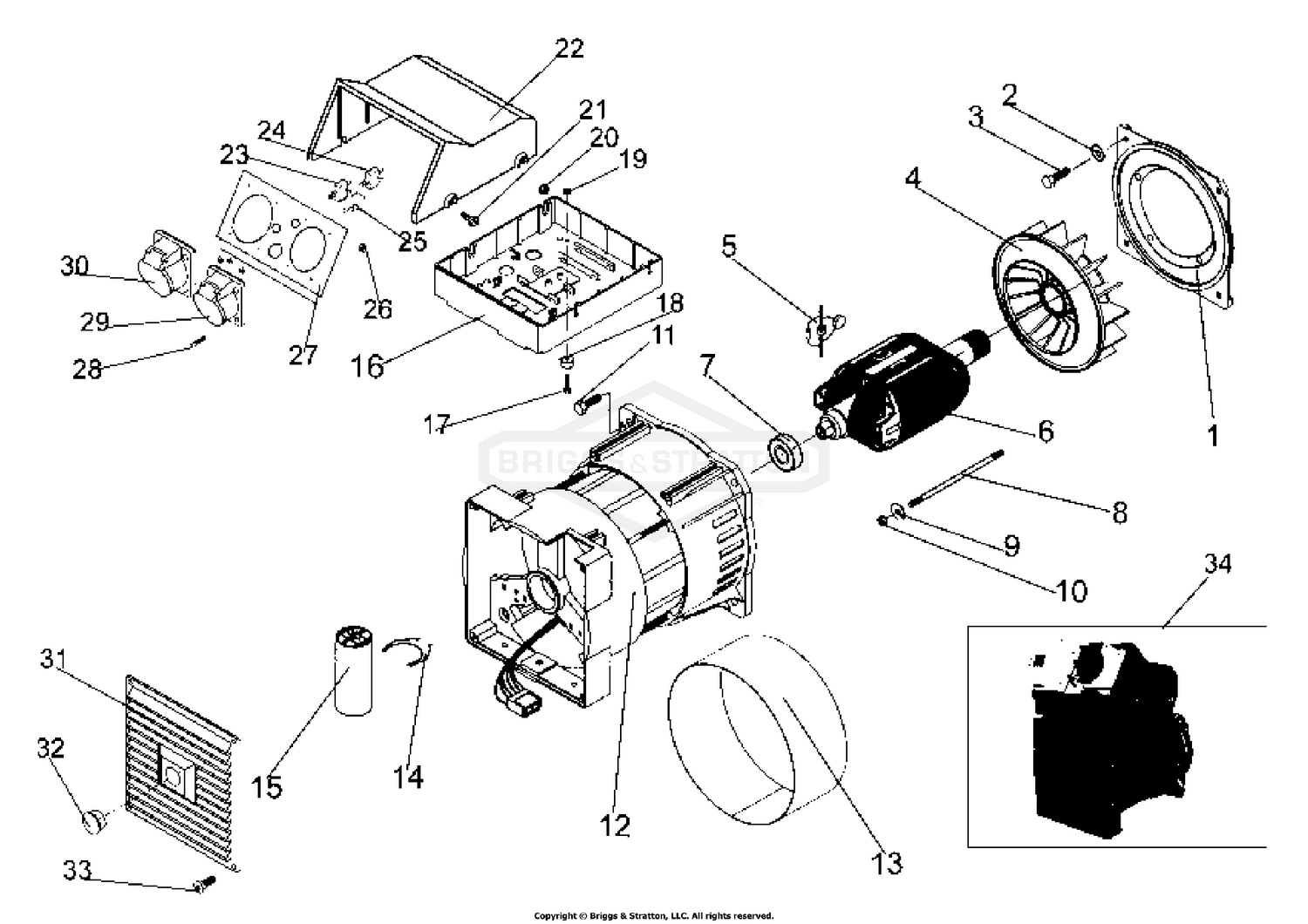

Alternator With Outlet Panel

Alternator With Outlet Panel

Parts (33)

RefPart NumberDescription
1 102138GS FLANGE PLATE Price: Call Us
2 ~NSP WASHER LOCK M10/ 3/8 OXY BLACK Price: Call Us
3 ~NSP SCREW CAP 3/8" UNC X 1" Price: Call Us
4 102073GS ROTOR FAN SINCRO Price: Call Us
5 B4916GS KIT-CAPACITOR DIODE & VAR This part replaces 102052GS. Price: $18.55
6 102217GS ROTOR ASSY SINCRO GP3.5 Price: Call Us
7 102038GS ROTOR BEARING Price: Call Us
8 102160GS ROTOR BOLT 265MM M8-1.25*16MM+5/16"UNF*9/16" Price: Call Us
9 ~NSP WASHER FLAT M8 & 5/16" Price: Call Us
10 ~NSP NUT NYLOCK M8-1.25 TYPE T Price: Call Us
11 ~NSP SCREW SET 5/16"UNF X 3/4" Price: Call Us
12 102218GS STATOR ASSEMBLY SINCRO GP3.5/EP4.2 Price: Call Us
13 ~NSP STATOR COVER BAND Price: Call Us
14 ~NSP CAPACITOR CLIP EP SERIES Price: Call Us
15 102219GS CAPACITOR 31.5UF Price: Call Us
16 102399GS OUTLET BOX BASE (TOP BOX) Price: Call Us
17 ~NSP SCREW MACHINE M5*20MM Price: Call Us
18 102401GS SPACER 7MM Price: Call Us
19 ~NSP NUT NYLOCK M4 Price: Call Us
20 ~NSP NUT LOCKING FLANGE M6 Price: Call Us
21 ~NSP SCREW M6 * 15MM Price: Call Us
22 102403GS TOP BOX COVER (SINCRO EP SERIES) Price: Call Us
23 102289GS CIRCUIT BREAKER 30A Price: Call Us
24 102133GS CIRCUIT BREAKER 15A Price: Call Us
25 102404GS SWITCH VOLTAGE CHANGE-OVER Price: Call Us
26 ~NSP NUT NYLOCK M5 Price: Call Us
27 102405GS TOP BOX BLANK FRONT PANEL ALUMINIUM Price: Call Us
28 ~NSP SCREW MACHINE PPHD M4*20MM Price: Call Us
29 102418GS SOCKET OUTLET 16A 230V Price: Call Us
30 102406GS SOCKET OUTLET 32A 115V Price: Call Us
31 102407GS END PANEL BLANK Price: Call Us
32 102085GS END CAP PLASTIC (OUTLET PANEL) Price: Call Us
33 ~NSP SCREW MACHINE PPHD M5*10MM Price: Call Us
