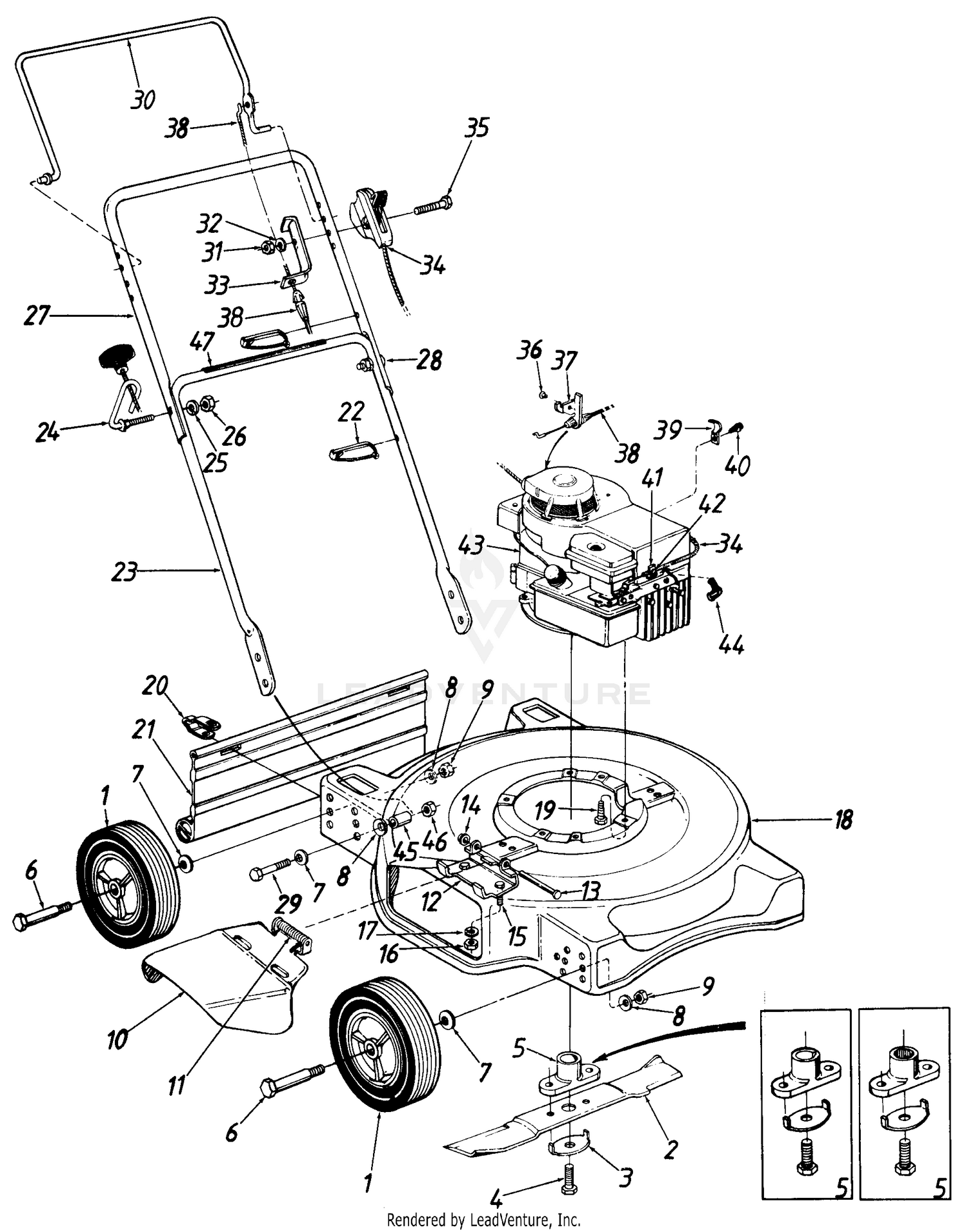

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Wheel Ass'y. Complete |
| 3 |
753-0525 |
KIT-BLADE MOUNTING Not Available This part replaces 736-0415. Price: |
| 5 |
753-0462 |
KIT-BLADE Not Available Price: |
| 7 |
736-0105 |
Bell-Wash. .380" I.D. x .88" O.D. Price: $3.96 |
| 8 |
736-0331 |
Bell-Wash. .39 I.D. x 1.13 O.D. Price: $3.50 |
| 9 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 10 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 14944. Price: |
| 11 |
732-0253 |
TORSION SPRING Not Available Price: |
| 12 |
11130 |
ADAPTER PLATE Not Available Price: |
| 13 |
711-0555 |
PIVOT PIN Not Available Price: |
| 14 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 15 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 16 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 17 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 19 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 20 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 21 |
731-0872B |
Rear Flap Not Available This part replaces 731-0872. Price: |
| 22 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 23 |
749-0928A-0637 |
Lower Handle This part replaces 749-0373. Price: $29.67 |
| 24 |
710-0842 |
OPE GUIDE BOLT Not Available Price: |
| 25 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 26 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 27 |
749-0754 |
UPPER HANDLE Not Available Price: |
| 28 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 29 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 30 |
747-0550 |
HANDLE-CONTROL Not Available Price: |
| 31 |
712-0138 |
Hex Nut 1/4-28 Thd.* Price: $5.99 |
| 32 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 33 |
16201 |
BRACKET-CA Not Available Price: |
| 35 |
710-0559 |
SCREW 1/4-28 x 1.75 GR5 Not Available Price: |
| 43 |
N/A |
Engine |
| 45 |
750-0727 |
SPACER Not Available Price: |
| 46 |
712-0214 |
Hex Lock Nut 3/8-24 Thd. Price: $5.94 |
| 17043 |
22" |
Deck Ass'y. Price: Call Us 17043 |
