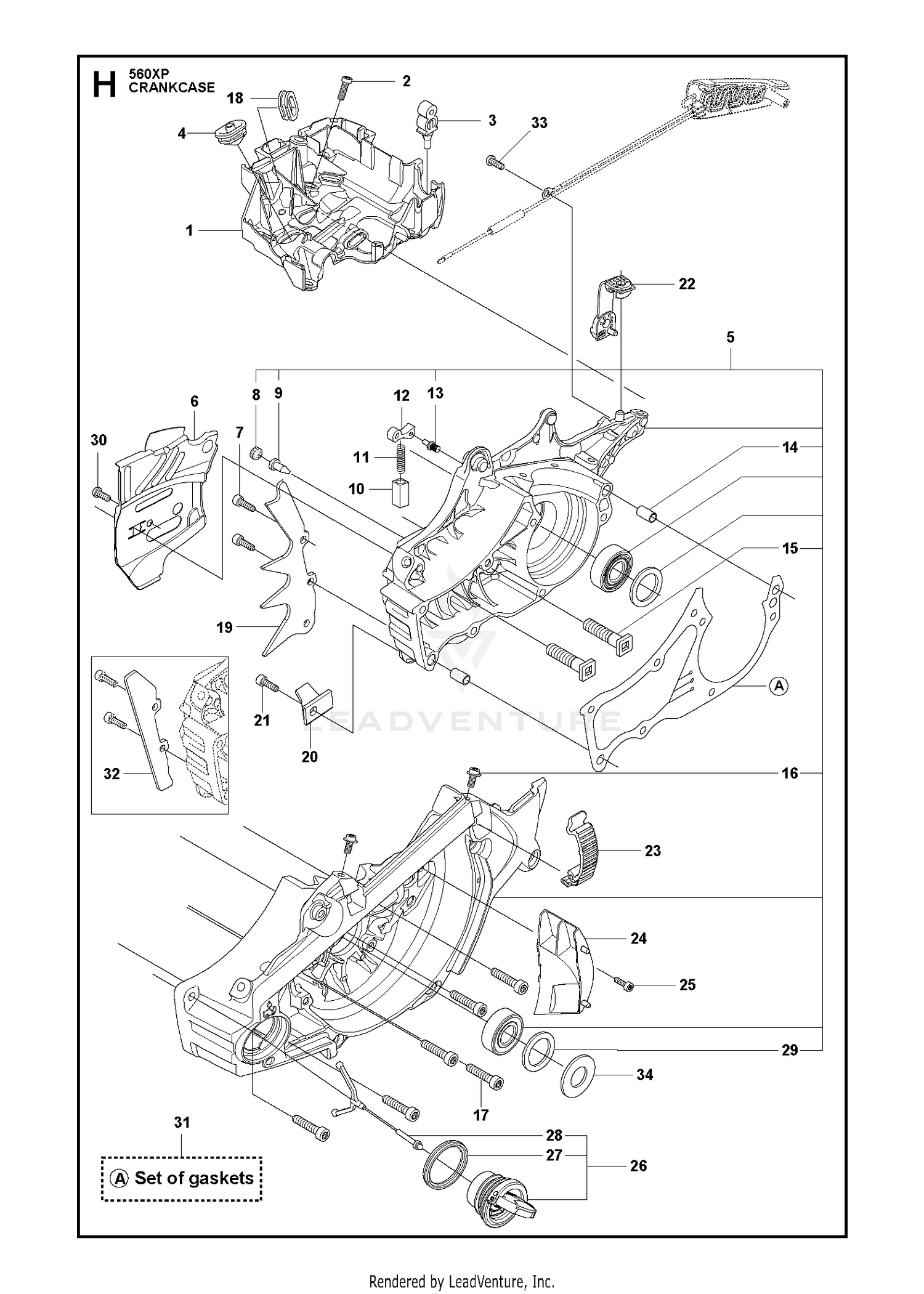

CRANKCASE
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 588193901 | Carburetor base Price: $4.99 |
| 2 | 525755202 | SCREW ITXSCFM Price: $3.99 |
| 3 | 597909701 | DAMPNER This part replaces 503869301. Price: $5.99 |
| 4 | 581559201 | GROMMET Price: $5.99 |
| 5 | 575380222 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 505201101 | CHAIN GUIDE PLATE Price: $9.99 |
| 7 | 575793501 | SCREW ITXPANM M5X16 T27 10.9 Price: $3.99 |
| 8 | 537403502 | SINTERED BRONZE FILTER This part replaces 537403501. Price: $2.99 |
| 9 | 530026119 | VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 10 | 537210701 | GUIDE Price: $3.99 |
| 11 | 503436501 | LOCK SPRING Price: $3.99 |
| 12 | 505201201 | CATCH Price: $4.99 |
| 13 | 503751801 | PIN Price: $3.99 |
| 14 | 593806001 | GUIDE BUSHING Price: $4.99 |
| 15 | 505217301 | BAR BOLT Price: $4.99 |
| 16 | 525824401 | SCREW ITXSCM WASHER M5X12 T27 Price: $2.99 |
| 17 | 575841104 | SCREW ITXSCM M5X25 12.9 TBO T Price: $2.99 |
| 18 | 537088301 | GROMMET Price: $4.99 |
| 19 | 577935201 | SPIKES Price: $9.99 |
| 20 | 537377902 | CHAIN CATCHER Price: $6.99 |
| 21 | 525798103 | SCREW Price: $2.99 |
| 22 | 505125801 | DEFLECTION LIMITER Price: $5.99 |
| 23 | 503894703 | CLIP GRAY Price: $9.99 |
| 24 | 588065501 | AIR NOZZLE Price: $5.99 |
| 25 | 526818101 | SCREW ITXSCM M4X15 T27 12.9 T Price: $2.99 |
| 26 | 522620003 | TANK CAP ASSY Price: $8.99 |
| 27 | 589241101 | SEALING Price: $4.99 |
| 28 | 503578901 | TANK LOCK Price: $4.99 |
| 30 | 503212813 | SCREW This part replaces 525887401. Price: $2.99 |
| 32 | 525347601 | BUMPER Price: $6.99 |
| 33 | 526221801 | SCREW Price: $2.99 |
