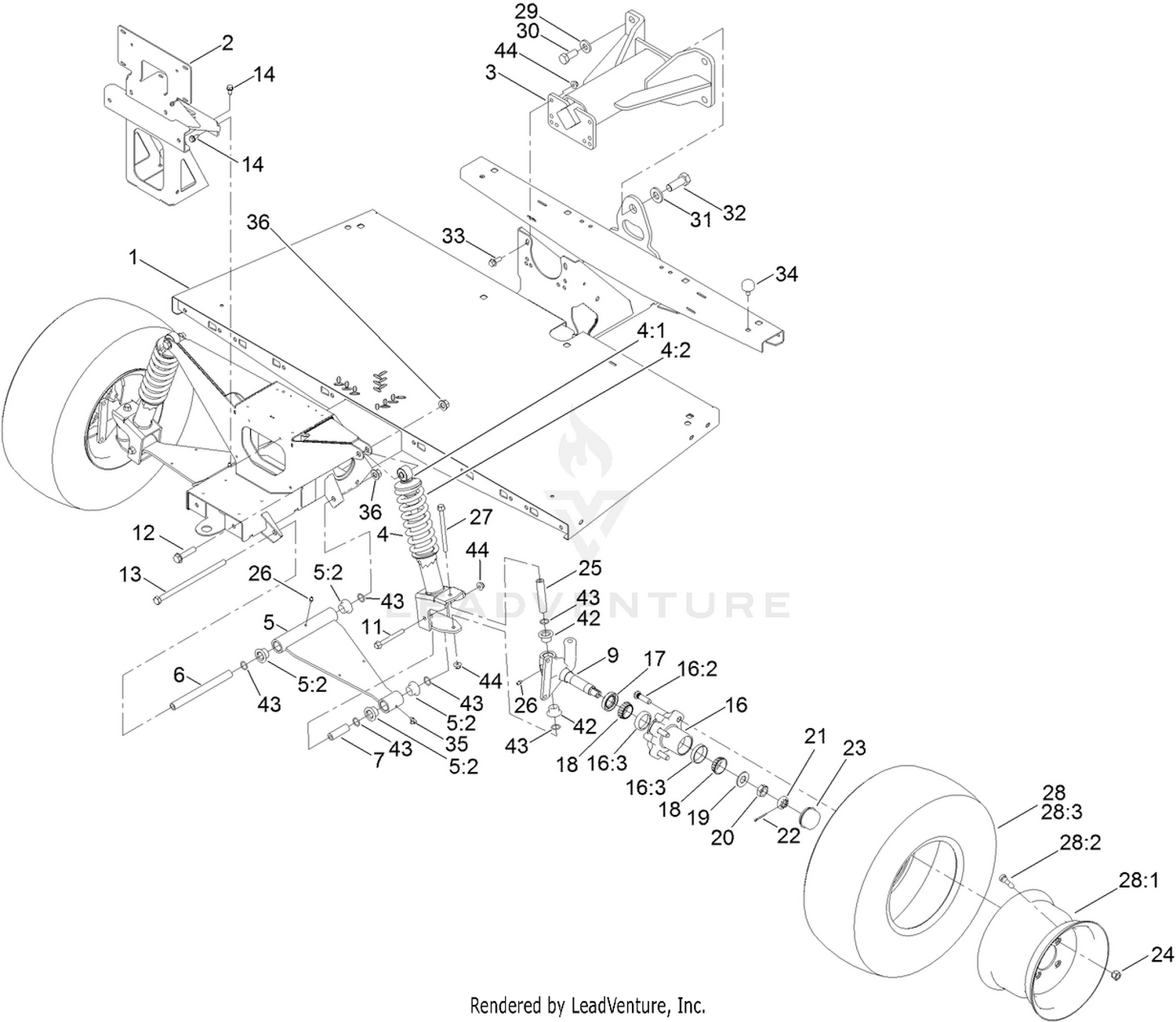

| Ref | Part Number | Description |
|---|
| 1 |
132-6735-03 |
FRAME-FRONT Price: $2,639.97 |
| 2 |
132-6736-03 |
SUPPORT-BUMPER Price: $218.04 |
| 3 |
99-7700 |
YOKE-PIVOT Price: $917.29 |
| 4 |
132-6791 |
STRUT ASM Price: $158.60 |
| 5 |
144-2160 |
CONTROL ARM ASM This part replaces 138-3583. Price: $70.87 |
| 6 |
133-0595 |
SLEEVE-CONTROL ARM, INNER Price: $12.83 |
| 7 |
131-8583 |
SLEEVE-CONTROL ARM, OUTER Price: $6.67 |
| 9 |
144-2162 |
SPINDLE ASM, LH This part replaces 127-8825-03. Price: $188.40 |
| 11 |
139-3370 |
SCREW-HF Price: $5.08 |
| 12 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 13 |
325-39 |
SCREW-HH Price: $16.99 |
| 14 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 16 |
127-8851 |
FRONT HUB ASM Price: $114.62 |
| 17 |
112-1690 |
SEAL-OIL Price: $12.15 |
| 18 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 19 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 20 |
3220-7 |
NUT-JAM Price: $4.09 |
| 21 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 22 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 24 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 25 |
131-8582 |
SLEEVE-KINGPIN Price: $15.03 |
| 26 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 27 |
139-3350 |
SCREW-HF Price: $4.63 |
| 28 |
133-0579 |
WHEEL AND TIRE ASM Price: $284.01 |
| 29 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 30 |
327-4 |
SCREW-HH Price: $2.20 |
| 31 |
87-3060 |
WASHER-HARDENED Price: $5.02 |
| 32 |
328-24 |
SCREW-HH Price: $23.99 |
| 33 |
131-2220 |
SCREW-HHF Price: $0.89 |
| 34 |
87-2440 |
BUMPER-RUBBER Price: $13.16 |
| 35 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 36 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 42 |
133-0643 |
BUSHING-FLANGE, O-RING Price: $4.31 |
| 43 |
237-54 |
O-RING Price: $1.97 |
