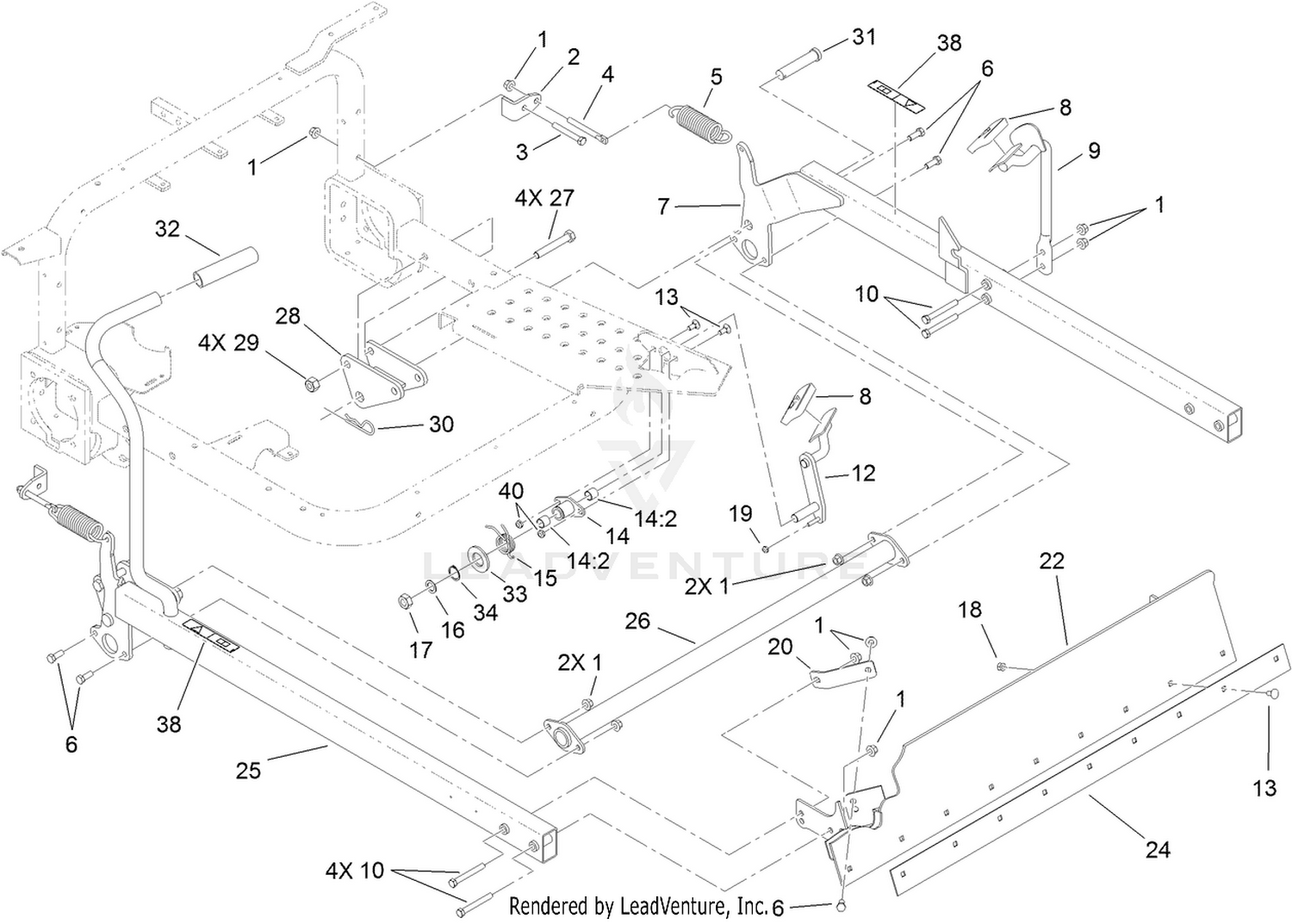

Manual Blade Assembly
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 2 | 108-5414 | BRACKET-SPRING Price: $35.14 |
| 3 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 4 | 108-5413 | ROD-SPRING Price: $35.69 |
| 5 | 108-5412 | SPRING-EXTENSION Price: $63.10 |
| 6 | 323-6 | SCREW-HH Price: $0.66 |
| 7 | 112-7157-03 | LH LIFT ARM ASM Price: $398.10 |
| 8 | 74-9100 | PAD-PEDAL, FORWARD Price: $27.08 |
| 9 | 108-5429-03 | FOOT PEDAL ASM Price: $203.45 |
| 10 | 323-14 | SCREW-HH Price: $1.34 |
| 12 | 108-5418-03 | LOCK LEVER ASM Price: $184.09 |
| 13 | 3230-1 | BOLT-CARR Price: $1.49 |
| 14 | 108-5421 | PLATE ASM Price: $115.66 |
| 15 | 108-5424 | SPRING-TORSION Price: $12.38 |
| 16 | 3256-69 | WASHER-FLAT Price: $0.62 |
| 17 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 18 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 19 | 3296-56 | NUT-LOCK, NI Price: $2.09 |
| 20 | 114-0644-03 | PLATE-BRACE Price: $18.81 |
| 22 | 115-5642-03 | BLADE ASM Price: $406.64 |
| 24 | 108-5406-03 | PLATE-WEAR Price: $61.60 |
| 25 | 112-7156-03 | RH LIFT ARM ASM Price: $398.10 |
| 26 | 108-5402-03 | TORSION TUBE ASM Price: $210.49 |
| 27 | 325-13 | SCREW-HH Price: $3.57 |
| 28 | 108-5427-03 | MOUNT ASM Price: $117.39 |
| 29 | 3296-25 | NUT-LOCK, NI Price: $1.34 |
| 30 | 3290-343 | PIN-HAIR Price: $0.76 |
| 31 | 108-2800 | PIN-CLEVIS Price: $29.09 |
| 32 | 104-9838 | GRIP-FOAM Price: $5.39 |
| 33 | 3256-62 | WASHER-FLAT Price: $0.75 |
| 34 | 32151-29 | RING-RETAINING Price: $3.59 |
| 38 | 93-9879 | DECAL-WARNING Price: $4.69 |
