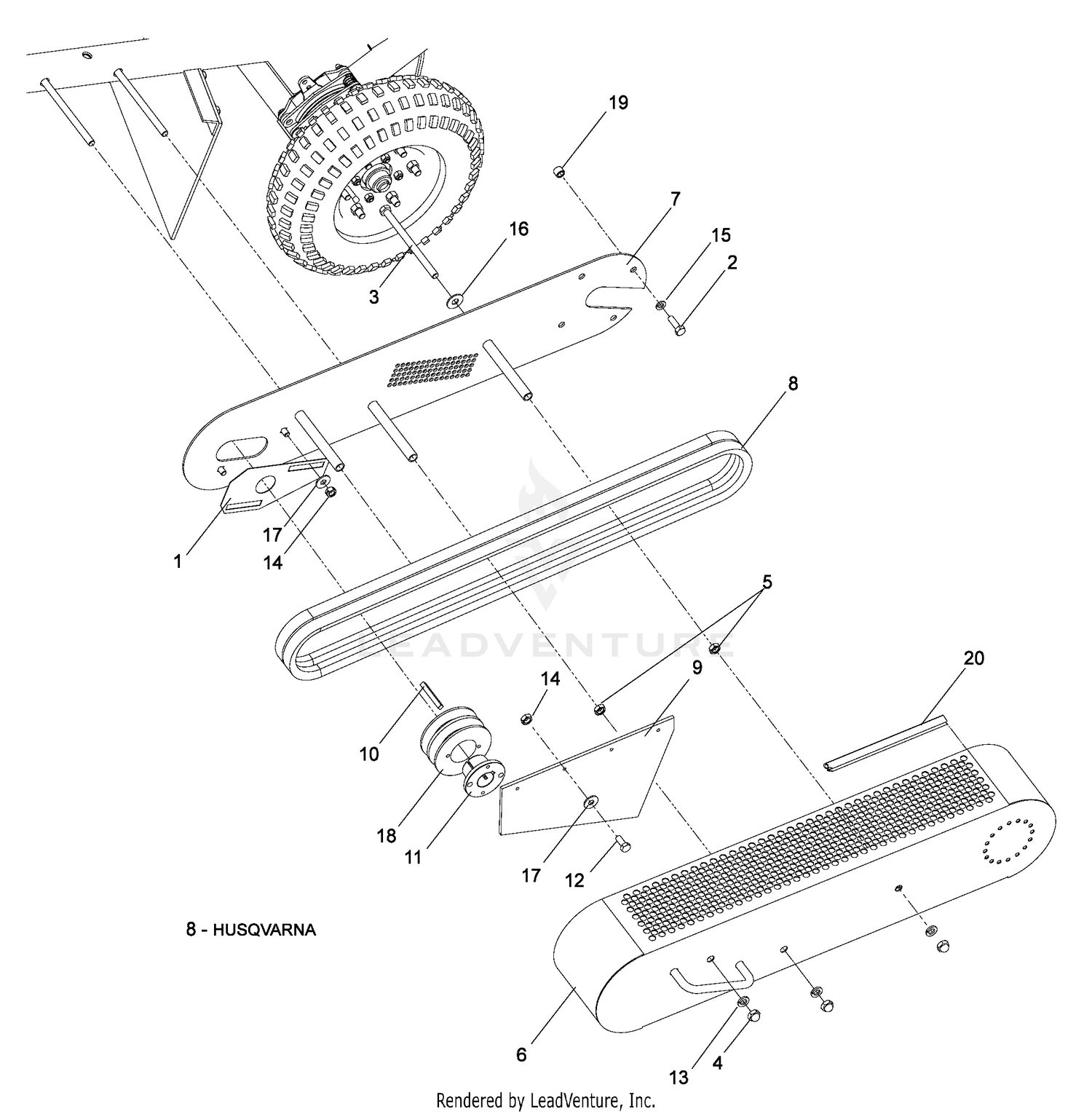

| Ref | Part Number | Description |
|---|
| 1 |
539108213 |
PLATE, COVER STUMPGRINDER Price: $19.99 |
| 1 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 2 |
539108398 |
BOLT, 5/16-24X1 GR5 HCS Price: $2.99 |
| 2 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 3 |
539108505 |
HCS 3/8-16 X 5-1/2 Price: $5.99 |
| 3 |
76-1910 |
DISCONTINUED Price: Call Us |
| 4 |
539108746 |
NUT 3/8-16 ACORN HEX Price: $2.99 |
| 4 |
92-6533 |
SEAT CUSHION KIT Price: $290.43 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 5 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 6 |
351-78 |
EDGING Price: $60.98 |
| 6 |
539112298 |
COVER, BELT W/TRIM Price: $379.00 |
| 7 |
540200350 |
BACK PLATE-ORANGE- BELT GUARD Price: $169.99 |
| 7 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 8 |
351-80 |
CLIP Price: $8.87 |
| 8 |
539200751 |
V-BELT-"B" SECT/SET OF 2 Price: $109.99 |
| 9 |
539020089 |
DEFLECTOR, NEOPRENE, LEFT SIDE Price: $32.99 |
| 9 |
76-2940 |
BUMPER Price: $9.73 |
| 10 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 10 |
539910210 |
KEY 1/4 SQ X 2 Price: $4.99 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 11 |
539923381 |
TAPER LOCK BUSHING Price: $29.99 |
| 12 |
322-3 |
SCREW-HH Price: $0.79 |
| 12 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 13 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 13 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 14 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 14 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 15 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 15 |
66-8610 |
DISCONTINUED Price: Call Us |
| 16 |
108-6702 |
ADJUSTER-SEAT, W/HANDLE This part replaces 66-8510. Price: $239.09 |
| 16 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 17 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 18 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 18 |
539111142 |
PULLEY TAPERLOCK 2V 3.55 OD Price: $179.99 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
539102827 |
SPACER Price: $4.99 |
| 20 |
3218-2 |
NUT-JAM Price: $0.25 |
| 21 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 22 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 23 |
32128-25 |
NUT-HF Price: $3.19 |
| 24 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 25 |
66-8600 |
FRAME-UPPER Price: $327.08 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 28 |
322-6 |
SCREW-HH Price: $0.45 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
93-3163 |
SPRING Price: $26.01 |
| 31 |
93-3164 |
CAP Price: $11.64 |
| 32 |
69-1180 |
ARMREST Price: $166.08 |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 34 |
323-9 |
SCREW-HH Price: $1.29 |
| 35 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 36 |
69-0770 |
BRACKET-ARM, RH Price: $117.82 |
