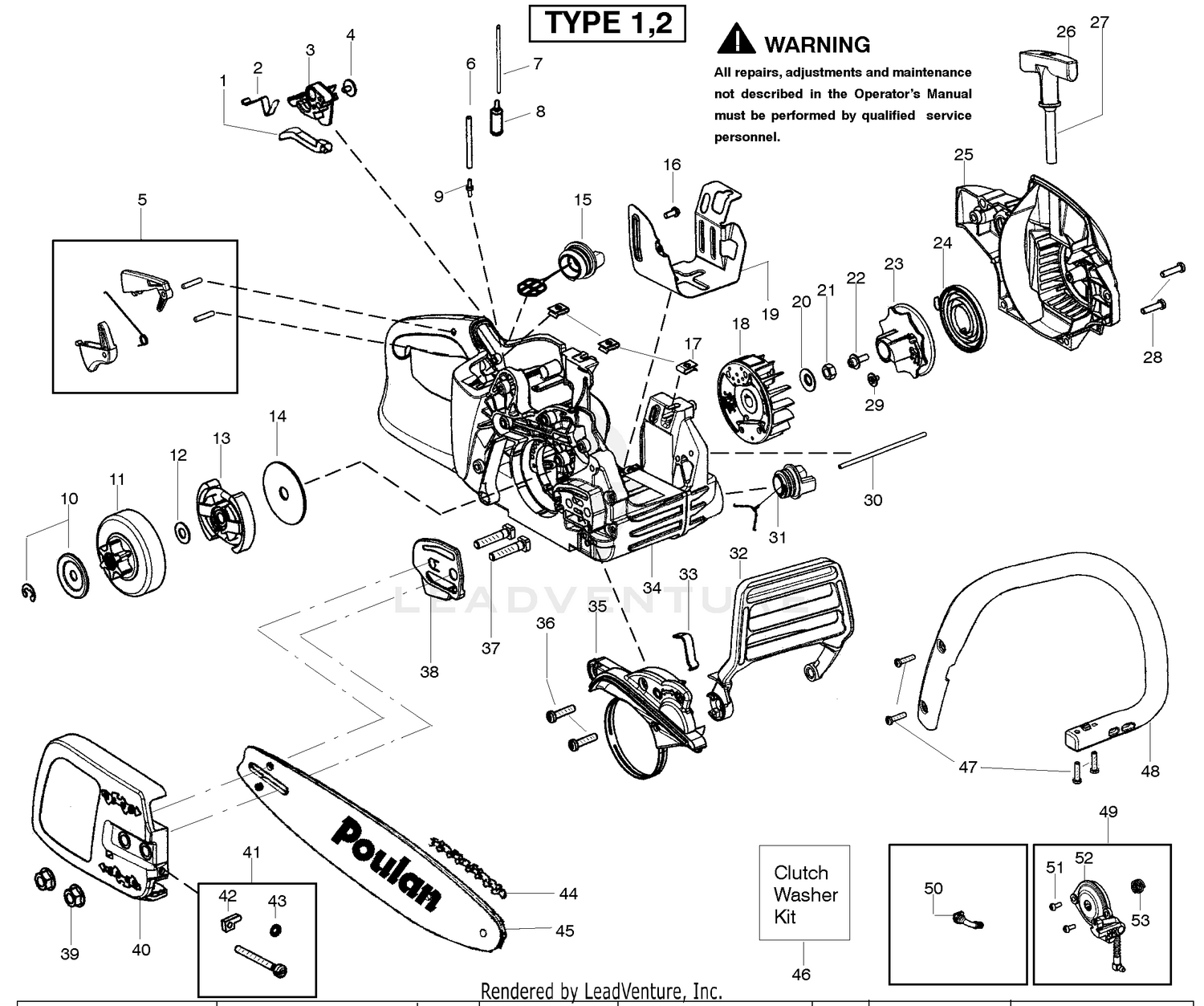

| Ref | Part Number | Description |
|---|
| 1 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 1 |
530057893 |
Knob-Choke Price: $3.99 |
| 2 |
530057908 |
Spring-Ign. Switch Price: $2.99 |
| 2 |
98-4517 |
AIR CLEANER ASM Price: $272.15 |
| 3 |
530057891 |
Lever-Ign. Switch Price: $4.99 |
| 3 |
93-6692 |
DISCONTINUED Price: Call Us |
| 4 |
48-7430 |
PRECLEANER Price: $50.85 |
| 4 |
530016080 |
Screw Price: $1.99 |
| 5 |
530071888 |
Kit-Trigger/Lockout Price: $6.99 |
| 5 |
98-4578-03 |
BRACKET-FILTER, FUEL Price: $35.38 |
| 6 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 6 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 7 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 7 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 8 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 8 |
530095646 |
Assy-Fuel Pick-up This part replaces 530095649. Price: $2.69 |
| 9 |
32128-33 |
NUT-HF Price: $0.25 |
| 9 |
530023877 |
Fitting-Fuel line Price: $1.99 |
| 10 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 10 |
98-4525 |
BRACKET-CLEANER, AIR Price: $52.87 |
| 11 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
530057905 |
Assy-Clutch Drum 3/8" Price: $13.99 |
| 12 |
145-2823 |
BATTERY - CORROSIVE This part replaces 106-5187. Price: $195.94 |
| 12 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 13 |
104-0086 |
CABLE-BATTERY, POSITIVE Price: $78.07 |
| 13 |
530057907 |
Assy-Clutch Price: $6.99 |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 14 |
530016419 |
Washer-Large Clutch Price: $1.99 |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
577858501 |
FUEL CAP ASSY W/RET This part replaces 530047192. Price: $4.99 |
| 16 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 16 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 17 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 17 |
530015922 |
Nut-"U" type speed Price: $1.99 |
| 18 |
530057937 |
Assy-Flywheel Price: $22.99 |
| 18 |
94-7343 |
BASE-BATTERY Price: $118.61 |
| 19 |
530057911 |
Shield-Heat Price: $2.99 |
| 20 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 20 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 21 |
32128-20 |
NUT-HF Price: $0.99 |
| 21 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 22 |
98-4576-03 |
BRACKET-RESERVOIR, WATER Price: $43.21 |
| 23 |
321-5 |
SCREW-HH Price: $0.22 |
| 24 |
545008013 |
Kit-Starter Spring This part replaces 530042095. Price: $3.49 |
| 24 |
93-9164 |
INDICATOR-MINI Price: $55.24 |
| 25 |
530058810 |
Housing-Fan Price: $11.99 |
| 25 |
98-4518-03 |
BRACKET-CLEANER, AIR Price: $75.61 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 26 |
530056402 |
Handle-Starter Price: $2.99 |
| 27 |
530069232 |
Kit-Rope Price: $3.99 |
| 27 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 28 |
530016432 |
Screw Price: $1.99 |
| 28 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 29 |
530016080 |
Screw Price: $1.99 |
| 29 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 30 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 30 |
530058786 |
Assy-Oil Vent Price: $2.99 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
530057236 |
Assy-Oil Cap w/ret. Price: $5.99 |
| 32 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 32 |
530057897 |
Handguard Price: $7.99 |
| 33 |
530016416 |
Spring-Handguard Price: $1.99 |
| 33 |
98-4509 |
HOSE-CLEANER, AIR Price: $97.00 |
| 34 |
98-9305 |
WATER / FUEL FILTER ASM Price: $116.51 |
| 35 |
353-783 |
FITTING-STR Price: $29.05 |
| 35 |
530071893 |
Kit-Chainbrake Price: $17.99 |
| 36 |
322-6 |
SCREW-HH Price: $0.45 |
| 36 |
530016432 |
Screw Price: $1.99 |
| 37 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 37 |
530016133 |
Bolt-Bar Price: $1.99 |
| 38 |
110-4107 |
HOSE-FUEL This part replaces 63-7622. Price: $7.77 |
| 38 |
530057910 |
Plate-Bar Price: $1.99 |
| 39 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 39 |
530015917 |
Nut-Bar Price: $0.99 |
| 42 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 43 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 44 |
952051209 |
Accy-14" Chain Price: Call Us |
| 45 |
952044368 |
Accy-14" Bar Price: Call Us |
| 47 |
530016432 |
Screw Price: $1.99 |
| 48 |
530057888 |
Handle-Front Price: $14.99 |
| 50 |
530057924 |
Assy-Oil Pick Up Price: $2.99 |
| 51 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 52 |
530057931 |
Assy-Oil Pump Price: $10.99 |
