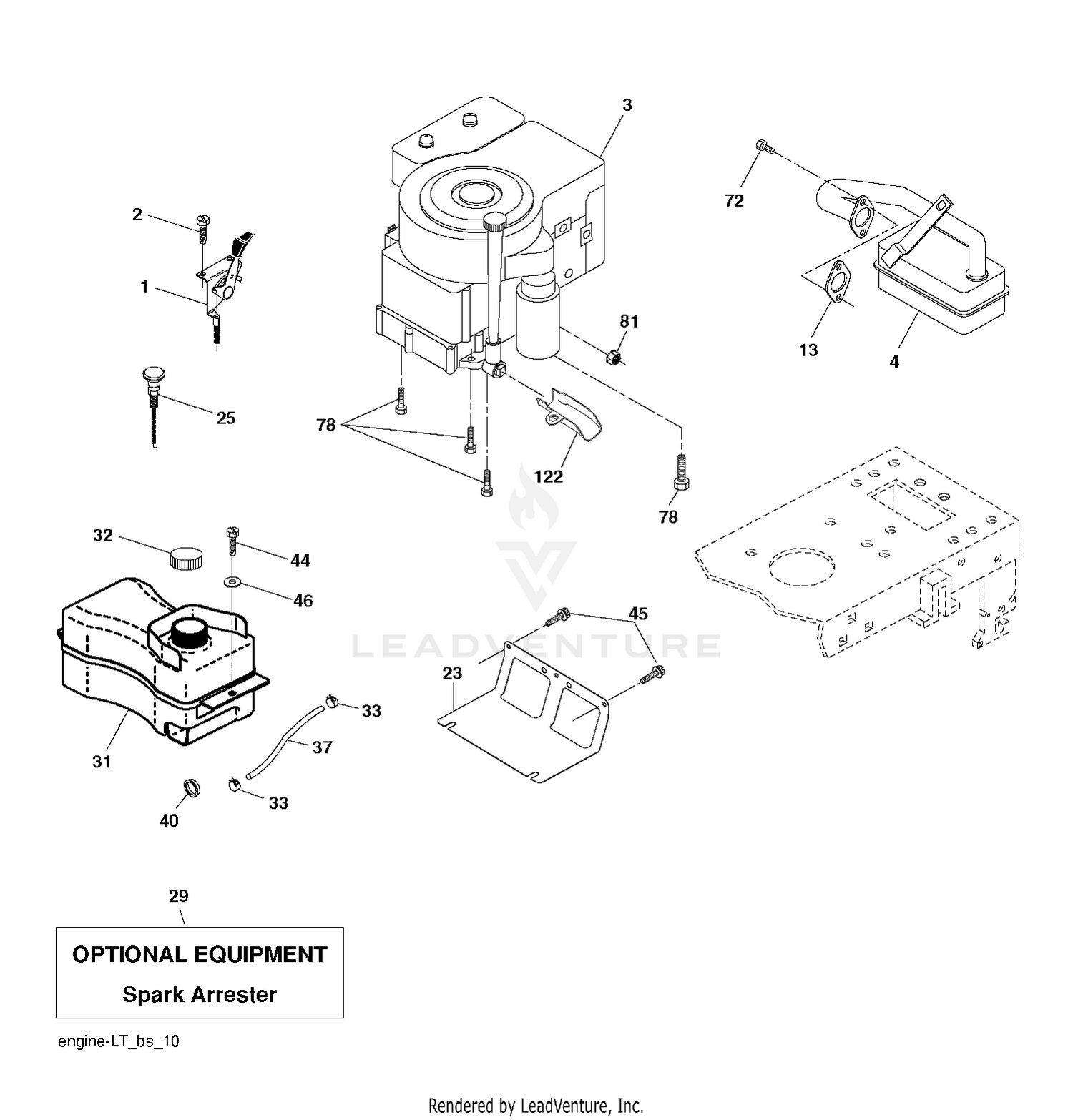

| Ref | Part Number | Description |
|---|
| 1 |
112-7022 |
STARTER ASM This part replaces 104-8609. Price: $502.27 |
| 1 |
532170551 |
CONTROL TH/CH FLAG Price: $22.99 |
| 2 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 4 |
532179758 |
MUFFLER Price: $70.99 |
| 13 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 23 |
532169837 |
SHEILD.BROWNING.DBR.GUARD Price: $7.99 |
| 25 |
532190695 |
Price: $2.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 31 |
532430828 |
TANK ASM.FRONT.1.25GA Price: $50.99 |
| 32 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 40 |
532124028 |
GROMMET T Price: $3.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 46 |
819091416 |
WASHER Price: $3.99 |
| 72 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 81 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 101 |
104-8610 |
FRONT BRACKET ASM Price: $161.50 |
| 102 |
104-8611 |
BEARING SET Price: $63.24 |
| 103 |
104-8612 |
CLUTCH SHAFT ASM Price: $875.79 |
| 104 |
104-8613 |
GEAR SHAFT ASM Price: $727.54 |
| 105 |
104-8614 |
WASHER SET Price: $13.09 |
| 106 |
104-8615 |
INTERNAL GEAR ASM Price: $236.86 |
| 107 |
104-8616 |
CLUTCH-RUNNING, OVER Price: $215.16 |
| 108 |
104-8617 |
GEAR ASM Price: $81.43 |
| 109 |
104-8618 |
LEVER ASM Price: $81.96 |
| 110 |
104-8619 |
PINION SET Price: $50.61 |
| 111 |
51-7740 |
STOPPER SET Price: $15.31 |
| 112 |
104-8620 |
SWITCH ASM Price: $493.81 |
| 113 |
104-8621 |
SCREW SET Price: $4.99 |
| 114 |
104-8622 |
BALL Price: $2.29 |
| 115 |
104-8623 |
PACKING SET Price: $32.37 |
| 116 |
104-8624 |
ARMATURE SET Price: $1,149.96 |
| 117 |
107-4398 |
BEARING Price: $45.79 |
| 118 |
104-8625 |
YOKE ASM Price: $584.47 |
| 119 |
104-8626 |
BRUSH HOLDER ASM Price: $107.39 |
| 120 |
104-8627 |
SPRING-BRUSH Price: $6.17 |
| 121 |
104-8628 |
REAR BRACKET ASM Price: $62.49 |
| 122 |
93-3687 |
BOLT SET Price: $9.64 |
