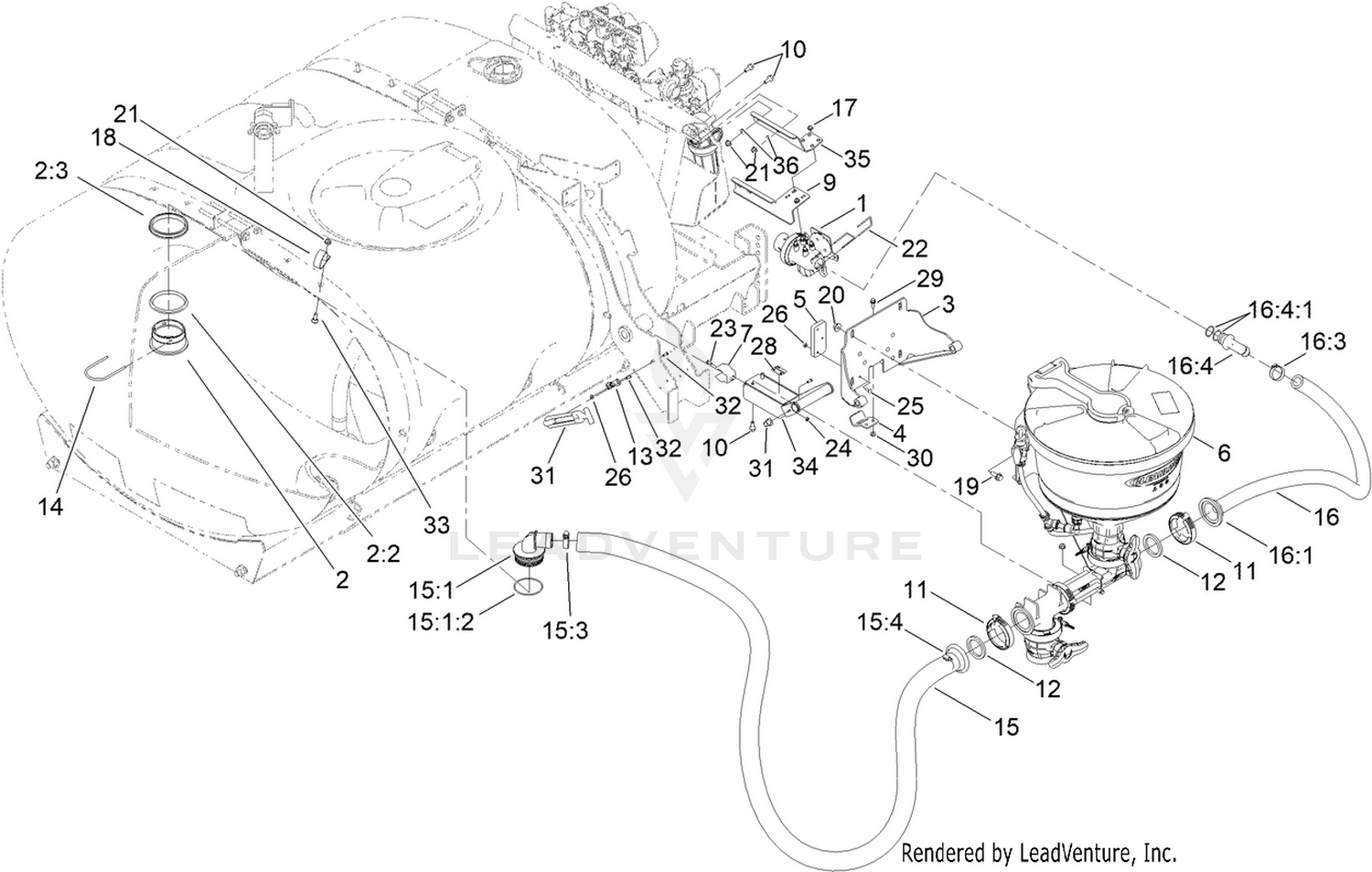

Eductor Assembly — Parts Catalog

Ref	Part Number	Description
1	130-7324	EDUCTOR VALVE ASM Price: $720.34
2	117-7851	BULKHEAD ASM Price: $108.56
3	119-4912-03	PLATE-PIVOT Price: $150.18
4	119-4928	BRACKET-LATCH Price: $15.02
5	119-4963	PAD-WEAR Price: $42.68
6	127-2949	EDUCTOR ASM Price: $2,558.78
7	119-4937	CLIP-SPRING Price: $21.31
9	131-3725-03	MOUNT-VALVE, EDUCTOR Price: $37.15
10	3234-47	SCREW-HHF Price: $1.79
11	127-5005	CLAMP-WORM SCREW Price: $10.92
12	127-5004	GASKET Price: $3.39
13	125-5892-03	TAB-EXTENSION Price: $18.49
14	117-7996	FORK Price: $9.74
15	130-8278	EDUCTOR HOSE ASM Price: $150.31
16	131-5823	SUPPLY HOSE ASM Price: $232.69
17	119-6897	NUT-FLANGE, HEX Price: $0.82
18	2412-96	CLAMP-R Price: $3.46
19	3234-11	SCREW-HHF Price: $1.23
20	32128-43	NUT-FLANGE Price: $0.94
21	104-8300	NUT-HF, NI Price: $0.39
22	131-0235	FORK-FITTING, EDUCTOR VALVE Price: $2.77
23	3250-12	SCREW-PPH Price: $0.25
24	3296-2	NUT-LOCK, NI Price: $1.89
25	1-807533	BOLT-CARR Price: $0.99
26	3296-12	NUT-LOCK, NI Price: $1.29
28	119-4988	DECAL-LOCK Price: $24.30
29	3234-4	SCREW-HHF Price: $0.50
30	32128-33	NUT-HF Price: $0.25
31	115-8215	DRAW LATCH ASM Price: $63.51
32	115-9830	SCREW-HSBH Price: $0.42
33	3230-2	BOLT-CARR Price: $0.47
34	127-5000-03	HANDLE-EDUCTOR Price: $100.95
35	163-7129-03	VALVE MOUNT - EDUCTOR Price: Call Us
