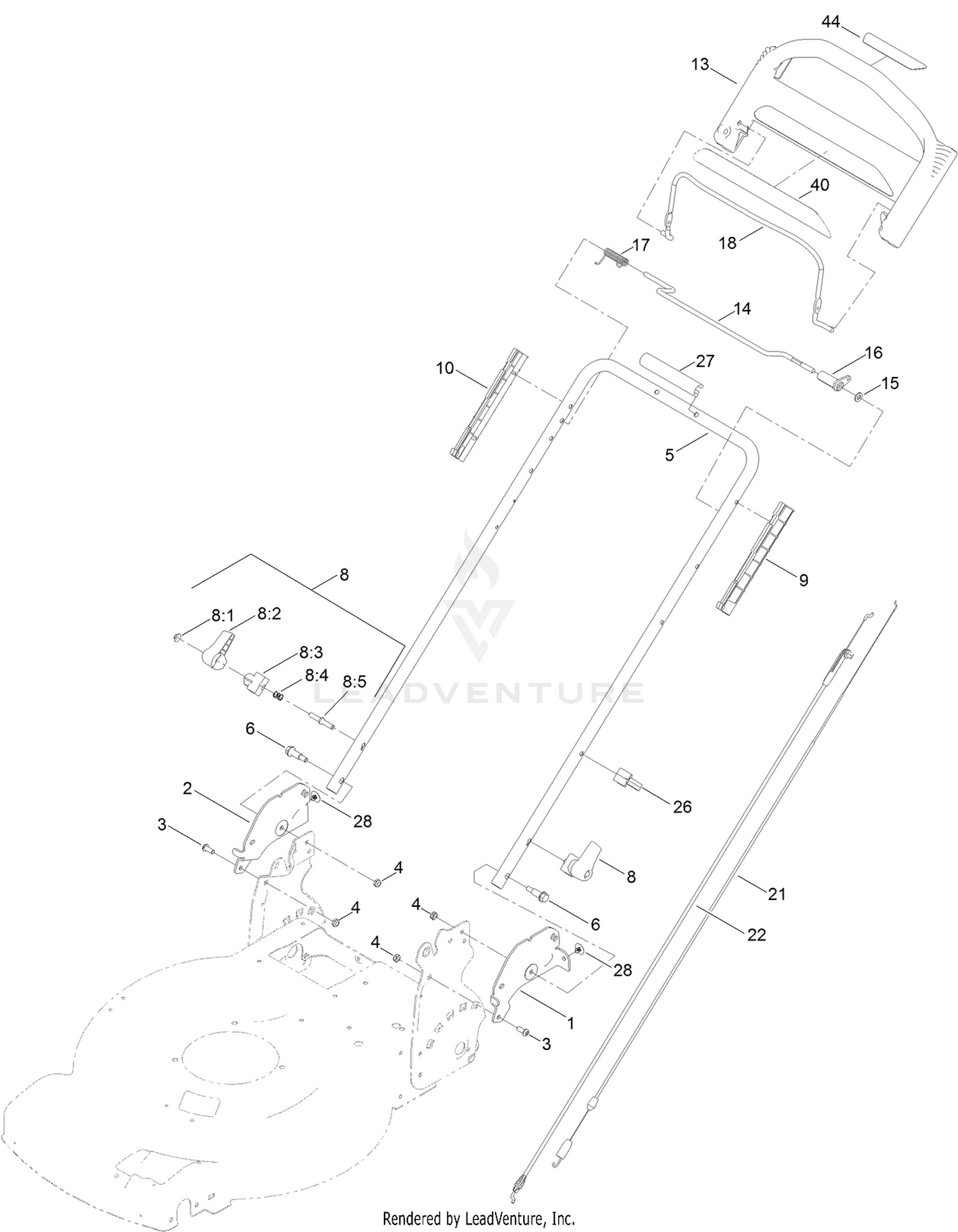

Handle Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-9109-03 | PLATE-HANDLE, LH Price: $8.62 |
| 2 | 137-9110-03 | PLATE-HANDLE, RH Price: $8.62 |
| 3 | 3274-55 | SCREW-HSBH Price: $3.19 |
| 4 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 5 | 132-4471-05 | HANDLE Price: $39.96 |
| 6 | 130-2344 | BOLT-SHOULDER Price: $1.88 |
| 8 | 138-3249 | QUICK RELEASE ASM This part replaces 115-2860. Price: $7.22 |
| 9 | 105-6842 | GUIDE-LH Price: $5.65 |
| 10 | 105-6841 | GUIDE-RH Price: $5.65 |
| 13 | 104-8678 | HANDLE-CONTROL Price: $53.94 |
| 14 | 136-7150 | BAR-CONTROL, TRACTION Price: $10.75 |
| 15 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 16 | 99-1589 | LEVER-TRACTION Price: $4.81 |
| 17 | 136-7166 | SPRING-TORSION Price: $2.17 |
| 18 | 131-0880-03 | BAIL-BRAKE Price: $10.21 |
| 21 | 115-8435 | CABLE-TRACTION Price: $22.47 |
| 22 | 115-8437 | CABLE-BRAKE Price: $23.13 |
| 26 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 27 | 131-4551 | COVER-HANDLE Price: $0.95 |
| 28 | 130-6721 | CLIP-TREE Price: $0.43 |
| 40 | 117-1019 | DECAL Price: $5.65 |
